OG5114

Diffuse reflection sensor

OGT-FPKG/V4A/US-100

{{'OPTIONAL_INFO' | productAvailability | error}}

Dear customer,
Unfortunately, this data sheet is not available in the requested language. If you have any further questions, you can contact us by e-mail.

Best regards
Your ifm team

Download
Technische Details
Product characteristics
Type of light infrared light
Housing threaded type
Dimensions [mm] M18 x 1 / L = 70.5
Application
Function principle Diffuse reflection sensor
Electrical data
Operating voltage [V] 10...36 DC
Current consumption [mA] < 32
Protection class II
Reverse polarity protection yes
Type of light infrared light
Wave length [nm] 880
Outputs
Electrical design PNP
Output function light-on/dark-on mode; (parameterisable)
Max. voltage drop switching output DC [V] 2.5
Function check output yes
Max. voltage drop of function check output [V] 3.5
Max. current load for function check output [mA] 10
Permanent current rating of switching output DC [mA] 200
Switching frequency DC [Hz] 500
Short-circuit protection yes
Type of short-circuit protection pulsed
Overload protection yes
Detection zone
Range [mm] < 600; (white paper 200 x 200 mm)
Range adjustable yes
Max. light spot diameter [mm] 169
Light spot dimensions refer to at maximum range
Operating conditions
Ambient temperature [°C] -25...80
Protection IP 68; IP 69K
Tests / approvals
EMC
EN 60947-5-2
EN 55011 class B
MTTF [years] 466
Mechanical data
Housing threaded type
Dimensions [mm] M18 x 1 / L = 70.5
Thread designation M18 x 1
Materials stainless steel (1.4404 / 316L); PBT
Lens material
PMMA
Displays / operating elements
Display
switching status 1 x LED, yellow
operation 1 x LED, green
function 1 x LED, red
Accessories
Accessories (supplied)
lock nuts: 2 x
Remarks
Pack quantity 1 pcs.
Electrical connection
Connection Connector: 1 x M12; Contacts: gold-plated
Diagrams and graphs

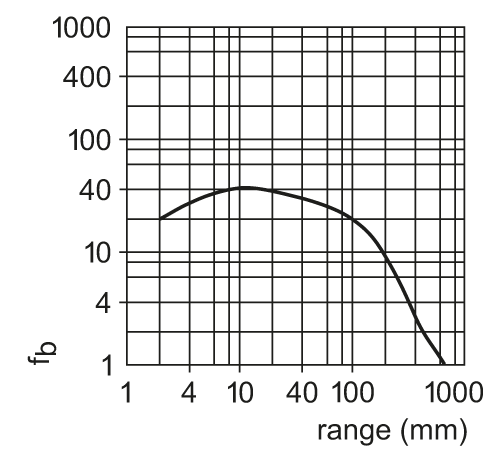

excess gain graph
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — OG5114-00 — 06.03.2003 —
