Measurement of glycol media- max. 35%

Notes:	Very well suitable	Well suitable	Suitable	Not suitable		Available	Not available
	Suitable to some extent - please contact the Service Center at +371 62 802 777 in this case.

	Magnetic-inductive	Ultrasonic	Mechatronic	Calorimetric immersion sensors
	Product details	Product details	Product details	Product details
Measuring principle	Magnetic-inductive	Ultrasonic	Mechatronic	Calorimetric
Accuracy
Pressure loss
Detection of direction
Quantity meter (totaliser)
Media
Non-conductive media
Chemical liquids of low concentration, e.g. sodium hydroxide solution < 5%
Resistant to
Temperature fluctuations
Viscosity changes
Air content
Particles
Pressure peaks
Deposits
Vibrations
Installation
No inlet pipe length required

Magnetic-inductive	Special features

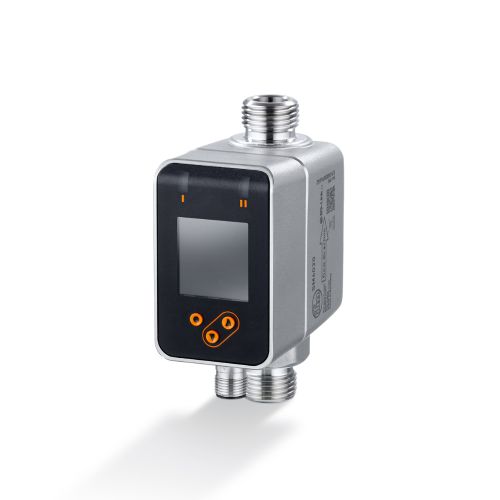

Measuring principle Magnetic-inductive Product series SM series Nominal width (DNxx) DN6...DN50 Measuring range 0.005...900l/min Accuracy ± (0.8% MV + 0.2% VMR) Medium temperature -20...90°C Pressure rating 16 bar	Requirement Conductivity > 20µS/cm Industries Food industry Automotive industry Robotics and automation Mobile machines Water and wastewater Ship automation Highlights No inlet and outlet pipe lengths required Low pressure loss Setting aid with full text display Detection/ measurement of the flow direction Operating status LED Process values Measurement of the total quantity/ totaliser Flow Temperature Device status/ diagnostics

Magnetic-inductive

Special features

Measuring principle

Magnetic-inductive

Product series

SM series

Nominal width (DNxx)

DN6...DN50

Measuring range

0.005...900l/min

Accuracy

± (0.8% MV + 0.2% VMR)

Medium temperature

-20...90°C

Pressure rating

16 bar

Requirement

Conductivity > 20µS/cm

Industries

Food industry
Automotive industry
Robotics and automation
Mobile machines
Water and wastewater
Ship automation

Highlights

No inlet and outlet pipe lengths required
Low pressure loss
Setting aid with full text display
Detection/ measurement of the flow direction
Operating status LED

Process values

Measurement of the total quantity/ totaliser
Flow
Temperature
Device status/ diagnostics

Ultrasonic	Special features
Measuring principle Ultrasonic Product series SU series Nominal width (DNxx) DN15...DN50 Measuring range 0.5...1000l/min Accuracy ± (1 % MV + 0.5 % VMR) Medium temperature -20…100 °C Pressure rating 100 bar	Requirement: No change in viscosity Inlet and outlet pipe lengths must be taken into account Industries Food industry Automotive industry Robotics and automation mobile machines Water and wastewater Highlights Continuous stainless steel pipe without internal interfering bodies, moving components or seals Acyclic output of signal strength as an indicator for application changes guided set-up, Low pressure loss Operating status LED Process values Measurement of the total quantity/ totaliser Flow Temperature Device status/ diagnostics

Ultrasonic

Special features

Measuring principle

Ultrasonic

Product series

SU series

Nominal width (DNxx)

DN15...DN50

Measuring range

0.5...1000l/min

Accuracy

± (1 % MV + 0.5 % VMR)

Medium temperature

-20…100 °C

Pressure rating

100 bar

Requirement:

No change in viscosity
Inlet and outlet pipe lengths must be taken into account

Industries

Food industry
Automotive industry
Robotics and automation
mobile machines
Water and wastewater

Highlights

Continuous stainless steel pipe without internal
interfering bodies, moving components or seals
Acyclic output of signal strength as an indicator
for application changes
guided set-up,
Low pressure loss
Operating status LED

Process values

Measurement of the total quantity/ totaliser
Flow
Temperature
Device status/ diagnostics

Mechatronic	Special features
Measuring principle Mechatronic Product series SB series Nominal diameter DN15...DN40 Measuring range 0.2...200l/min Accuracy ± (4% MV + 1% VMR) Medium temperature -10...180°C Pressure rating Up to 200 bar	Requirement No particles > 200µm in the medium No strong magnetic fields in the immediate vicinity Industries Automotive industry Robotics and automation Mobile machines Packaging industry Highlights No inlet and outlet pipe lengths Fastest response time > 1ms Temperature resistant up to 180°C Pressure rating of 200 bar Temperature/ viscosity compensation for oil Process values Flow Temperature Device status/ diagnostics

Mechatronic

Special features

Measuring principle

Mechatronic

Product series

SB series

Nominal diameter

DN15...DN40

Measuring range

0.2...200l/min

Accuracy

± (4% MV + 1% VMR)

Medium temperature

-10...180°C

Pressure rating

Up to 200 bar

Requirement

No particles > 200µm in the medium
No strong magnetic fields in the immediate vicinity

Industries

Automotive industry
Robotics and automation
Mobile machines
Packaging industry

Highlights

No inlet and outlet pipe lengths
Fastest response time > 1ms
Temperature resistant up to 180°C
Pressure rating of 200 bar
Temperature/ viscosity compensation for oil

Process values

Flow
Temperature
Device status/ diagnostics

Calorimetric immersion sensors

Special features

Measuring principle

Calorimetric

Product series

SI, SA and SF series

Nominal diameter

Independent of DN

Measuring range

Liquid 0.04...3m/s
Gas 0.6...100m/s

Accuracy

Liquid ± (7% MV + 2% VMR)
Gas ± (10% MV + 2% VMR)

Medium temperature

-20...90°C

Pressure rating

Up to 300 bar

Requirement

Inlet and outlet pipe lengths must be taken into account
Thermally conductive medium
Avoid rapid temperature changes

Industries

Automotive industry
Robotics and automation
Water industry
Ship automation
Food industry

Highlights

Independent of nominal pipe diameters
Diverse material selection for components in contact with the medium
Easy set-up

Process values

Point flow velocity
Temperature
Device status/ diagnostics
Calculated flow

Measurement of glycol media- max. 35%
