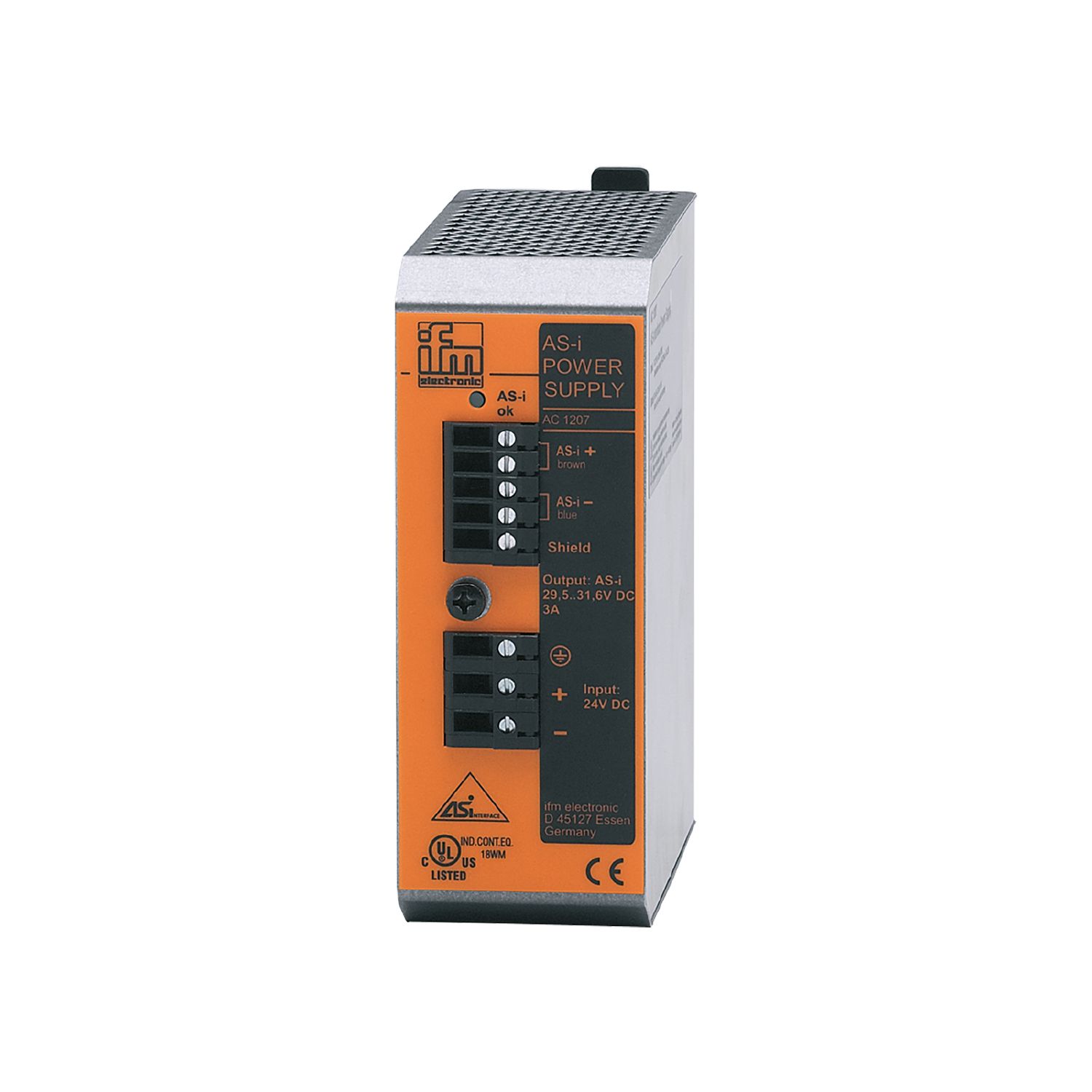

AS-Interface power supply
AC1207
PowerSupply 24VDC 2,8A
AS-Interface power supply
AC1207
PowerSupply 24VDC 2,8A
Article no longer available - archive entry
Alternative articles: AC1257 Product comparison: AC1207 / AC1257 When selecting an alternative article and accessories please note that technical data may differ!
Electrical data
Nominal voltage DC [V] | 24 |
---|---|
Input voltage DC [V] | 18...32 |
Max. power-on delay time [ms] | 42 |
Output voltage AS-i [V] | 29.5...31.6; (to PELV) |
Number of output circuits | 1 |
Output current AS-i [A] | 2.8 |
Max. residual ripple [mV] | 50 |
Efficiency (nominal voltage 24 V DC) [%] | 88 |
External input protection | > 10 A |
Fuse [A] | 10; (built in) |
Derating [W/K] | 1 (60...70 °C) |
Mains buffering time (nominal voltage 24 V DC) [ms] | 10 |
Integrated data decoupling | yes |
Outputs
Short-circuit protection | yes |
---|---|
Overload protection | yes |
Parallel connection of outputs possible | no |
Series connection of outputs possible | no |
Operating conditions
Ambient temperature [°C] | -10...60 |
---|---|
Protection | IP 20 |
Tests / approvals
EMC |
|
---|
Mechanical data
Weight [g] | 645 |
---|---|
Materials | aluminium |
Displays / operating elements
Display |
|
---|
Remarks
Pack quantity | 1 pcs. |
---|
Electrical connection
Connection | terminals: ...2.5 mm² |
---|
