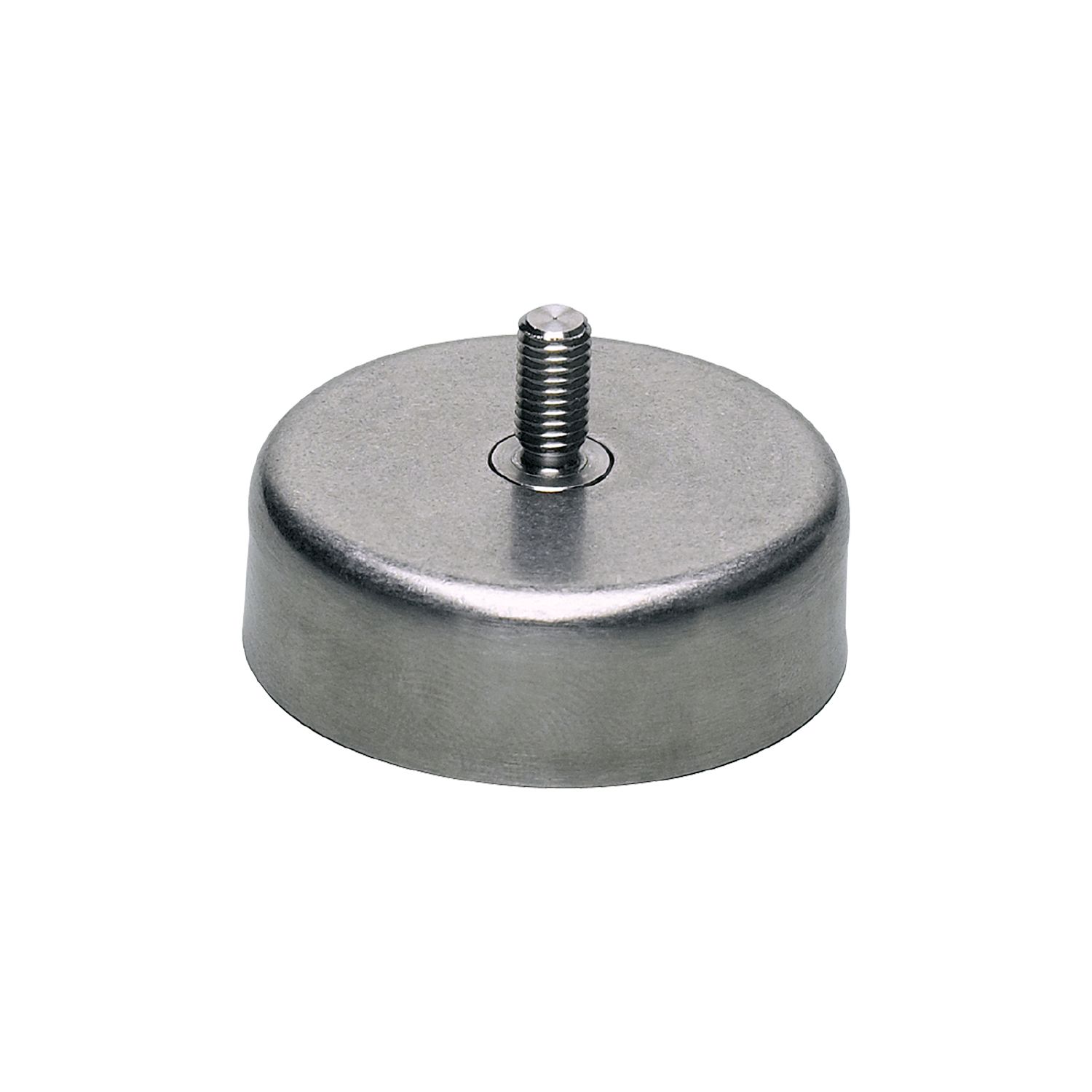

Damping magnet

E11803

MAGNET M4.1/HARD F.STAINLESS

Damping magnet

E11803

MAGNET M4.1/HARD F.STAINLESS

  • For ensuring a long sensing range
  • For use in combination with magnetic sensors
  • hidden installation behind aluminium or stainless steel is possible
  • Wide operating temperature range
{{ifmVariantName}}



Technical details
Operating conditions
Ambient temperature [°C] -25...250
Mechanical data
Weight [g] 79.8
Dimensions [mm] Ø 40 / L = 13
Materials hard ferrite HF 24/23; stainless steel (1.4571/316Ti )
Magnetic field strength [mT] 80
Remarks
Pack quantity 1 pcs.
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E11803-01 — 10.01.2020 —
