Diagnostic electronics for vibration sensors

DIAGNOSTIC ELECTRONICS

VSE002

{{'OPTIONAL_INFO' | productAvailability | error}}

Dear customer,
Unfortunately, this data sheet is not available in the requested language. If you have any further questions, you can contact us by e-mail.

Best regards
Your ifm team

  • For the reliable vibration monitoring of machines and equipment
  • Condition-based maintenance thanks to monitoring of unbalance, rolling element bearing or gear state
  • Inputs for the simultaneous detection of up to four vibration sensors
  • Two switching outputs for pre-alarm and main alarm
  • Analogue inputs for monitoring further measurement variables
  • ce
  • cul
Download
Technische Details
Application
Design parameter setting via PC software VES004
Application counter function
Electrical data
Operating voltage tolerance [%] 20
Operating voltage [V] 24 DC; (when using the IEPE input: 24 V + 20%; IEPE = Integrated Electronics Piezo Electric)
Current consumption [mA] 200; (24 V)
Protection class III
Inputs / outputs
Total number of inputs and outputs 8; (configurable)
Number of inputs and outputs Number of analogue inputs: 2; Number of digital outputs: 1; Number of analogue outputs: 1
Inputs
Number of analogue inputs 2
Resolution of analogue input 12
Dynamic input - sampling rate [kSamples] 100
Outputs
Output signal switching signal; analogue signal
Number of digital outputs 1
Output function normally open / normally closed; (parameterisable)
Max. voltage drop switching output DC [V] 2
Permanent current rating of switching output DC [mA] 100
Number of analogue outputs 1
Analogue current output [mA] 4...20
Max. load [Ω] 500
Short-circuit protection yes
Type of short-circuit protection pulsed
Overload protection yes
Measuring/setting range
Frequency range [Hz] 0...12000
Interfaces
Communication interface Ethernet
Protocol TCP/IP
Operating conditions
Ambient temperature [°C] 0...70
Storage temperature [°C] 0...70
Protection IP 20
Tests / approvals
EMC
EN 61000-6-2
EN 61000-6-3
EN 50178
MTTF [years] 101
Mechanical data
Weight [g] 230
Housing plastic housing
Type of mounting rail

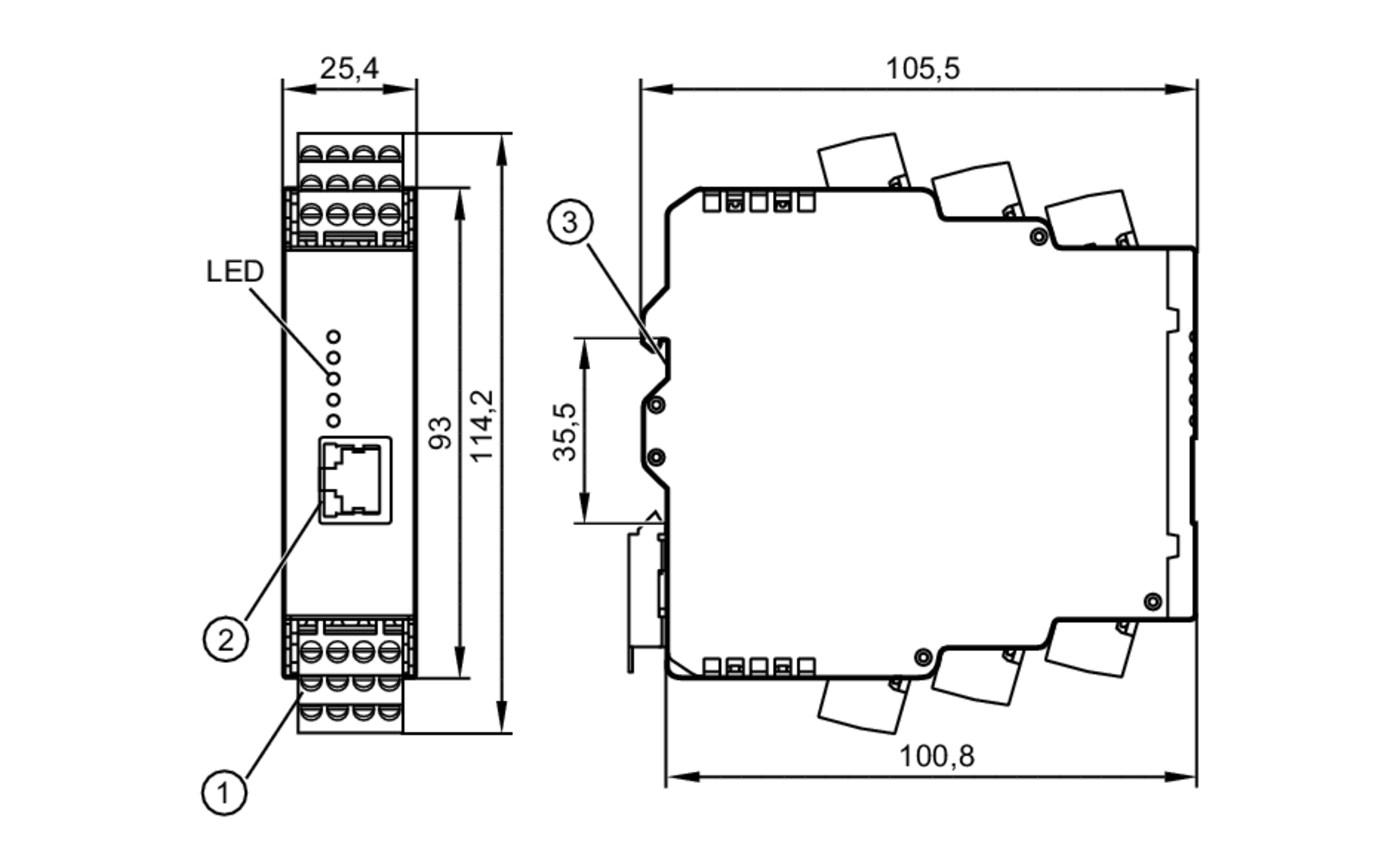

Dimensions [mm] 100 x 25.4 x 103.4
Materials PA
Data memories
History memory yes
Data memory buffered yes
Data memory type ring memory; FIFO
With real-time clock yes
Memory location internal
Memory interval min. 1 min
Memory size 881664 data records
Accessories
Accessories (optional)
cross-over Ethernet patch cable for the direct connection to the PC
Remarks
Pack quantity 1 pcs.

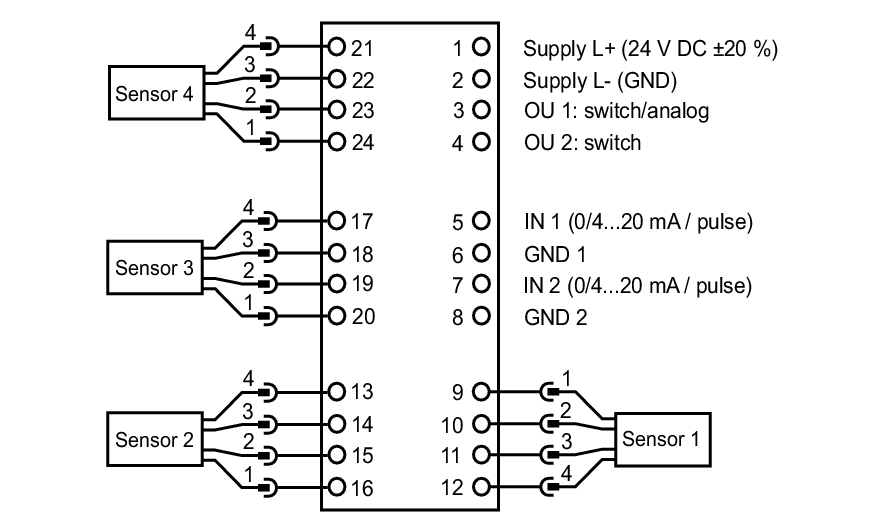

Electrical connection
Connection COMBICON: ; Maximum cable length: 250 m
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — VSE002-04 — 21.03.2017 —
