Vibration monitor with intuitive switch point setting


{{'OPTIONAL_INFO' | productAvailability | error}}

Dear customer,
Unfortunately, this data sheet is not available in the requested language. If you have any further questions, you can contact us by e-mail.

Best regards
Your ifm team

  • Reliable permanent monitoring of the overall vibration to DIN ISO 10816
  • Switching output with adjustable switch point and response delay
  • Simple switch point setting by means of two setting rings allowing optimum reading
  • With analogue current output for vibration velocity
  • Clearly visible LEDs for indicating switching status and operation
  • ce
  • eac
  • cul
Comprehensive technical data in pdf format

Technische Details
Product characteristics
Measuring range of vibration [mm/s] 0...25; (RMS)
Frequency range [Hz] 10...1000
Application vibration monitor to DIN ISO 10816
Electrical data
Operating voltage [V] 18...32 DC
Current consumption [mA] < 50
Protection class III
Sensor type microelectromechanical system (MEMS)
Inputs / outputs
Total number of inputs and outputs 2
Number of inputs and outputs Number of digital outputs: 1; Number of analogue outputs: 1
Output signal switching signal; analogue signal
Number of digital outputs 1
Output function normally closed
Max. voltage drop switching output DC [V] 2
Permanent current rating of switching output DC [mA] 500
Number of analogue outputs 1
Analogue current output [mA] 4...20
Max. load [Ω] 500
Short-circuit protection yes
Type of short-circuit protection pulsed
Overload protection yes
Measuring/setting range
Measuring range of vibration [mm/s] 0...25; (RMS)
Frequency range [Hz] 10...1000
Number of measurement axes 1
Accuracy / deviations
Measuring error [% of the final value] < ± 3
Switch point accuracy < ±4; (% of the final value)
Repeatability < 0,5; (% of the final value)
Linearity deviation 0,25 %
Operating conditions
Ambient temperature [°C] -25...80
Note on ambient temperature
UL application: < 80 °C
Storage temperature [°C] -25...80
Protection IP 67
Tests / approvals
EN 61000-4-2 ESD 4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated 10 V/m
EN 61000-4-4 Burst 2 kV
EN 61000-4-6 HF conducted 10 V
Shock resistance
400 g
MTTF [years] 510

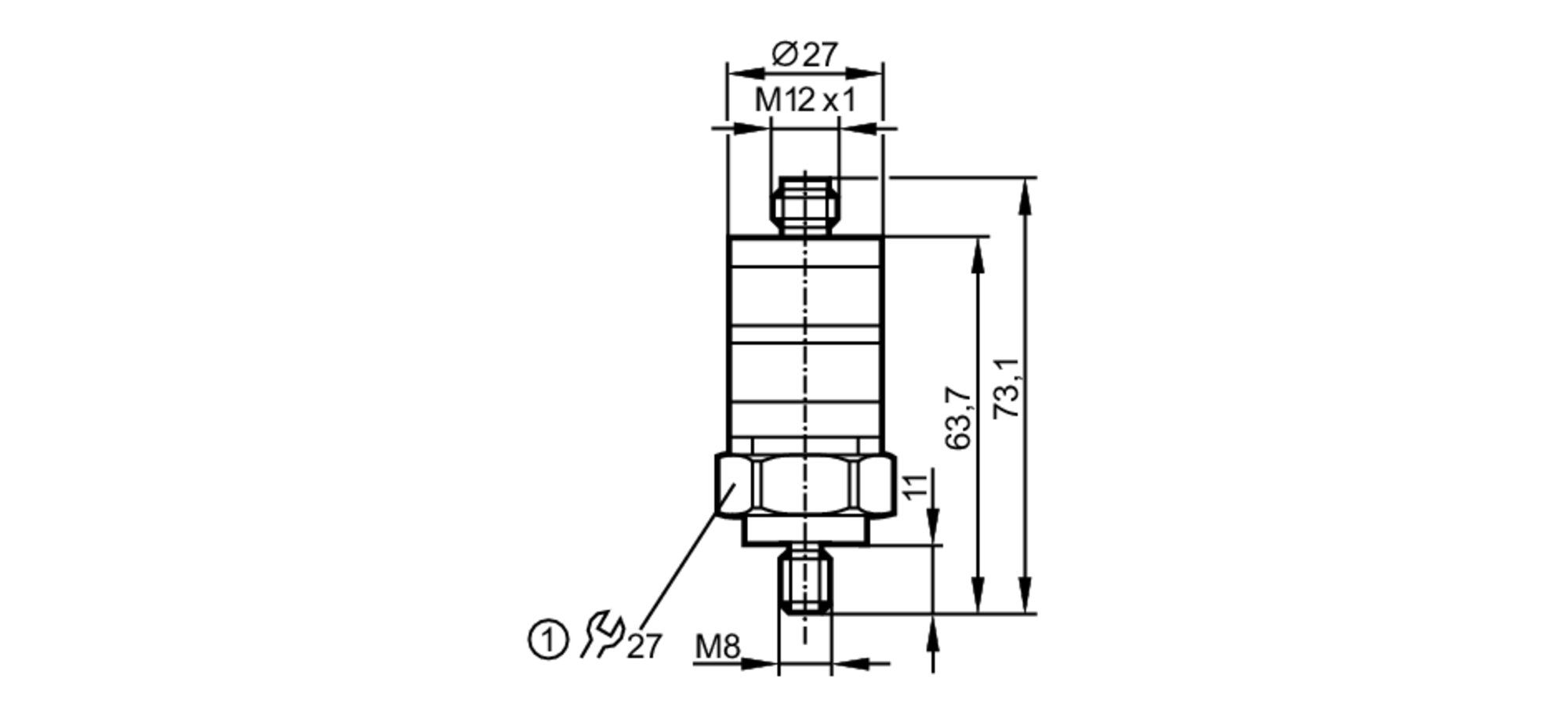

Mechanical data
Weight [g] 114
Type of mounting M8 x 1,25
Materials PBT; PC; FKM; stainless steel (1.4404 / 316L)
Tightening torque [Nm] 15
Displays / operating elements
operation LED, green
switching status LED, yellow
With scale yes
Operating elements
setting ring setting ring
Pack quantity 1 pcs.

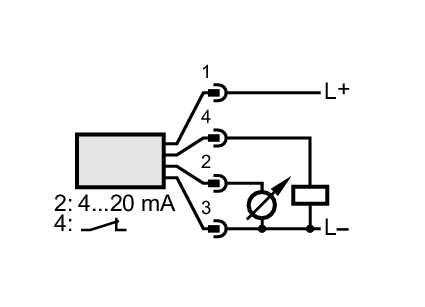

Electrical connection
Connection Connector: 1 x M12
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — VKV021-02 — 08.04.2016 —
