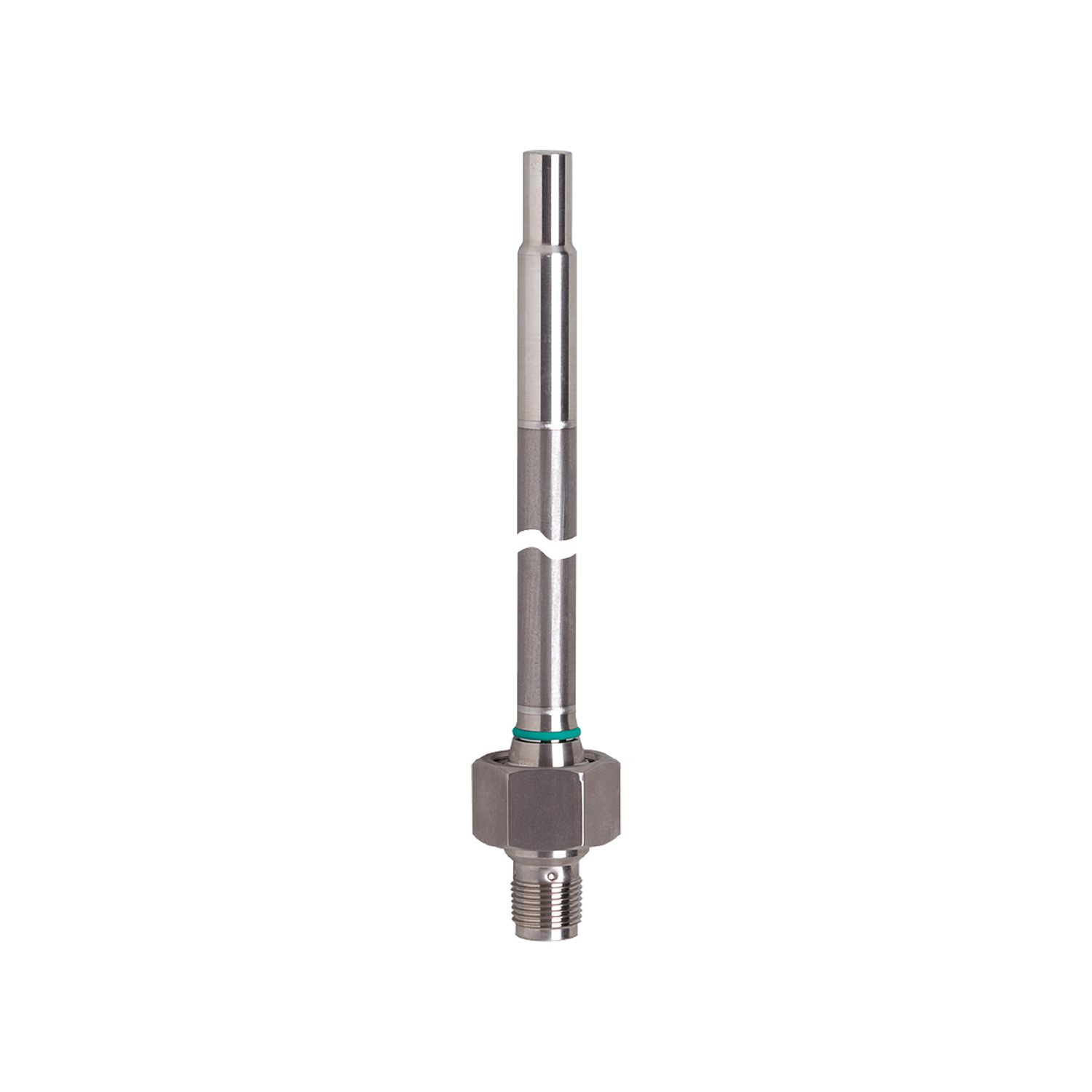

Flow sensor for connection to an evaluation unit

SF5704

SFD10ADT /US-100

Flow sensor for connection to an evaluation unit

SF5704

SFD10ADT /US-100

  • Reliable monitoring of liquids and gases in pipes
  • For connection to an evaluation unit
  • Simple process connection via adapter
  • Titanium materials for contact with the medium for use in aggressive media
  • M12 connector for fast and easy connection
{{ifmVariantName}}



  • ce
  • cul
Technical details
Product characteristics
Probe length L [mm] 243
Process connection M18 x 1,5 internal thread
Application
Media Liquids; Gases; aggressive media
Medium temperature [°C] -25...80
Pressure rating [bar] 100
Electrical data
Connection to control monitor VS3000
Measuring/setting range
Probe length L [mm] 243
Liquids
Setting range [cm/s] 3...300
Greatest sensitivity [cm/s] 3...60
Gases
Setting range [cm/s] 200...3000
Greatest sensitivity [cm/s] 200...800
Accuracy / deviations
Temperature gradient [K/min] 300
Response times
Response time [s] 1...10
Operating conditions
Storage temperature [°C] -25...80
Protection IP 67
Tests / approvals
Shock resistance
DIN IEC 68-2-27 50 g (11 ms)
Vibration resistance
DIN IEC 68-2-6 10 g (55...2000 Hz)
MTTF [years] 8393.77
Mechanical data
Weight [g] 95
Housing for adapter
Dimensions [mm] M18 x 1.5
Thread designation M18 x 1.5
Materials titanium (3.7035); EPDM; ULTEM
Materials (wetted parts) titanium (3.7035); O-ring: FKM 80 Shore A
Process connection M18 x 1,5 internal thread
Remarks
Pack quantity 1 pcs.
Electrical connection
Connection Connector: 1 x M12; Maximum cable length: 100 m
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — SF5704-00 — 05.11.2020 —
