| Application |
| Function principle |
Diffuse reflection sensor |
| Electrical data |
| Operating voltage [V] |
10...30 DC |
| Current consumption [mA] |
25 |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Type of light |
red light |
| Wave length [nm] |
660 |
| Outputs |
| Electrical design |
PNP |
| Output function |
light-on/dark-on mode; (programmable) |
| Max. voltage drop switching output DC [V] |
2.5 |
| Permanent current rating of switching output DC [mA] |
200 |
| Switching frequency DC [Hz] |
1000 |
| Short-circuit protection |
yes |
| Type of short-circuit protection |
pulsed |
| Overload protection |
yes |
| Detection zone |
| Range [mm] |
15...400; (white paper 200 x 200 mm 90 % remission) |
| Range adjustable |
yes |
| Max. light spot diameter [mm] |
18 |
| Light spot dimensions refer to |
Range |
| Background suppression available |
yes |
| Operating conditions |
| Ambient temperature [°C] |
-25...60 |
| Protection |
IP 67 |
| Tests / approvals |
| EMC |
|
| MTTF [years] |
556 |
| Mechanical data |
| Weight [g] |
34.9 |
| Housing |
rectangular |
| Dimensions [mm] |
35 x 11 x 24 |
| Materials |
housing: ABS; LED window: SEPS; pushbutton: SEPS |
| Lens material |
|
| Lens alignment |
side lens |
| Displays / operating elements |
| Display |
| switching status |
1 x LED, yellow |
| operation |
1 x LED, green |
|
| Electronic lock |
yes |
| Accessories |
| Accessories (supplied) |
| screws: 2 x |
| spring washers: 2 x |
| Nuts: 2 x |
|
| Remarks |
| Remarks |
| operating voltage "supply class 2" according to cULus |
|
| Pack quantity |
1 pcs. |
| Electrical connection |
| Connection |
Connector: 1 x M8 |
| Diagrams and graphs |
|
|
a:
|
sensor |
|
b:
|
object |
|
c:
|
background |
|
x:
|
distance sensor/object [mm] |
|
y:
|
min. distance object/background [mm] |
|

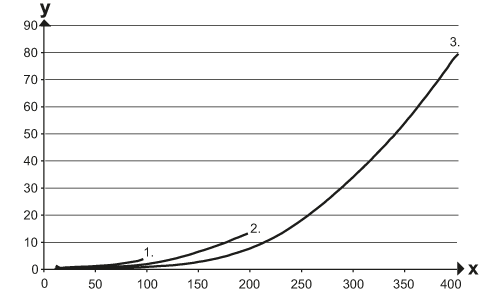

| accuracy graph |
|
x:
|
distance sensor/object [mm] |
|
y:
|
min. distance object/background [mm] |
|
1 =
|
object black (6 % remission) , background (white 90 % remission) |
|
2 =
|
object grey (18 % remission) , background (white 90 % remission) |
|
3 =
|
object white (90 % remission) , background (white 90 % remission) |
|
