Products
OC5216

Diffuse reflection sensor with background suppression

OC5216

OCH-CPKG/US-100

Diffuse reflection sensor with background suppression

OC5216

OCH-CPKG/US-100

Article no longer available - archive entry

Alternative articles: O5H500 Product comparison: OC5216 / O5H500 When selecting an alternative article and accessories please note that technical data may differ!

Product characteristics

Type of light	infrared light
Housing	rectangular

Application

Special feature	Background suppression
Function principle	Diffuse reflection sensor

Electrical data

Operating voltage [V]	10...30 DC
Current consumption [mA]	< 40
Protection class	II
Reverse polarity protection	yes
Type of light	infrared light
Wave length [nm]	880

Outputs

Electrical design	PNP
Output function	complementary
Max. voltage drop switching output DC [V]	2.9
Permanent current rating of switching output DC [mA]	100
Switching frequency DC [Hz]	1500
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Range [mm]	20...250
Range adjustable	yes
Max. light spot diameter [mm]	12.5
Light spot dimensions refer to	at maximum range
Background suppression available	yes

Operating conditions

Ambient temperature [°C]	-40...60
Protection	IP 67

Tests / approvals

EMC

EN 60947-5-2

Mechanical data

Housing

rectangular

Dimensions [mm]

49 x 15 x 42

Materials

diecast zinc

Lens material

PMMA

Displays / operating elements

Display

switching status	1 x LED, yellow
function	1 x LED, yellow flashing

Accessories

Items supplied

screwdrivers

Remarks

Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A

Diagrams and graphs

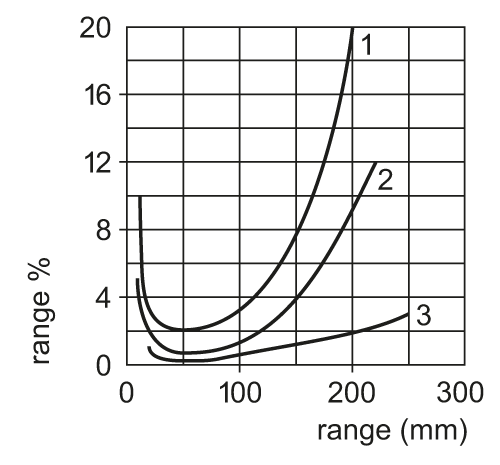

accuracy graph

x:	distance sensor/object [mm]
y:	min. distance object/background [mm]
1 =	object black (6 % remission) , background white (90 % remission)
2 =	object grey (18 % remission) , background white (90 % remission)
3 =	object white (90 % remission) , background white (90 % remission)
	Note : range % = setting in % of the range

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — OC5216-00 — 06.03.2003 —
