3D camera
O3R225
O3RIOOKG/2D3D/ZN/O/W/105
3D camera
O3R225
O3RIOOKG/2D3D/ZN/O/W/105
Order using myifm to benefit from a discounted flat rate delivery charge, irrespective of the number of items in the order.
Product characteristics
| Image resolution [px] | 1280 x 800 |
|---|---|
| Image resolution 3D [px] | 224 x 172 |
| Angle of aperture [°] | 128 x 80 |
| Angle of aperture 3D [°] | 105 x 78 |
| Image repetition frequency [Hz] | 20 |
| Image repetition frequency 3D [Hz] | 20 |
Electrical data
| Operating voltage [V] | 19.2...28.8 DC |
|---|---|
| Max. current consumption [mA] | 800 |
| Power consumption [W] | 8.6; ((FPS x 0,32) + 2,2; FPS = Framerate Head) |
| Image sensor | PMD 3D ToF-Chip / 2D Chip |
| Internal lighting | yes; (infrared: 940 nm invisible radiation) |
Detection zone
| Image resolution [px] | 1280 x 800 |
|---|---|
| Image resolution 3D [px] | 224 x 172 |
| Angle of aperture [°] | 128 x 80 |
| Angle of aperture 3D [°] | 105 x 78 |
| Image repetition frequency [Hz] | 20 |
| Image repetition frequency 3D [Hz] | 20 |
Interfaces
| Transmission standard | FPD-Link |
|---|---|
| Connector type | HFM (Mini-Fakra) |
Operating conditions
| Ambient temperature [°C] | -10...40 |
|---|---|
| Storage temperature [°C] | -40...85 |
| Protection | IP 54 |
Tests / approvals
| EMC |
|
||||||||
|---|---|---|---|---|---|---|---|---|---|
| Shock resistance |
|
||||||||
| Vibration resistance |
|
||||||||
| Laser protection class | 1 | ||||||||
| Notes on laser protection |
|
||||||||
| Electrical protection |
|
Mechanical data
| Weight [g] | 170.9 |
|---|---|
| Dimensions [mm] | 90 x 31 x 26 |
| Materials | housing: diecast zinc coated; Cover: PMMA; window: glass / PMMA; rear of the housing: aluminium coated |
| Tightening torque [Nm] | < 0.8 |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connector: Dual-HFM |
Other data
Field of view size
| distance [m] | Length [m] | Width [m] |
| 1.00 | 2.60 | 1.70 |
| 2.00 | 5.20 | 3.35 |
| 3.00 | 7.80 | 5.05 |
| 4.00 | 10.40 | 6.70 |
repeatability of the distance measurement of an individual pixel
| measuring range / distance [m] | repeatability of the measured distance values on grey objects (18% reflectivity) [mm] | accuracy [mm] |
| typical value | typical value | |
| 0...1 | ± 7 | ± 9 |
| 1...2 | ± 15 | ± 10 |
| 2...3 | ± 30 | ± 12 |
| 3...4 | ± 51 | ± 13 |
| object in centre of the image | |
| Ambient temperature | 20° C |
| measured at a reflectivity of 18% to 90% | |
| The repeatability can be optimised with filter functions |
Temperature drift
| Temperature range | -10...40 °C |
| Temperature drift [mm/K] | 0.1 |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — O3R225-00 — 21.10.2021 —
O3R225 –
O3RIOOKG/2D3D/ZN/O/W/105
- 1

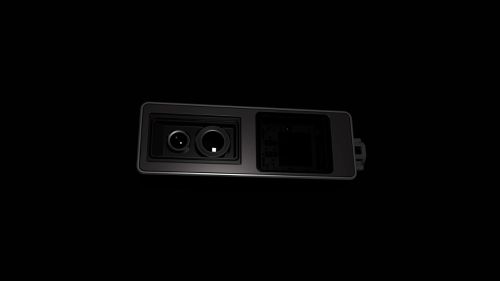

- 2D camera
- 2
- 3D sensor
- 3
- Illumination unit
