3-segment signal light

Name: DV2330
Brand: ifm
SKU: DV2330
Price: 230.30 EUR

DV2330

LED-Tower-3/IOL/Buzzer

3-segment signal light

DV2330

LED-Tower-3/IOL/Buzzer

Technical details

Application

signalling machine conditions

Electrical data

Operating voltage [V]

18...30 DC; (to SELV/PELV)

Nominal voltage DC [V]

Current consumption [mA]

< 200

Inputs

Input current High [mA]

Interfaces

Communication interface

IO-Link

Transmission type

COM2 (38,4 kBaud)

IO-Link revision

1.1

SDCI standard

IEC 61131-9

SIO mode

yes

Required master port type

Min. process cycle time [ms]

3.2

Supported DeviceIDs


Type of operation	DeviceID
Default	1467

Operating conditions

Ambient temperature [°C]

-25...50

Storage temperature [°C]

-40...75

Max. relative air humidity [%]

Air pressure [kPa]

< 106

Max. height above sea level [m]

2000

Protection

IP 54

Tests / approvals

UL approval


power supply	Class 2

Mechanical data

Weight [g]

422.8

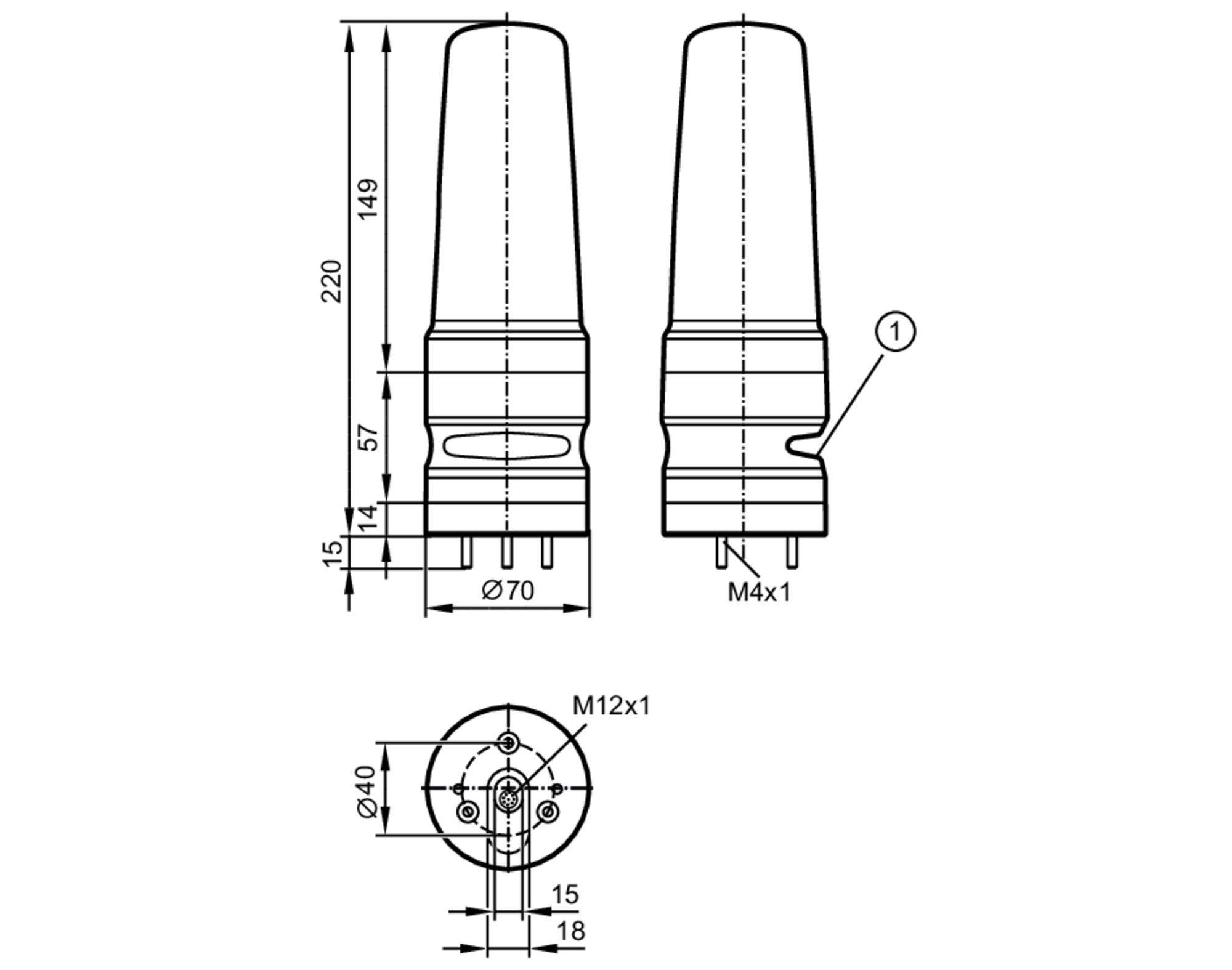

Dimensions [mm]

Ø 70 / L = 220

Materials

housing: ABS; lens: PC

Displays / operating elements

Display


LED segment	3 x 4 LED

Acoustic signal

buzzer

Max. sound pressure [dB]

Accessories

Accessories (optional)


mounting base, E89060
wall bracket, E89061
Mounting adapter, E89063
bracket with lateral cable entry, E89064
mounting tube, E89065
mounting tube, E89066
mounting tube, E89067

Remarks


For further information please see the operating instructions.

Pack quantity

1 pcs.

Electrical connection - plug

Connector: M12; coding: A

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — DV2330-00 — 17.03.2022 —
