5-segment light tower

DV1530

LED-Tower-5/Std/Buzzer

5-segment light tower

DV1530

LED-Tower-5/Std/Buzzer

  • Perfect visibility
  • Modern LED RGB technology, long life, reduced stock-keeping
  • Different modes configurable via IO-Link or setting menu
  • Also as standard version with digital inputs
  • Quick and easy to mount
{{ifmVariantName}}

PDF data sheet
  • ce
  • iolink
  • cruus
Technical details
Application
Application signalling machine conditions
Electrical data
Operating voltage [V] 18...30 DC; (to SELV/PELV)
Nominal voltage DC [V] 24
Current consumption [mA] < 200
Inputs / outputs
Number of inputs and outputs Number of digital inputs: 6
Inputs
Number of digital inputs 6
Input current High [mA] 6
Interfaces
Communication interface IO-Link
Transmission type COM2 (38,4 kBaud)
IO-Link revision 1.1
SDCI standard IEC 61131-9
SIO mode yes
Required master port type A
Min. process cycle time [ms] 3.2
Supported DeviceIDs
Type of operation DeviceID
Default 850
Operating conditions
Ambient temperature [°C] -25...50
Storage temperature [°C] -40...75
Max. relative air humidity [%] 90
Air pressure [kPa] < 106
Max. height above sea level [m] 2000
Protection IP 54
Mechanical data
Weight [g] 567
Dimensions [mm] Ø 70 / L = 284
Materials housing: ABS; lens: PC
Displays / operating elements
Display
status 1 x LED, green
LED segment 5 x 4 LED
Acoustic signal buzzer
Max. sound pressure [dB] 85
Accessories
Accessories (optional)
mounting base, E89060
wall bracket, E89061
Mounting adapter, E89063
bracket with lateral cable entry, E89064
mounting tube, E89065
mounting tube, E89066
mounting tube, E89067
Remarks
Remarks
For further information please see the operating instructions.
Pack quantity 1 pcs.
Electrical connection - plug
Connection Connector: M12; coding: A
Diagrams and graphs
base mounting

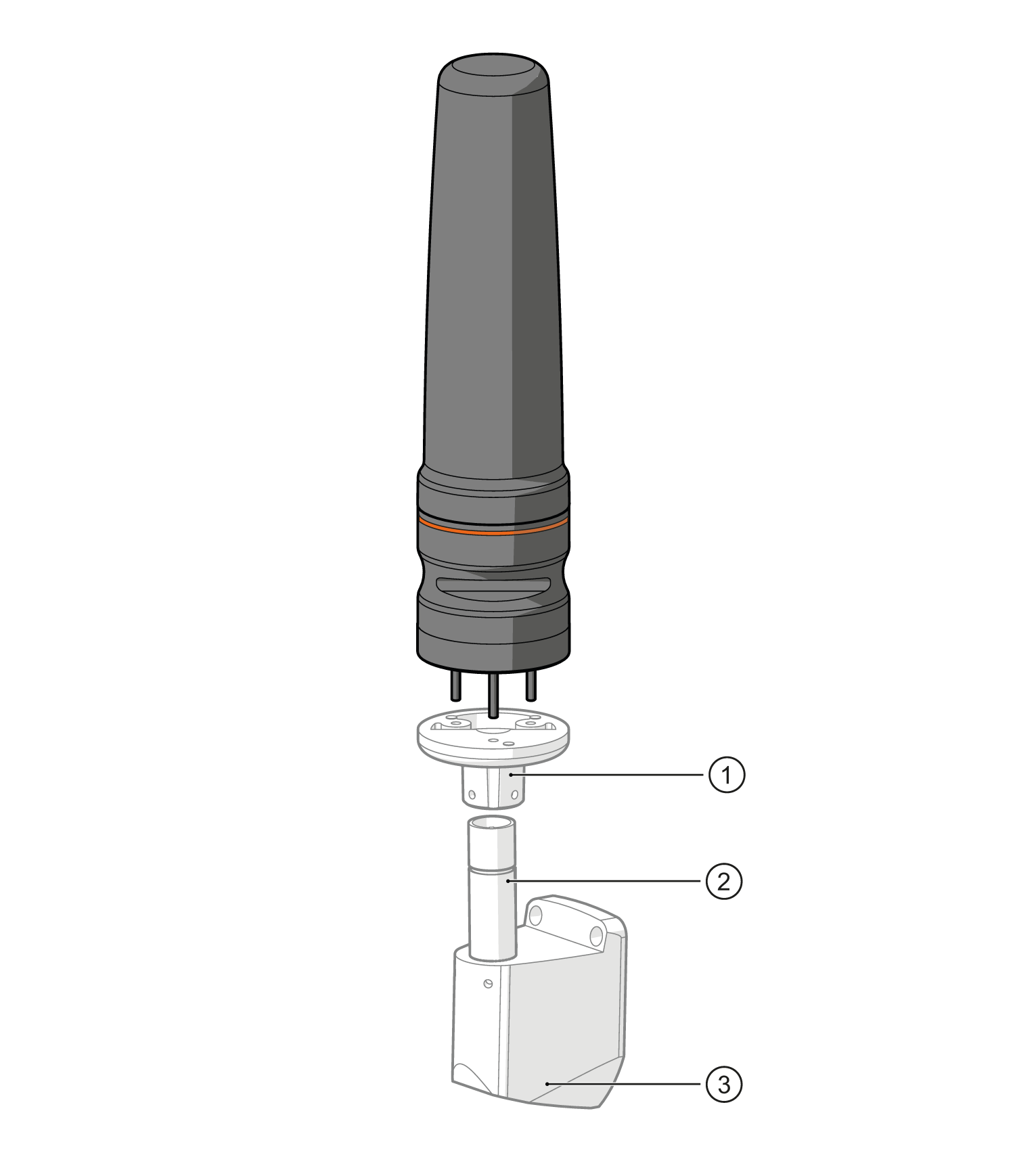

wall mounting
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — DV1530-00 — 29.09.2017 —
