Dataflow Modeler – calculated values
With the “Data Flow Modeler” function, moneo offers logical operations and calculations for the “Calculated values”. They enable recalculation or further calculation of sensor data, which often cannot be used directly to its full extent. This allows generation of valuable process information.
An example are sensors that output analogue signals with 0...10 V or 4...20 mA. These voltage or current values are converted into the actual process value (e.g. temperature, pressure, level...) via the calculated values.

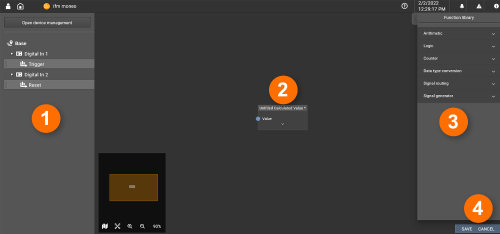

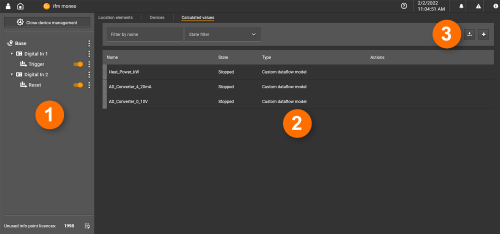

Using the graphical programming interface (Data Flow Modeler), corresponding “data flows” with mathematical functions, logics or counters can be easily created by software users with admin rights.

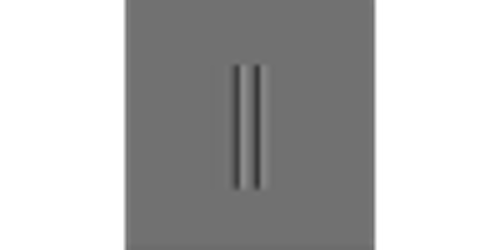

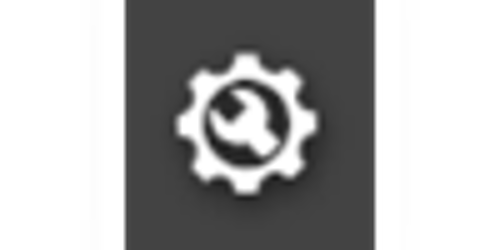

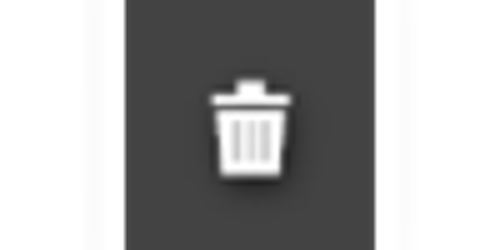

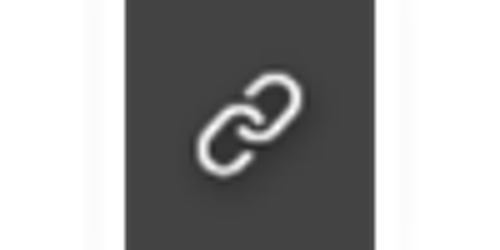

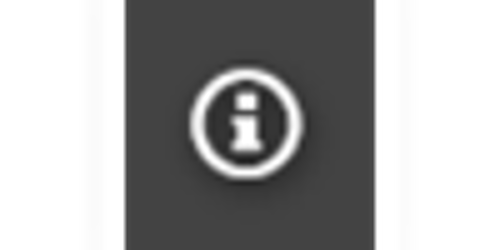

|The calculated value can be inserted into the topology path via drag & drop. If the value has already been inserted into the topology path, the symbol is not displayed.|
|Edit calculated value ➜ Data Flow Modeler opens.|
|Delete the calculated value permanently.|
|This action can be used to search for the respective calculated value within a topology path. The path only appears if the value has already been inserted into the topology.|
|Export the calculated value: The download window of the browser appears and the calculated value can be saved locally as a zip file.|
|Further information on the calculated value is displayed.|
