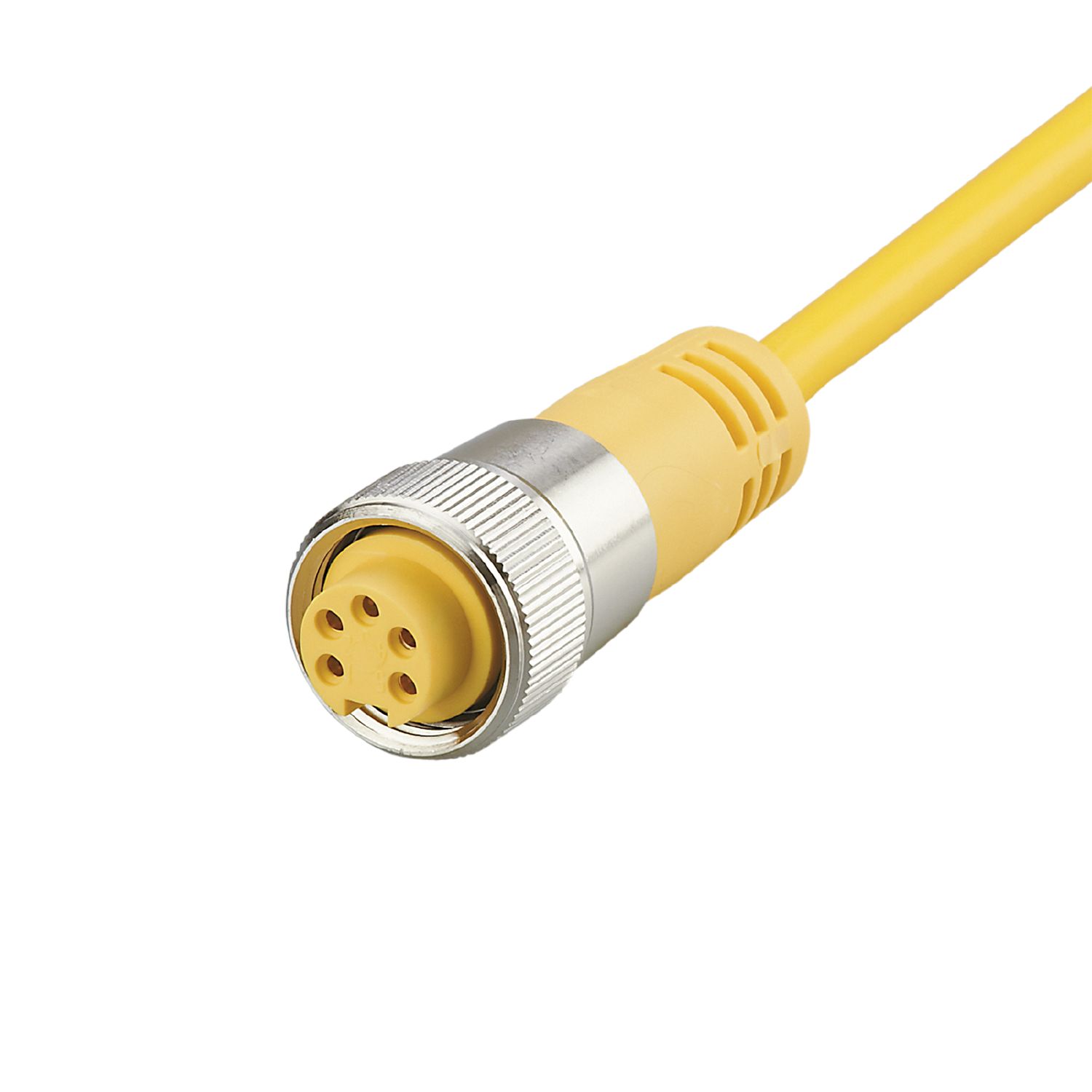

Connecting cable with socket

W80654

ADOGB050MKS0002X05

Connecting cable with socket

W80654

ADOGB050MKS0002X05

  • For safe electrical connections
  • Permanent, reliable sealing even when mounted without tools
  • High protection rating for the requirements of harsh industrial environments
  • Wide operating temperature range
{{ifmVariantName}}



Technical details
Electrical data
Operating voltage [V] < 300 AC/DC
Operating conditions
Ambient temperature [°C] -20...105
Protection IP 68
Mechanical data
Weight [g] 172.365
Dimensions [mm] 25.4 x 25.4 x 59.44
Materials PVC
Moulded-body material PVC
Material nut zinc, epoxy coated
Remarks
Pack quantity 1 pcs.
Electrical connection
Cable: 2 m, PVC, yellow, Ø 7.12 mm; 5 x 0.5 mm² / AWG 20
Electrical connection - socket
Connection Connector: 1 x 7/8", straight; Moulded body: PVC; Locking: zinc, epoxy coated
