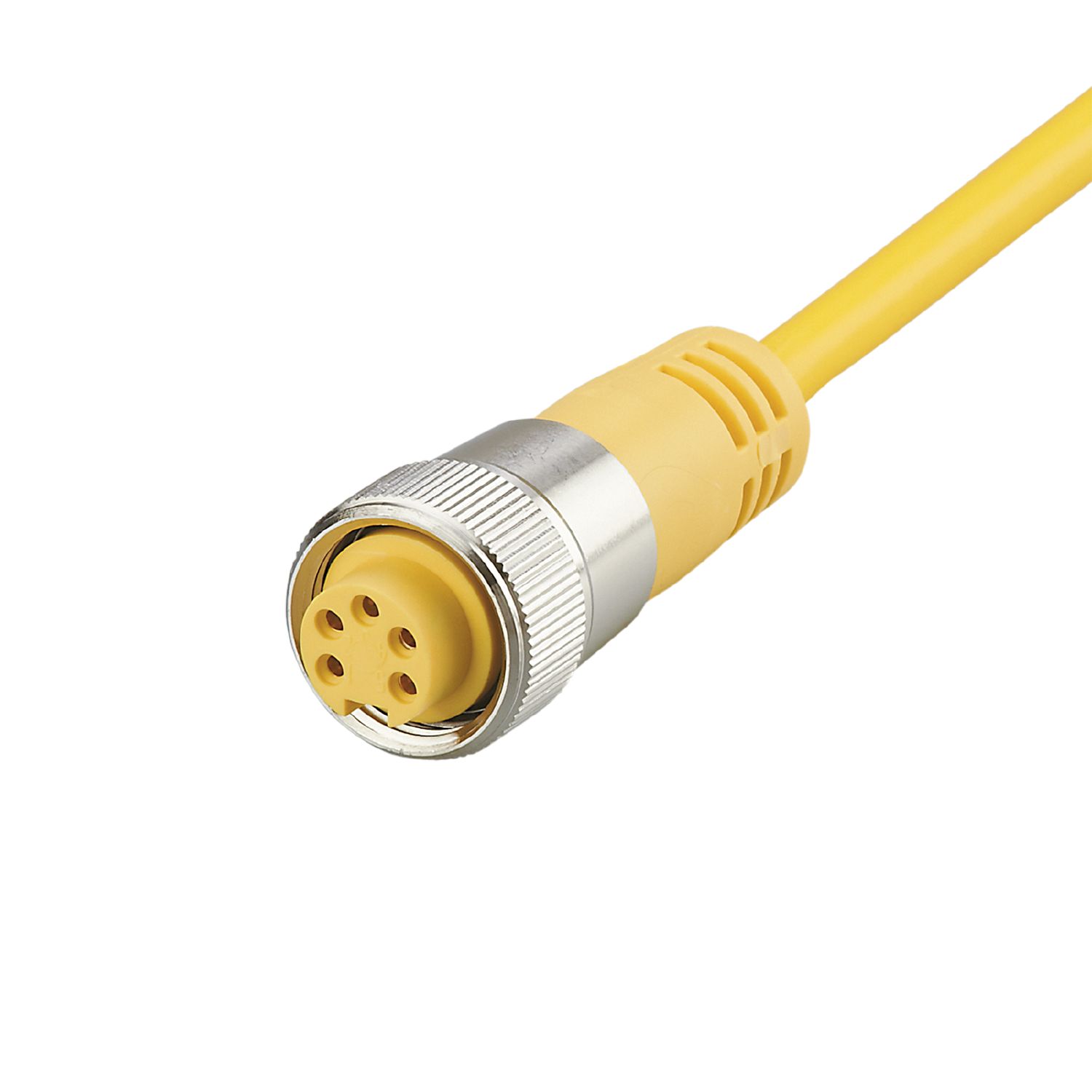

Connecting cable with socket

W80651

ADOGB050MKS0004X05

Connecting cable with socket

W80651

ADOGB050MKS0004X05

  • Gold-plated contacts for reliable electrical connections
  • Permanent, reliable sealing even when mounted without tools
  • High protection rating for the requirements of harsh industrial environments
  • Wide operating temperature range
  • Very large operating voltage range
{{ifmVariantName}}



Technical details
Application
Special feature Gold-plated contacts
Electrical data
Operating voltage [V] < 600 AC/DC
Operating conditions
Ambient temperature [°C] -20...105
Protection IP 68
Mechanical data
Weight [g] 789.25
Materials PVC
Moulded-body material PVC
Material nut zinc, epoxy coated
Remarks
Pack quantity 1 pcs.
Electrical connection
Cable: 4 m, PVC, yellow, Ø 12.7 mm; 5 x 1.5 mm² / AWG 16
Electrical connection - socket
Connection Connector: 1 x 7/8", straight; Moulded body: PVC; Locking: zinc, epoxy coated; Contacts: gold-plated
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — W80651-00 — 13.01.2017 —
