- W80600

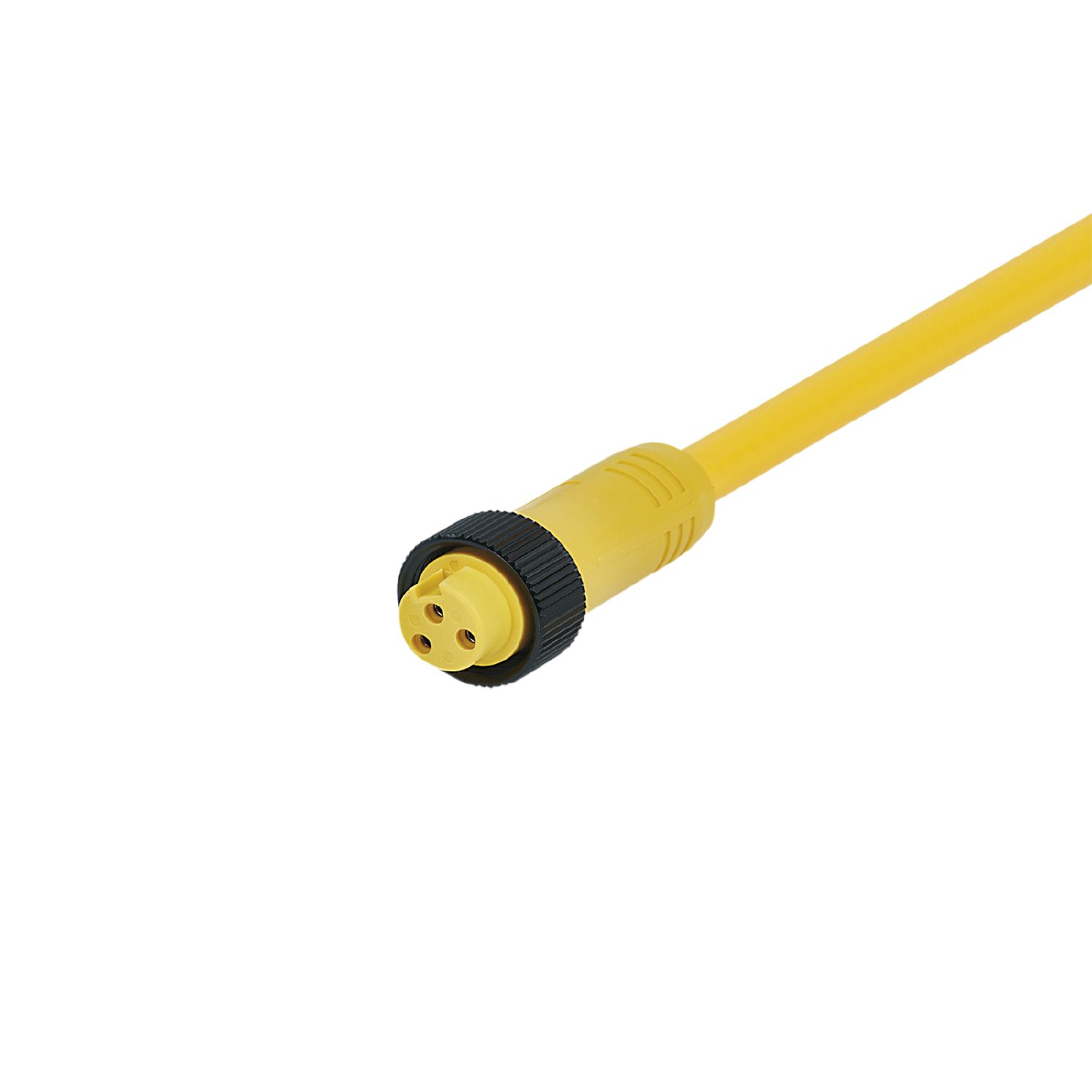

Connecting cable with socket
W80600
ADOGB030MKS0002X03
Connecting cable with socket
W80600
ADOGB030MKS0002X03
- Gold-plated contacts for reliable electrical connections
- Permanent, reliable sealing even when mounted without tools
- High protection rating for the requirements of harsh industrial environments
- Wide operating temperature range
Application
| Special feature | Gold-plated contacts |
|---|
Electrical data
| Operating voltage [V] | < 600 AC/DC |
|---|
Operating conditions
| Ambient temperature [°C] | -20...90 |
|---|---|
| Protection | IP 68 |
Mechanical data
| Weight [g] | 281.227 |
|---|---|
| Materials | PVC |
| Moulded-body material | PVC |
| Material nut | zinc, epoxy coated |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable: 2 m, PVC, yellow, Ø 6 mm; 3 x 1.5 mm² / AWG 16 |
Electrical connection - socket
| Connection | Connector: 1 x 7/8", straight; coding: A; Moulded body: PVC; Locking: zinc, epoxy coated; Contacts: gold-plated |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — W80600-00 — 03.11.2003 —
W80600 –
ADOGB030MKS0002X03
Electrical connection
Cable: 2 m, PVC, yellow, Ø 6 mm; 3 x 1.5 mm² / AWG 16
Electrical connection - socket
Connector: 1 x 7/8", straight; coding: A; Moulded body: PVC; Locking: zinc, epoxy coated; Contacts: gold-plated
Connection
- Core colours :
- GN =
- green
- RD/BK =
- red/black
- RD/WH =
- red/white
