- SA3010
Flow monitor
SA3010
SAD18BBDFRKG/W/US-100-IPF
Flow monitor
SA3010
SAD18BBDFRKG/W/US-100-IPF
- Reliable monitoring of water in pipes
- Two switching outputs, one of them programmable as analogue output
- Easy setting of the switch points for quick set-up
- Robust housing for use in harsh industrial environments
- LED display for indication of the measured value
phase-out article
Alternative articles: SA5010 Product comparison: SA3010 / SA5010 When selecting an alternative article and accessories please note that technical data may differ!
{{ifmVariantName}}
| Product characteristics | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Number of inputs and outputs | Number of digital outputs: 2; Number of analogue outputs: 1 | ||||||||
| Measuring range [l/min] | 0...10 | ||||||||
| Application | |||||||||
| Special feature | Gold-plated contacts | ||||||||
| Installation | T-pieces; ((DIN 2353): QL 18-18-18 (NW 15 mm) / QL 22-18-22 (NW 19 mm) / QL 28-18-28 (NW 24 mm)) | ||||||||
| Media | water | ||||||||
| Medium temperature [°C] | 0...80 | ||||||||
| Pressure rating [bar] | 30 | ||||||||
| Electrical data | |||||||||
| Operating voltage [V] | 20...28 DC | ||||||||
| Current consumption [mA] | < 80 | ||||||||
| Protection class | III | ||||||||
| Reverse polarity protection | yes | ||||||||
| Power-on delay time [s] | 10 | ||||||||
| Inputs / outputs | |||||||||
| Number of inputs and outputs | Number of digital outputs: 2; Number of analogue outputs: 1 | ||||||||
| Outputs | |||||||||
| Total number of outputs | 2 | ||||||||
| Output signal | switching signal; analogue signal; (configurable) | ||||||||
| Electrical design | PNP/NPN | ||||||||
| Number of digital outputs | 2 | ||||||||
| Output function | normally open / normally closed; (parameterisable) | ||||||||
| Max. voltage drop switching output DC [V] | 2 | ||||||||
| Permanent current rating of switching output DC [mA] | 250; (per output) | ||||||||
| Number of analogue outputs | 1 | ||||||||
| Analogue current output [mA] | 4...20; (scalable) | ||||||||
| Max. load [Ω] | 500 | ||||||||
| Analogue voltage output [V] | 0...10; (scalable) | ||||||||
| Min. load resistance [Ω] | 2000 | ||||||||
| Short-circuit protection | yes | ||||||||
| Type of short-circuit protection | pulsed | ||||||||
| Overload protection | yes | ||||||||
| Measuring/setting range | |||||||||
| Measuring range [l/min] | 0...10 | ||||||||
| Display range [l/min] | 0...12 | ||||||||
| Set point SP [l/min] | 0.1...12 | ||||||||
| Reset point rP [l/min] | 0...11.9 | ||||||||
| Analogue start point ASP [l/min] | 0...8 | ||||||||
| Analogue end point AEP [l/min] | 4...12 | ||||||||
| In steps of [l/min] | 0.1 | ||||||||
| Accuracy / deviations | |||||||||
| Flow monitoring | |||||||||
| Repeatability [% of the measured value] | 3 (Q < 30%) / 7 (Q < 100%) | ||||||||
| Temperature gradient [K/min] | 200 | ||||||||
| Accuracy (in the measuring range) | ± 10 | ||||||||
| Response times | |||||||||
| Flow monitoring | |||||||||
| Response time [s] | 5; (10%...90%) | ||||||||
| Delay time programmable dS, dr [s] | 0...50 | ||||||||
| Software / programming | |||||||||
| Parameter setting options | hysteresis / window; normally open / normally closed; switching logic; current/voltage output; inside pipe diameter; start-up delay; adaptation of displayed values; display can be rotated and switched off; Display unit | ||||||||
| Operating conditions | |||||||||
| Ambient temperature [°C] | -20...60 | ||||||||
| Protection | IP 67 | ||||||||
| Tests / approvals | |||||||||
| EMC |
|
||||||||
| MTTF [years] | 184 | ||||||||
| Mechanical data | |||||||||
| Weight [g] | 330.5 | ||||||||
| Materials | stainless steel (1.4404 / 316L); PBT; PC; PA; EPDM/X; FKM | ||||||||
| Materials (wetted parts) | stainless steel (1.4404 / 316L); O-ring: FKM 70 Shore A | ||||||||
| Displays / operating elements | |||||||||
| Display |
|
||||||||
| Display unit | l/min; gpm; l/h; gph; m³/h | ||||||||
| Remarks | |||||||||
| Remarks |
|
||||||||
| Pack quantity | 1 pcs. | ||||||||
| Electrical connection | |||||||||
| Connection | Connector: 1 x M12; coding: A; Contacts: gold-plated | ||||||||
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — SA3010-01 — 23.09.2003 —
|
|||||||||

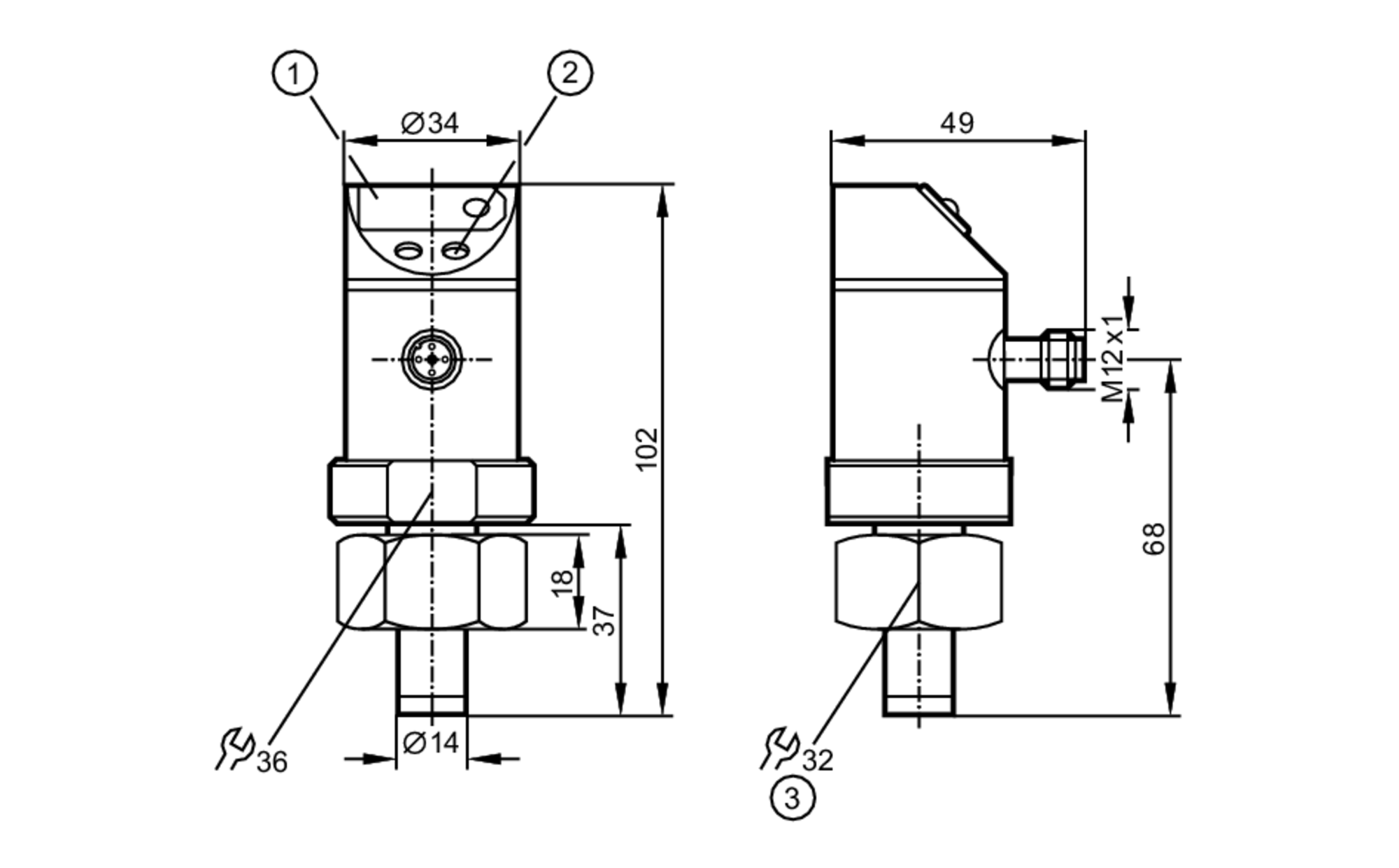

SA3010 –
SAD18BBDFRKG/W/US-100-IPF
- 1
- 7-segment LED display
- 2
- programming buttons
- 3
- internal thread M26 x 1.5

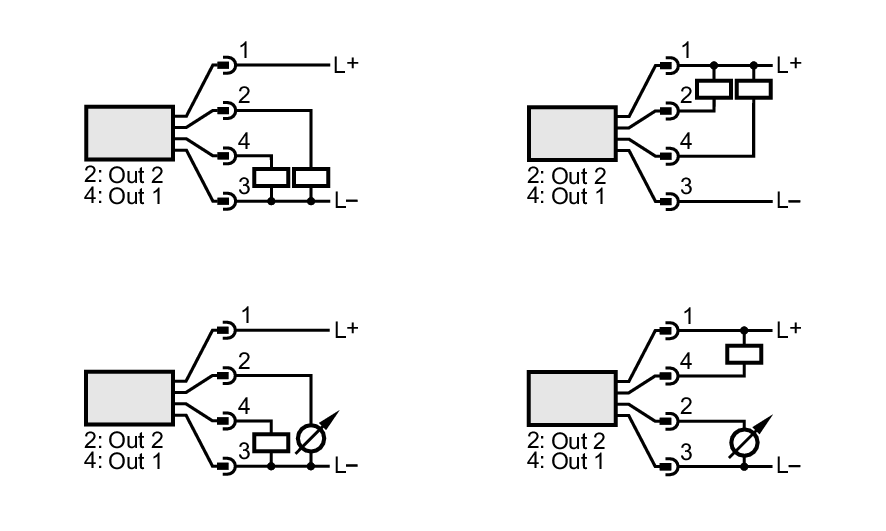

Electrical connection
Connector: 1 x M12; coding: A; Contacts: gold-plated
Connection
- OUT1:
- switching output
- OUT2:
- switching output
- analogue output
