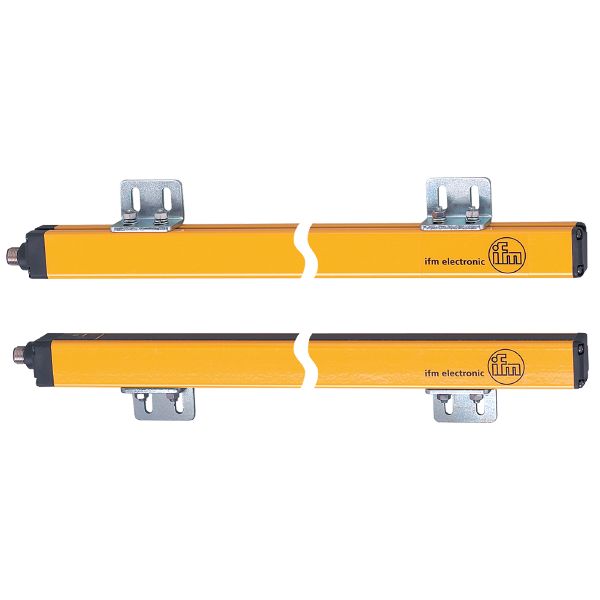

Safety light curtain
OY005S
OYA0760-14-4-06-P-1
Safety light curtain
OY005S
OYA0760-14-4-06-P-1
- Reliable protection of hazardous areas and gates
- Complies with the requirements of type 4 to IEC 61496
- Wide range selectable on the unit
- Slim, robust design for use in harsh industrial environments
- Easy connection via the tried-and-tested M12 connector
For 8-pole sockets the core colours are not standardised. Please note the wiring of the sensor and the sockets (see data sheet).
{{ifmVariantName}}
| Product characteristics | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Type of light | infrared light | ||||||||||
| Electrical design | PNP | ||||||||||
| Protection | IP 65; IP 67 | ||||||||||
| Application | |||||||||||
| Protective function | access prevention finger protection | ||||||||||
| Electrical data | |||||||||||
| Operating voltage tolerance [%] | 20 | ||||||||||
| Operating voltage [V] | 24 DC | ||||||||||
| Protection class | III | ||||||||||
| Reverse polarity protection | yes | ||||||||||
| Power-on delay time [s] | < 2 | ||||||||||
| Type of light | infrared light | ||||||||||
| Wave length [nm] | 950 | ||||||||||
| Receiver | |||||||||||
| Current consumption [mA] | 83 | ||||||||||
| Transmitter | |||||||||||
| Current consumption [mA] | 42 | ||||||||||
| Outputs | |||||||||||
| Electrical design | PNP | ||||||||||
| Number of OSSD outputs | 2 | ||||||||||
| Max. current load per OSSD output [mA] | 400; (24 V) | ||||||||||
| Short-circuit protection | yes | ||||||||||
| Detection zone | |||||||||||
| Protected area height [mm] | 760 | ||||||||||
| Resolution (detection capacity d) [mm] | 14 | ||||||||||
| Protection area width (low light intensity) [m] | 0...3 | ||||||||||
| Protection area width (high light intensity) [m] | 1...6 | ||||||||||
| Response times | |||||||||||
| Response time [ms] | 11 | ||||||||||
| Operating conditions | |||||||||||
| Applications | class C to EN 60654-1 weatherproof application | ||||||||||
| Ambient temperature [°C] | -10...55 | ||||||||||
| Max. relative air humidity [%] | 95 | ||||||||||
| Protection | IP 65; IP 67 | ||||||||||
| Tests / approvals | |||||||||||
| EMC |
|
||||||||||
| Shock resistance |
|
||||||||||
| Vibration resistance |
|
||||||||||
| Safety classification | |||||||||||
| ESPE type (IEC 61496-1) | 4 | ||||||||||
| Complies with the requirements |
|
||||||||||
| Mission time TM [h] | 175200 | ||||||||||
| PFH [1/h] | 2,0E-08 | ||||||||||
| Mechanical data | |||||||||||
| Weight [g] | 2700 | ||||||||||
| Dimensions [mm] | 813 x 28 x 30 | ||||||||||
| Materials | housing: aluminium; front lens: PC | ||||||||||
| Length L [mm] | 813 | ||||||||||
| Displays / operating elements | |||||||||||
| Display |
|
||||||||||
| Accessories | |||||||||||
| Items supplied |
|
||||||||||
| Remarks | |||||||||||
| Pack quantity | 1 pcs. | ||||||||||
| Electrical connection - receiver | |||||||||||
| Connection | Connector: 1 x M12; coding: A; Maximum cable length: 100 m; for wire cross-section 0.34 mm² | ||||||||||
| Electrical connection - transmitter | |||||||||||
| Connection | Connector: 1 x M12; coding: A | ||||||||||
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — EN-GB — OY005S — 14.03.2022 —
|
|||||||||||

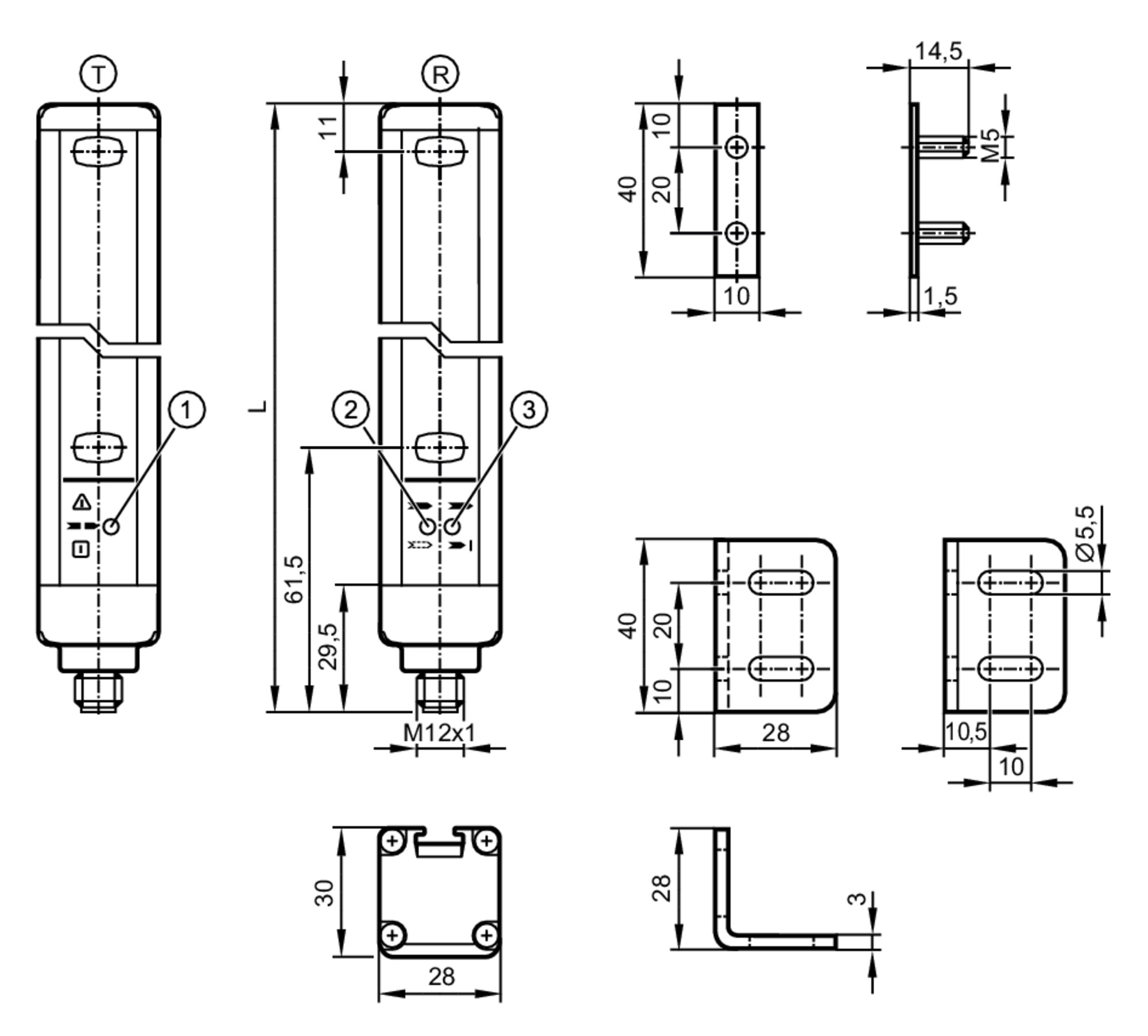

OY005S –
OYA0760-14-4-06-P-1
- T
- transmitter
- R
- receiver
- 1
- LED three-colour red / green / orange
- 2
- LED 2-colour yellow/blue
- 3
- LED 2-colour red/green

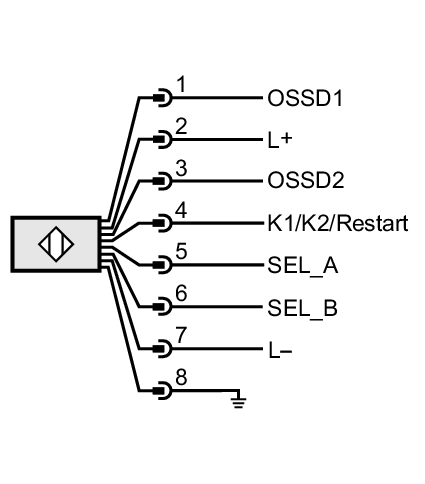

Electrical connection - receiver
Connector: 1 x M12; coding: A; Maximum cable length: 100 m; for wire cross-section 0.34 mm²
Connection

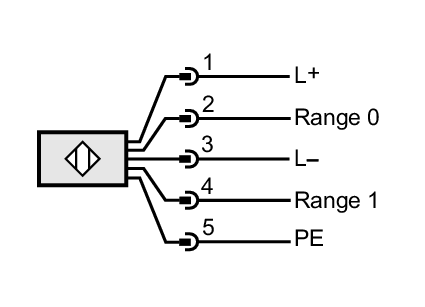

Electrical connection - transmitter
Connector: 1 x M12; coding: A
