  6. IM8502

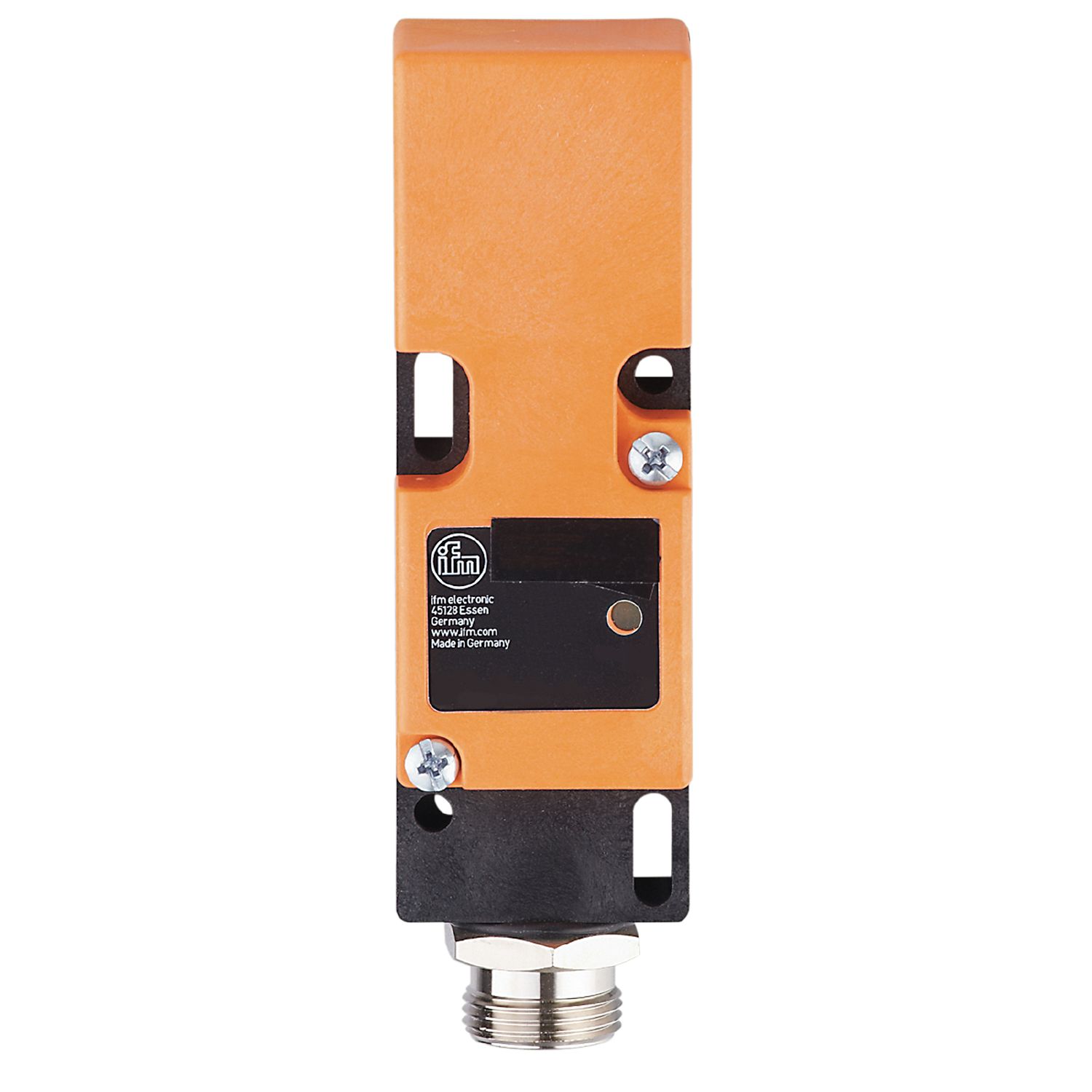

Inductive sensor

IM8502

IME3015BFPKG/LS400LPS

Inductive sensor

IM8502

IME3015BFPKG/LS400LPS

  • Long sensing range for use in conveying
  • Output function normally open / normally closed programmable
  • Robust housing for use in harsh industrial environments
  • Large operating voltage range
{{ifmVariantName}}



Technical details
Product characteristics
Output function normally open / normally closed; (selectable)
Sensing range [mm] 15
Housing rectangular
Electrical data
Operating voltage [V] 10...36 DC
Current consumption [mA] < 15
Reverse polarity protection yes
Outputs
Output function normally open / normally closed; (selectable)
Max. voltage drop switching output DC [V] 2.5
Minimum load current [mA] 0
Permanent current rating of switching output DC [mA] 250
Switching frequency DC [Hz] 350
Short-circuit protection yes
Overload protection yes
Detection zone
Sensing range [mm] 15
Real sensing range Sr [mm] 15 ± 10 %
Accuracy / deviations
Correction factor steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 / copper: 0.2
Hysteresis [% of Sr] 3...15
Switch point drift [% of Sr] -10...10
Operating conditions
Ambient temperature [°C] -25...80
Protection IP 65
Tests / approvals
EMC
EN 60947-5-2
EN 55011 class B
Mechanical data
Weight [g] 226.796
Housing rectangular
Mounting flush mountable
Materials PPE
Displays / operating elements
Display
switching status 1 x LED, red
Remarks
Remarks
Remove jumper for normally closed
Pack quantity 1 pcs.
Electrical connection - plug
Connection Connector: 1 x 7/8"
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — IM8502-00 — 06.03.2006 —
