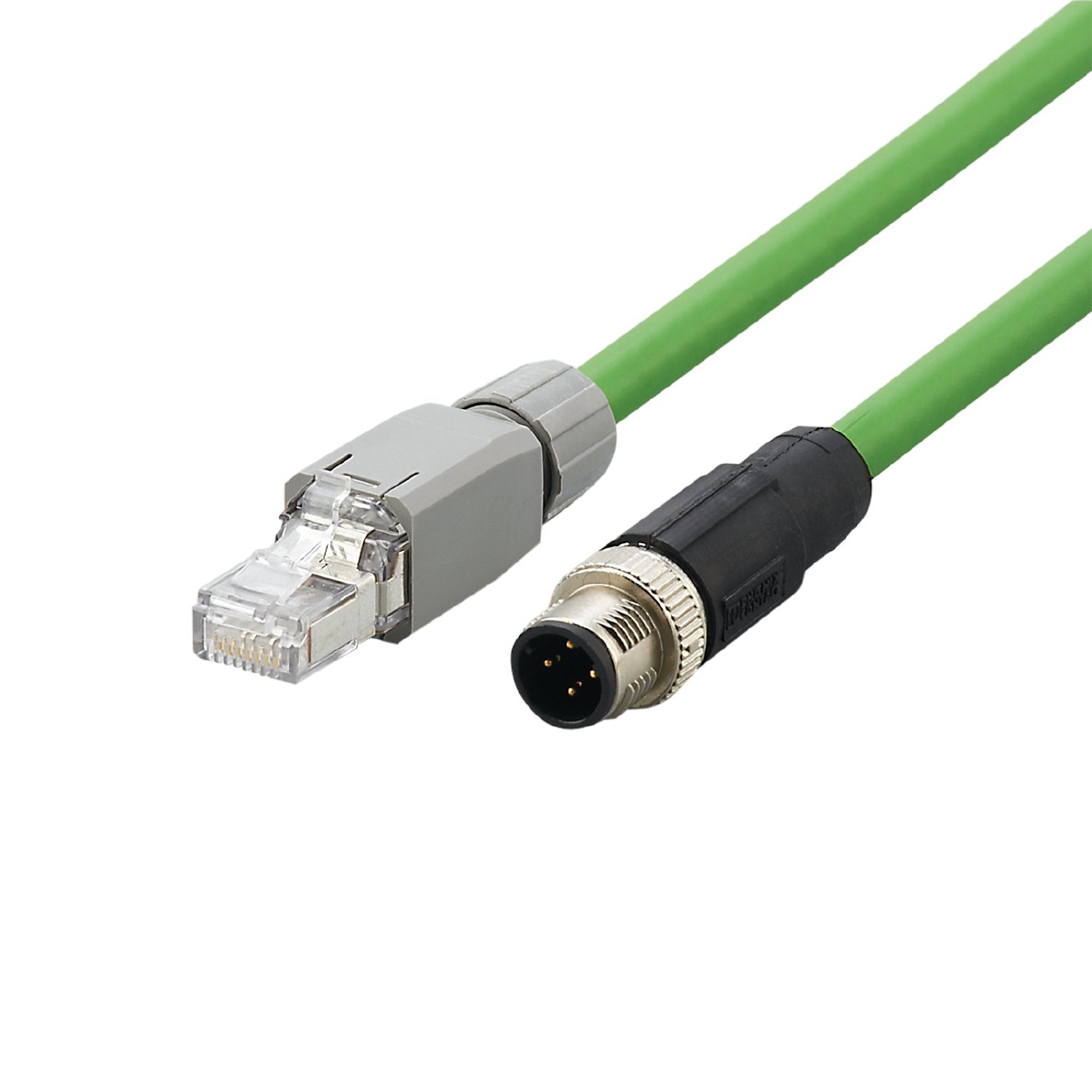

Connection cable
E18423
VDOGH040MSS0010X04GXS
Connection cable
E18423
VDOGH040MSS0010X04GXS
{{ifmVariantName}}
| Application | |
|---|---|
| Design | Ethernet cable, D-coded |
| Application | cross-over patch cable; patch cable |
| Operating conditions | |
| Ambient temperature [°C] | -25...70 |
| Protection | IP 67; IP 42; (M12 plug / RJ45 plug) |
| Mechanical data | |
| Weight [g] | 703.068 |
| Materials | PUR / PC |
| Moulded-body material | PUR / PC |
| Material nut | brass, nickel-plated |
| Remarks | |
| Pack quantity | 1 pcs. |
| Electrical connection - plug M12 | |
| Connector: 1 x M12, straight; Moulded body: PUR; Locking: brass, nickel-plated; Tightening torque: 0.7...0.9 Nm | |
| Electrical connection | |
| Connection | Cable: 10 m, PUR, green, Ø 6.2 mm; 2 x 0.38 mm² |
| Electrical connection - plug RJ45 | |
| Connector: 1 x RJ45, straight; Moulded body: PC | |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E18423-01 — 28.04.2017 —
|
|
E18423 –
VDOGH040MSS0010X04GXS
Electrical connection - plug M12
Connector: 1 x M12, straight; Moulded body: PUR; Locking: brass, nickel-plated; Tightening torque: 0.7...0.9 Nm
Electrical connection
Cable: 10 m, PUR, green, Ø 6.2 mm; 2 x 0.38 mm²
Connection
Electrical connection - plug RJ45
Connector: 1 x RJ45, straight; Moulded body: PC
