- E18027

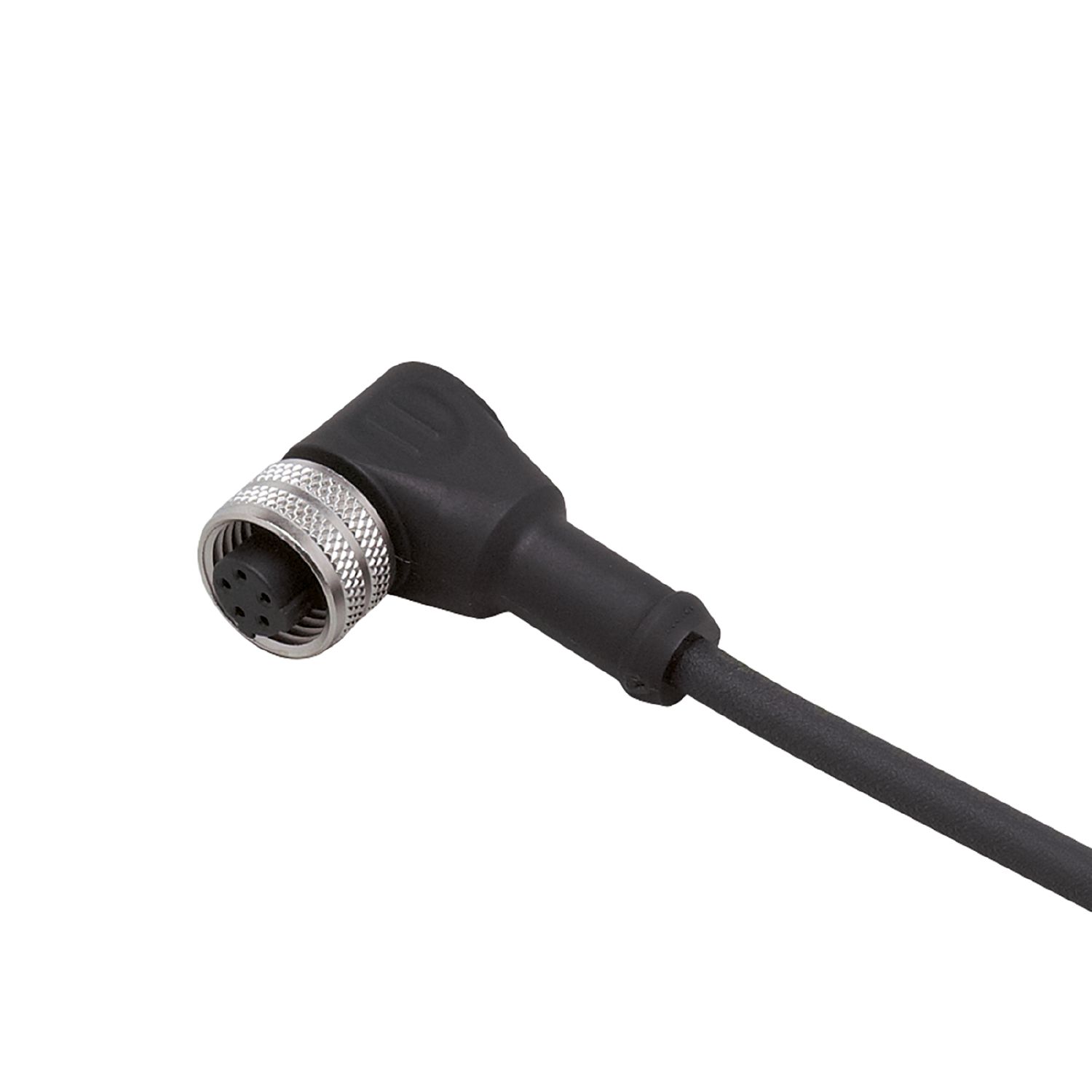

Connecting cable with socket
E18027
ADOAA050MSS0004A05
Connecting cable with socket
E18027
ADOAA050MSS0004A05
- Angled type for use where space is restricted
- Gold-plated contacts for reliable electrical connections
- Permanent, reliable sealing even when mounted without tools
- High protection rating for the requirements of harsh industrial environments
- Wide operating temperature range
Electrical data
| Operating voltage [V] | < 250 AC/DC |
|---|---|
| Max. current load total [A] | 4 |
Operating conditions
| Ambient temperature [°C] | -40...90 |
|---|---|
| Protection | IP 68 |
Mechanical data
| Weight [g] | 181.437 |
|---|---|
| Materials | TPU |
| Moulded-body material | TPU |
| Material nut | brass, nickel-plated |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable: 4 m, PUR, black, Ø 5.3 mm; 5 x 0.34 mm² (19 x Ø 0.16 mm ) / AWG 22 |
Electrical connection - socket
| Connection | Connector: 1 x 1/2", angled; coding: C; Moulded body: TPU; Locking: brass, nickel-plated |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E18027-00 — 27.05.2013 —
E18027 –
ADOAA050MSS0004A05
Electrical connection
Cable: 4 m, PUR, black, Ø 5.3 mm; 5 x 0.34 mm² (19 x Ø 0.16 mm ) / AWG 22
Electrical connection - socket
Connector: 1 x 1/2", angled; coding: C; Moulded body: TPU; Locking: brass, nickel-plated
Connection
- Core colours :
- BK =
- black
- GN =
- green
- RD =
- red
- WH =
- white
- YE =
- yellow
