IO-Link input/output module

AL2605

IOL MOD PL 8XMP/DX E M12 IP67

IO-Link input/output module

AL2605

IOL MOD PL 8XMP/DX E M12 IP67

Due to global supply chain issues, the availability shown below may not be correct, please call Customer Service to confirm: 855-436-2262

{{ifmVariantName}}

PDF data sheet
  • ce
  • iolink
Electrical data
Operating voltage [V] 18...30 DC
Current consumption [mA] 100; (US)
Protection class III
Additional voltage supply [V] 18...30 DC; (UA UAi)
Max. current consumption from additional supply [mA] 16000; (UA; UAi: 800 mA)
Inputs / outputs
Total number of inputs and outputs 16
Number of inputs and outputs Number of digital inputs: 16; Number of analogue inputs: 8; Number of digital outputs: 16
Inputs
Number of digital inputs 16; (configurable)
Input circuit of digital inputs PNP; (type 3 (IEC 61131-2))
Sensor supply of the inputs AUX (UA, UAi)
Power supply [V] 18...30
Number of analogue inputs 8; (configurable current/voltage input)
Analogue input (current) [mA] 4...20
Analogue input (voltage) [V] 0...10
Resolution of analogue input 16 Bit
Outputs
Number of digital outputs 16; (configurable)
Max. current load per output [mA] 2000
Max. current load outputs total [A] 16
Short-circuit protection yes
Actuator supply outputs AUX (UA)
Interfaces
Communication interface IO-Link
SDCI standard IEC 61131-9
Transmission type COM3 (230,4 kBaud)
IO-Link revision 1.1
SIO mode no
Required master port type A
Min. process cycle time [ms] 4
Supported DeviceIDs
Type of operation DeviceID
Factory setting: parametrisation via PDout 1315
Acyclic parametrisation 1316
Note
Parameterisation can be changed from cyclical to acyclical.
For further information please see the IODD PDF file under "Downloads"
Operating conditions
Ambient temperature [°C] -25...60
Storage temperature [°C] -25...70
Max. relative air humidity [%] 90
Max. height above sea level [m] 2000
Protection IP 65; IP 67
Protection rating (NEMA 250) 6P
Pollution degree 2
Chemical media
ISO 16750-5 AA, BA, BD, HLP, CC, DB, DC, DD, CA
NEMA 250 5.13.1 AA
Tests / approvals
EMC
EN 61000-6-2
EN 61000-6-3
IEC 61131-9
Shock resistance
DIN EN 60068-2-27
Vibration resistance
DIN EN 60068-2-64
DIN EN 60068-2-6
MTTF [years] 35
Mechanical data
Weight [g] 394

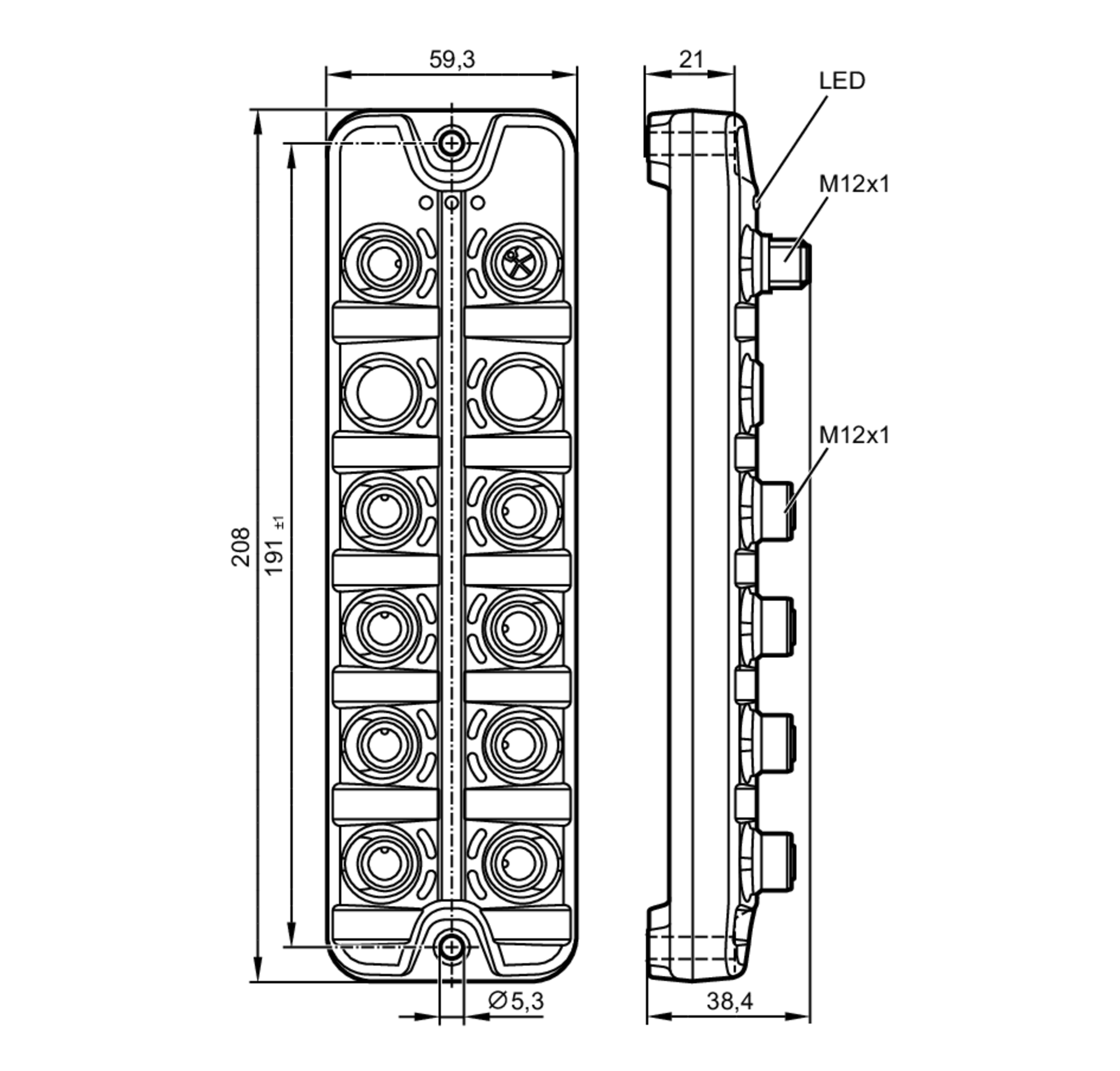

Dimensions [mm] 26 x 59.3 x 208
Materials housing: PA orange; socket: brass nickel-plated
Sealing material FKM
Tightening torque [Nm] < 0.8
Displays / operating elements
Display
operation 1 x LED, green
fault 1 x LED, red
function 1 x LED, yellow
Accessories
Accessories (optional)
protective cap for M12 sockets
Remarks
Pack quantity 1 pcs.
Electrical connection - AUX
X31 Connector: 1 x M12; coding: L
Electrical connection - IO-Link
X1 Connector: 1 x M12; coding: A
Electrical connection - inputs / outputs
X1.0...X1.7 Connector: 8 x M12; coding: A; Sealing: FKM
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — AL2605-00 — 21.02.2020 —
