IO-Link master with IoT interface

AL1352

IO-Link Master DL IoT 8P IP67

IO-Link master with IoT interface

AL1352

IO-Link Master DL IoT 8P IP67

  • For connection of up to eight IO-Link devices
  • Robust housing for use in harsh industrial environments
  • Reliable transmission of machine data, process parameters, and diagnostic data to the IT environment

Due to global supply chain issues, the availability shown below may not be correct, please call Customer Service to confirm: 855-436-2262

{{ifmVariantName}}

PDF data sheet
  • ce
  • ukca
  • iolink
Application
Application I/O modules for field applications
Daisy-chain function fieldbus interface
Electrical data
Operating voltage [V] 20...30 DC; (US ; to SELV/PELV)
Current consumption [mA] 300...3900; (US)
Protection class III
Sensor supply US
Max. current load total [A] 3.6
Inputs / outputs
Total number of inputs and outputs 8; (configurable)
Number of inputs and outputs Number of digital inputs: 8; Number of digital outputs: 8
Inputs
Number of digital inputs 8; (IO-Link Port Class A: 8 x 2)
Switching level high [V] 11...30
Switching level low [V] 0...5
Digital inputs protected against short circuits yes
Outputs
Number of digital outputs 8; (IO-Link Port Class A: 8 x 1)
Max. current load per output [mA] 300
Short-circuit proof yes
Interfaces
Communication interface Ethernet; IO-Link
Ethernet - Internet of Things
Transmission standard 10Base-T; 100Base-TX
Transmission rate 10 MBit/s; 100 MBit/s
Protocol MQTT JSON
Factory settings
IP address: 169.254.x.x
subnet mask: 255.255.0.0
gateway IP address: 0.0.0.0
MAC address: see type label
Note on interfaces
Secure protocol: HTTPS
IO-Link Master
Transmission type COM1 (4,8 kBaud); COM2 (38,4 kBaud); COM3 (230,4 kBaud)
IO-Link revision 1.1
Number of ports class A 8
Operating conditions
Ambient temperature [°C] -25...60
Storage temperature [°C] -25...85
Max. relative air humidity [%] 90
Protection IP 65; IP 66; IP 67
Protection rating (NEMA 250) 6P
Pollution degree 2
Chemical media
ISO 16750-5 AA, BA, BD, HLP, CC, DB, DC, DD, CA
NEMA 250 5.13.1 AA
Tests / approvals
EMC
EN 61000-6-2
EN 61000-6-4
Shock resistance
DIN EN 60068-2-27
Vibration resistance
DIN EN 60068-2-64 2009-04
DIN EN 60068-2-6 2008-10
MTTF [years] 92

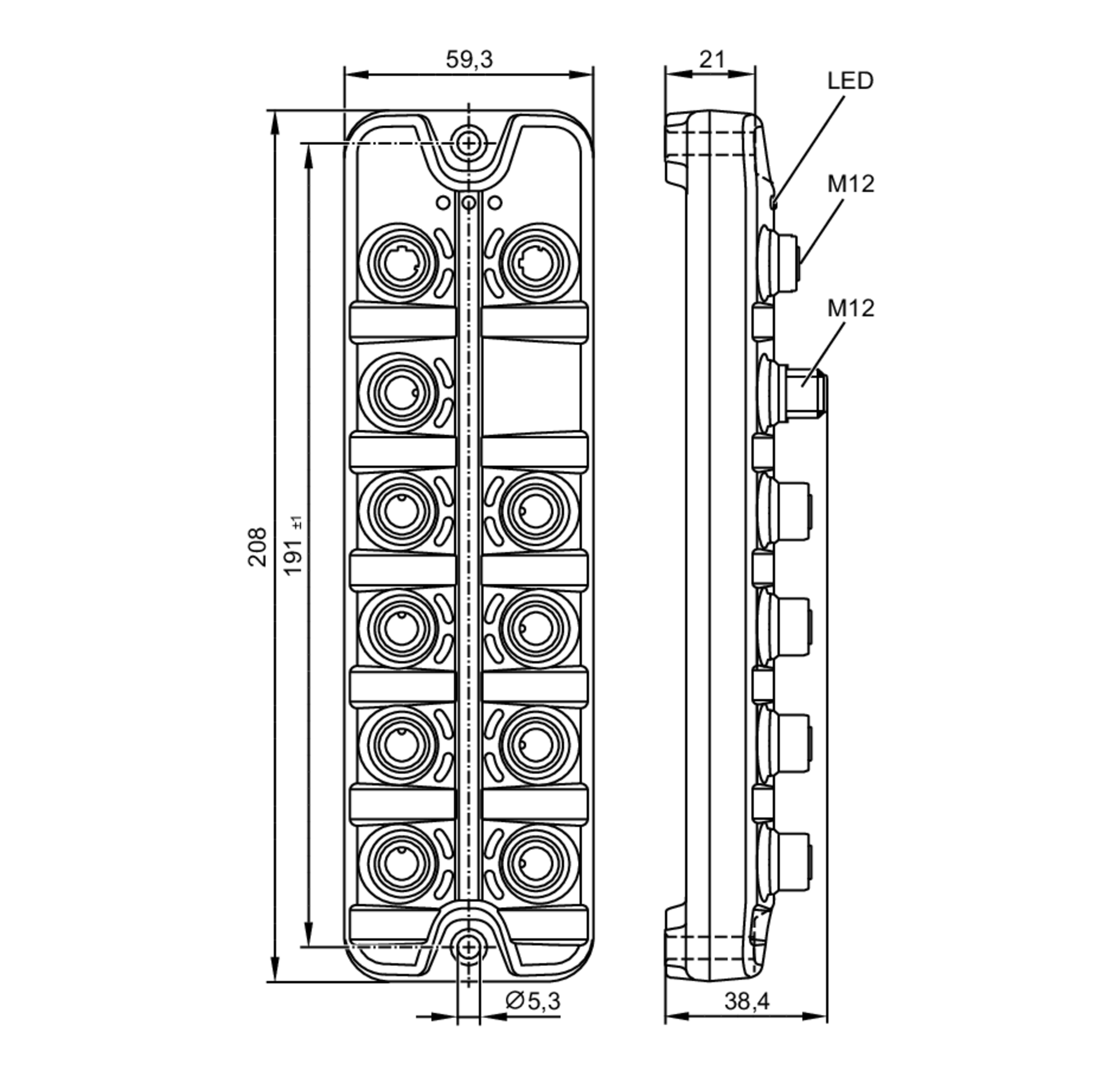

Mechanical data
Weight [g] 397
Materials housing: PA orange; socket: brass nickel-plated
Sealing material FKM
Remarks
Remarks
For further information please see the operating instructions.
Pack quantity 1 pcs.
Electrical connection - Ethernet
IoT X21, X22 Connector: M12; coding: D; Sealing: FKM
Electrical connection - Process connection
IO-Link Port Class A X01...X08 Connector: M12; coding: A; Sealing: FKM
Electrical connection - power supply
X31 Connector: M12; coding: A
