AS-Interface power supply

PSU-1AC/ASi-8A

AC1258

{{'OPTIONAL_INFO' | productAvailability | error}}

Dear customer,
Unfortunately, this data sheet is not available in the requested language. If you have any further questions, you can contact us by e-mail.

Best regards
Your ifm team

  • Reliably power supply for modules, sensors and actuators
  • High noise immunity and sufficient power reserves for the compensation of current peaks
  • Safe decoupling of interferences from the primary supply
  • Particularly space-saving design
  • Low heating of the control cabinet due to high efficiency
  • ce
  • asi
  • cul
  • cruus
Comprehensive technical data in pdf format

Technische Details
Electrical data
Frequency AC [Hz] 47...64
Operating voltage tolerance [%] 10
Operating voltage [V] automatic range selection
Nominal voltage AC [V] < 230
Input voltage AC [V] 100...120 / 200...240
Protection class I
Overvoltage protection yes; (< 36)
Max. power-on delay time [ms] 800
Power-on delay time [s] < 800
Output voltage AS-i [V] 30.5
Output power (permanent) [W] 244
Output power (peak) [W] 256
Note on output power (peak)
briefly to load bus capacities after power on
Power factor (nominal voltage 120 V AC / 60 Hz) 0.59
Power factor (nominal voltage 230 V AC / 50 Hz) 0.51
Power reserve [%] 5
Number of output circuits 1
Output current AS-i [A] 8
Max. residual ripple [mV] 100
Switch-on peak current (nominal voltage 120 V AC / 60 Hz) [A] 3
Switch-on peak current (nominal voltage 230 V AC / 50 Hz) [A] 3
Inrush current limitation yes
Efficiency (nominal voltage 120 V AC / 60 Hz) [%] 89.4
Efficiency (nominal voltage 230 V AC / 50 Hz) [%] 90.9
External input protection ≤ B-10 A / ≤ C-6 A
Derating [W/K] 6 (60...70 °C)
Mains buffering time (nominal voltage 120 V AC / 60 Hz) [ms] 44
Mains buffering time (nominal voltage 230 V AC / 50 Hz) [ms] 42
Input current (nominal voltage 120 V AC / 60 Hz) [A] 3.73
Input current (nominal voltage 230 V AC / 50 Hz) [A] 2.23
Power loss (nominal voltage 120 V AC / 60 Hz) [W] 28.9
Power loss (nominal voltage 230 V AC / 50 Hz) [W] 24.4
Back feeding protection [V] 35
Outputs
Short-circuit proof yes
Overload protection yes
Overload performance output current constant
Operating conditions
Ambient temperature [°C] -25...70
Note on ambient temperature
observe the free space for convection (see operating instructions)
Storage temperature [°C] -40...85
Max. relative air humidity [%] 95; (IEC 60068-2-30)
Protection IP 20
Degree of soiling 2; (IEC 62103: conductive soiling not permitted)
Tests / approvals
EMC
EN 61000-6-1
EN 61000-6-2
EN 61000-6-4
Vibration resistance
IEC 60068-2-6 ± 1,6 mm 2...17,8 Hz / 2 g 17,8...500 Hz
Shock resistance
IEC 60068-2-27 30 g 6 ms / 20 g 11 ms
AS-i classification
AS-i certificate 98501
Mechanical data
Weight [g] 898.5
Type of mounting rail; (TH35 (EN 60715))
Dimensions [mm] 124 x 62 x 120
Materials steel sheet
Displays / operating elements
Display
AS-i voltage LED, green
Remarks
Pack quantity 1 pcs.
Electrical connection
Connection screw terminals:
Diagrams and graphs
block diagram

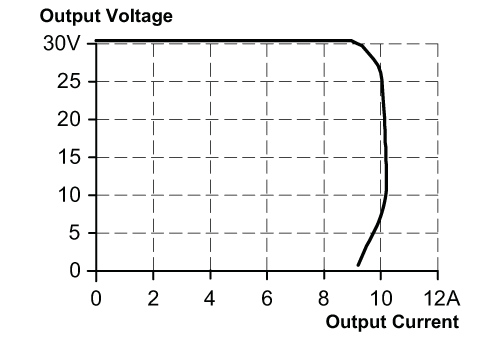

output characteristics

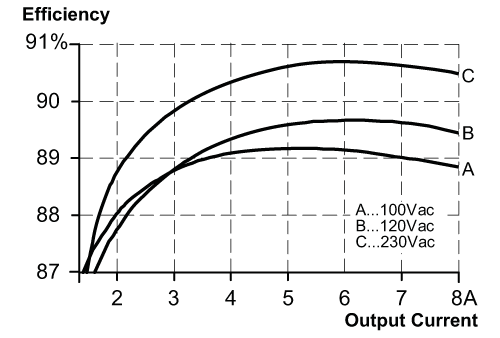

characteristic curve for degree of efficiency / power loss

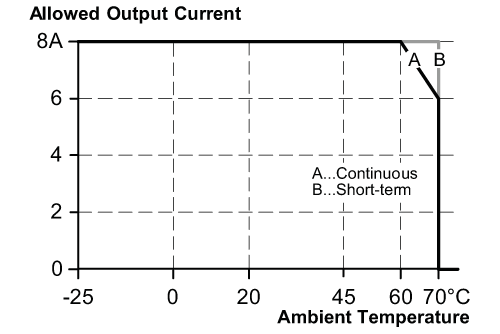

characteristic line for derating
characteristic line for mains buffering time
