Product characteristics
| Number of inputs and outputs | Number of digital outputs: 2 |
|---|---|
| Measuring range [°C] | -50...150 |
| Communication interface | IO-Link |
| Process connection | threaded connection G 1/4 external thread |
| Installation length EL [mm] | 25 |
Application
| Special feature | Gold-plated contacts | ||
|---|---|---|---|
| Measuring element | 1 x Pt 1000; (to DIN EN 60751, class A) | ||
| Media | liquids and gases | ||
| Pressure rating [bar] | 400 | ||
| Note on pressure rating |
|
Electrical data
| Operating voltage [V] | 18...32 DC; ("supply class 2" to cULus) |
|---|---|
| Current consumption [mA] | < 50 |
| Protection class | III |
| Reverse polarity protection | yes |
| Power-on delay time [s] | 1 |
| Integrated watchdog | yes |
Inputs / outputs
| Number of inputs and outputs | Number of digital outputs: 2 |
|---|
Outputs
| Total number of outputs | 2 |
|---|---|
| Output signal | switching signal; IO-Link; (configurable) |
| Electrical design | PNP/NPN |
| Number of digital outputs | 2 |
| Output function | normally open / normally closed; (parameterisable) |
| Max. voltage drop switching output DC [V] | 2.5 |
| Permanent current rating of switching output DC [mA] | 100 |
Measuring/setting range
| Measuring range [°C] | -50...150 |
|---|---|
| Set point SP [°C] | -49.8...150 |
| Reset point rP [°C] | -50...149.8 |
| In steps of [°C] | 0.1 |
| Resolution of switching output [K] | 0.1 |
|---|
Accuracy / deviations
| Switch point accuracy [K] | ± 0,3 |
|---|---|
| Temperature drift per 10 K [K] | 0.1 **) |
Response times
| Dynamic response T05 / T09 [s] | 1 / 3; (to DIN EN 60751) |
|---|
Software / programming
| Parameter setting options | hysteresis / window; normally open / normally closed; switching logic; switch-on/switch-off delay; Damping; Display unit |
|---|
Interfaces
| Communication interface | IO-Link |
|---|---|
| Transmission type | COM2 (38,4 kBaud) |
| IO-Link revision | 1.1 |
Operating conditions
| Ambient temperature [°C] | -40...80 | |||
|---|---|---|---|---|
| Note on ambient temperature |
|
|||
| Storage temperature [°C] | -40...100 | |||
| Protection | IP 69K |
Tests / approvals
| EMC |
|
||||
|---|---|---|---|---|---|
| Shock resistance |
|
||||
| Vibration resistance |
|
||||
| MTTF [years] | 542.6 | ||||
| UL approval |
|

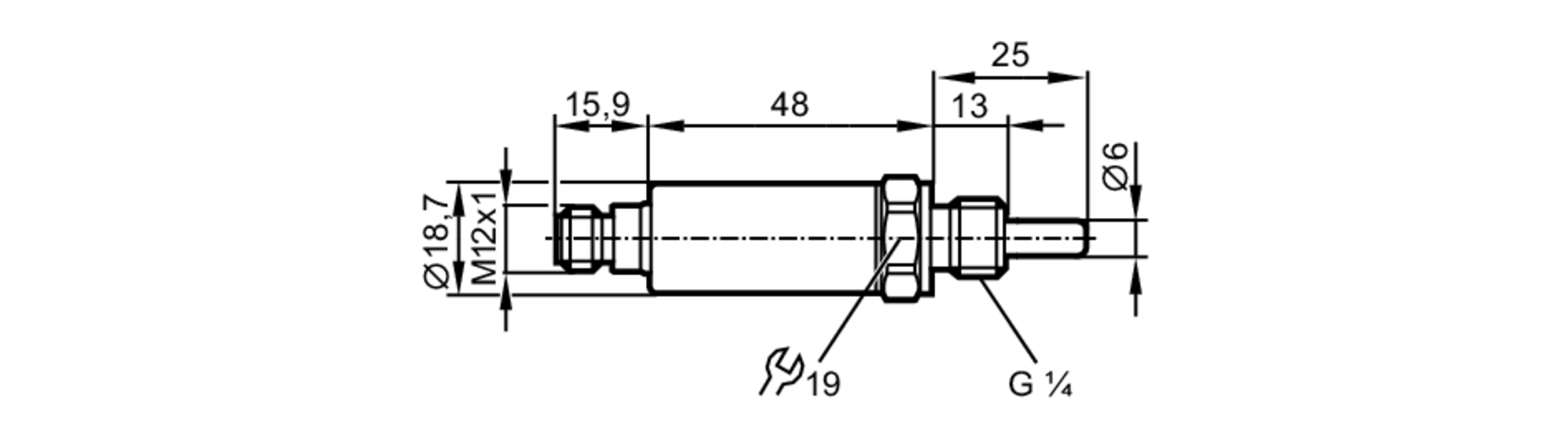

Mechanical data
| Weight [g] | 71.5 |
|---|---|
| Housing | cylindrical |
| Dimensions [mm] | Ø 18.7 / L = 88.9 |
| Materials | stainless steel (316L/1.4404); FKM |
| Materials (wetted parts) | stainless steel (316L/1.4404); O-ring: FKM |
| Tightening torque [Nm] | 35 |
| Process connection | threaded connection G 1/4 external thread |
| Probe diameter [mm] | 6 |
| Installation length EL [mm] | 25 |
Remarks
| Remarks |
|
|
|---|---|---|
| Pack quantity | 1 pcs. |

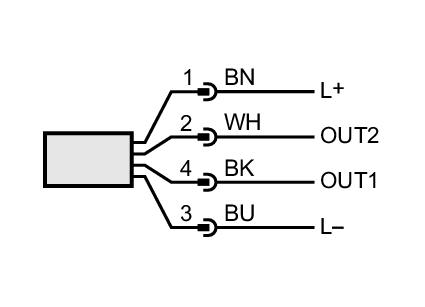

Electrical connection
| Connection | Connector: 1 x M12; coding: A; Contacts: gold-plated |
|---|
