- OG5047
Retro-reflective sensor
OG5047
OGP-FNKG/US-100
Retro-reflective sensor
OG5047
OGP-FNKG/US-100
Article no longer available - archive entry
Alternative articles: OGP503 Product comparison: OG5047 / OGP503 When selecting an alternative article and accessories please note that technical data may differ!
| Product characteristics | |||||||
|---|---|---|---|---|---|---|---|
| Type of light | red light | ||||||
| Housing | threaded type | ||||||
| Application | |||||||
| Special feature | Gold-plated contacts; polarisation filter; Function check output | ||||||
| Function principle | Retro-reflective sensor | ||||||
| Electrical data | |||||||
| Operating voltage [V] | 10...36 DC | ||||||
| Current consumption [mA] | < 32 | ||||||
| Protection class | II | ||||||
| Reverse polarity protection | yes | ||||||
| Type of light | red light | ||||||
| Wave length [Nm] | 660 | ||||||
| Outputs | |||||||
| Electrical design | NPN | ||||||
| Output function | light-on/dark-on mode; (parameterisable) | ||||||
| Max. voltage drop switching output DC [V] | 2.5 | ||||||
| Function check output | yes | ||||||
| Max. voltage drop of function check output [V] | 3.5 | ||||||
| Max. current load for function check output [mA] | 10 | ||||||
| Permanent current rating of switching output DC [mA] | 200 | ||||||
| Switching frequency DC [Hz] | 500 | ||||||
| Short-circuit protection | yes | ||||||
| Type of short-circuit protection | pulsed | ||||||
| Overload protection | yes | ||||||
| Detection zone | |||||||
| Range [m] | < 3; (Prismatic reflector Ø 80 E20005) | ||||||
| Range adjustable | yes | ||||||
| Max. light spot diameter [mm] | 262 | ||||||
| Light spot dimensions refer to | at maximum range | ||||||
| Polarisation filter available | yes | ||||||
| Operating conditions | |||||||
| Ambient temperature [°C] | -25...80 | ||||||
| Protection | IP 67 | ||||||
| Tests / approvals | |||||||
| EMC |
|
||||||
| Mechanical data | |||||||
| Housing | threaded type | ||||||

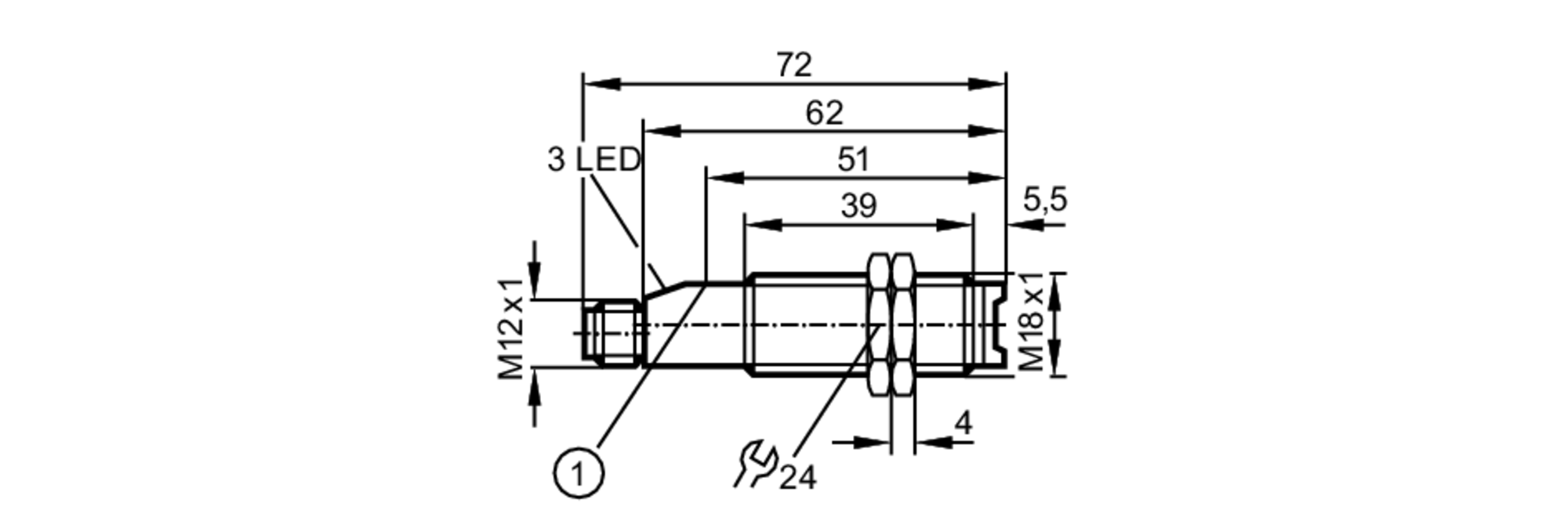

| Dimensions [mm] | M18 x 1 / L = 72 | ||||||
| Thread designation | M18 x 1 | ||||||
| Materials | PBT | ||||||
| Lens material |
|
||||||
| Displays / operating elements | |||||||
| Display |
|
||||||
| Accessories | |||||||
| Items supplied |
|
||||||
| Remarks | |||||||
| Pack quantity | 1 pcs. | ||||||
| Electrical connection | |||||||
| Connection | Connector: 1 x M12; Contacts: gold-plated | ||||||
| Diagrams and graphs | |||||||

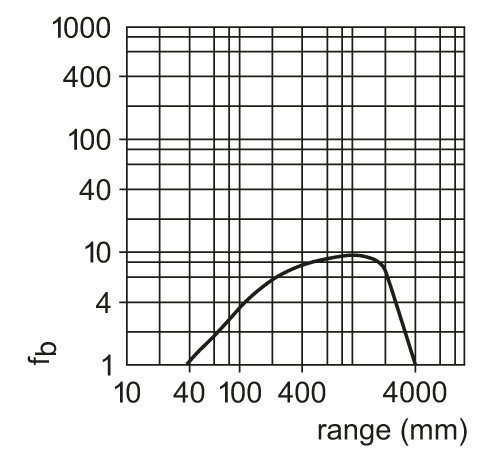

| excess gain graph |
|
||||||
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — OG5047-00 — 06.03.2003 —
|
|||||||
OG5047 –
OGP-FNKG/US-100
- 1
- pushbutton
Electrical connection
Connector: 1 x M12; Contacts: gold-plated
Connection
- 2
- Function check output
