- E60190
Connecting cable with socket
E60190
ADOGK170MSL005B17
Connecting cable with socket
E60190
ADOGK170MSL005B17
- For the connection of encoders
- 17-pole connection
- High protection rating for the requirements of harsh industrial environments
- Reliable transmission of the sensor signals
- Wide operating temperature range
Article no longer available - archive entry
| Electrical data | |
|---|---|
| Operating voltage [V] | 4.5...30 DC |
| Operating conditions | |
| Ambient temperature [°C] | -10...85 |
| Protection | IP 67 |
| Mechanical data | |
| Weight [g] | 550 |

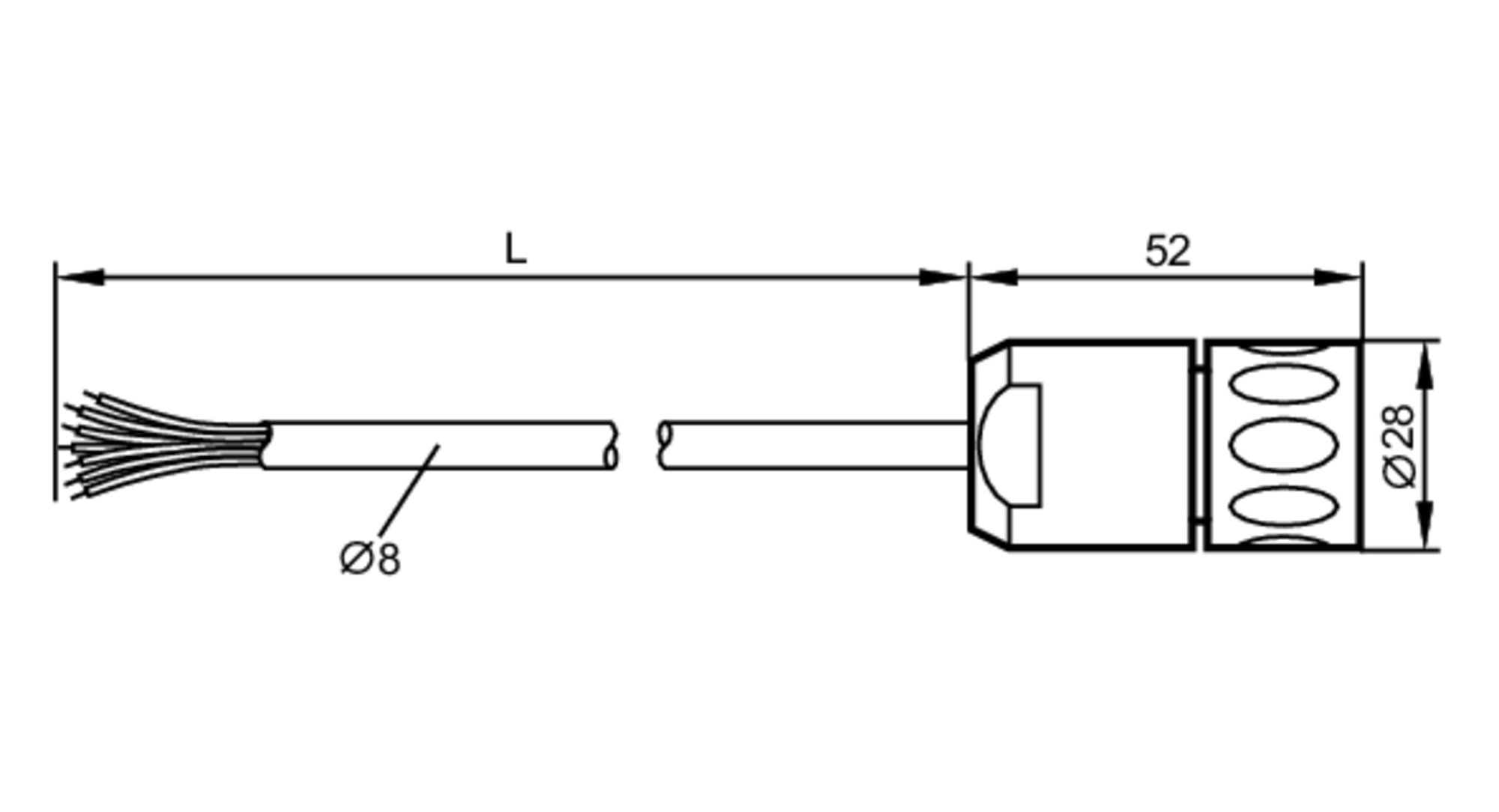

| Dimensions [mm] | 28 x 28 x 52 |
| Materials | brass in plastic sheath; PA 6.6 black |
| Moulded-body material | brass / PA 6.6, in plastic sheath |
| Material nut | brass, in plastic sheath / PA 6.6, in plastic sheath |
| Remarks | |
| Pack quantity | 1 pcs. |
| Electrical connection | |
| Cable: 5 m, PUR, Ø 8 mm; 13 x 0.14 mm² + 4 x 0.5 mm² | |
| Electrical connection - socket | |
| Connection | Connector: 1 x M23, straight; Moulded body: brass / PA 6.6, in plastic sheath; Locking: brass, in plastic sheath |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E60190-00 — 06.03.2003 —
|
|
E60190 –
ADOGK170MSL005B17
Electrical connection
Cable: 5 m, PUR, Ø 8 mm; 13 x 0.14 mm² + 4 x 0.5 mm²
Electrical connection - socket
Connector: 1 x M23, straight; Moulded body: brass / PA 6.6, in plastic sheath; Locking: brass, in plastic sheath

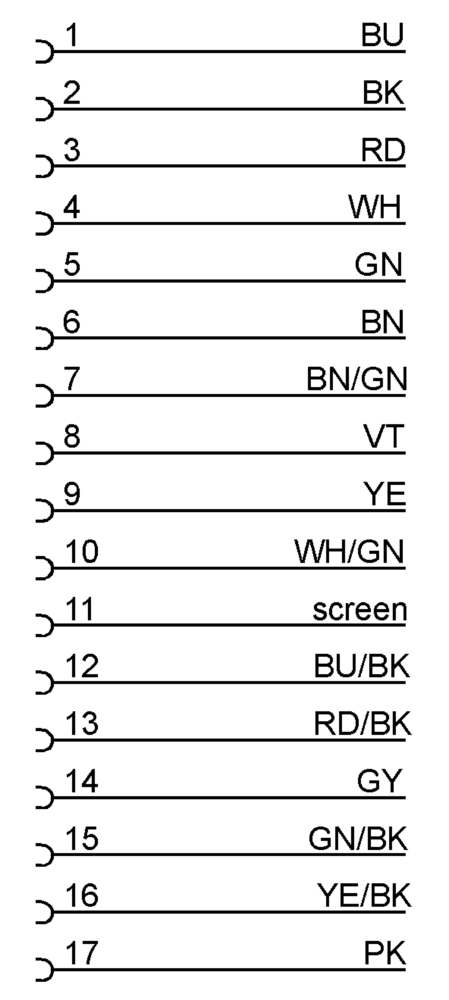

Connection
- Core colours :
- BK =
- black
- BN =
- brown
- BU =
- blue
- GN =
- green
- GY =
- grey
- PK =
- pink
- RD =
- red
- VT =
- lilac
- WH =
- white
- YE =
- yellow
- screen =
- screen
