Jumper cable with valve plug
E10678
VVSAC041--S0001B03STGH040MSS
Jumper cable with valve plug
E10678
VVSAC041--S0001B03STGH040MSS
Article no longer available - archive entry
Alternative articles: E11438 Product comparison: E10678 / E11438 When selecting an alternative article and accessories please note that technical data may differ!
Electrical data
| Operating voltage [V] | < 24 AC/DC |
|---|
Operating conditions
| Ambient temperature [°C] | -25...90 |
|---|---|
| Protection | IP 65 |
Mechanical data
| Materials | TPU |
|---|---|
| Moulded-body material | TPU |
| Material nut | brass, nickel-plated |
Displays / operating elements
| Display |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|

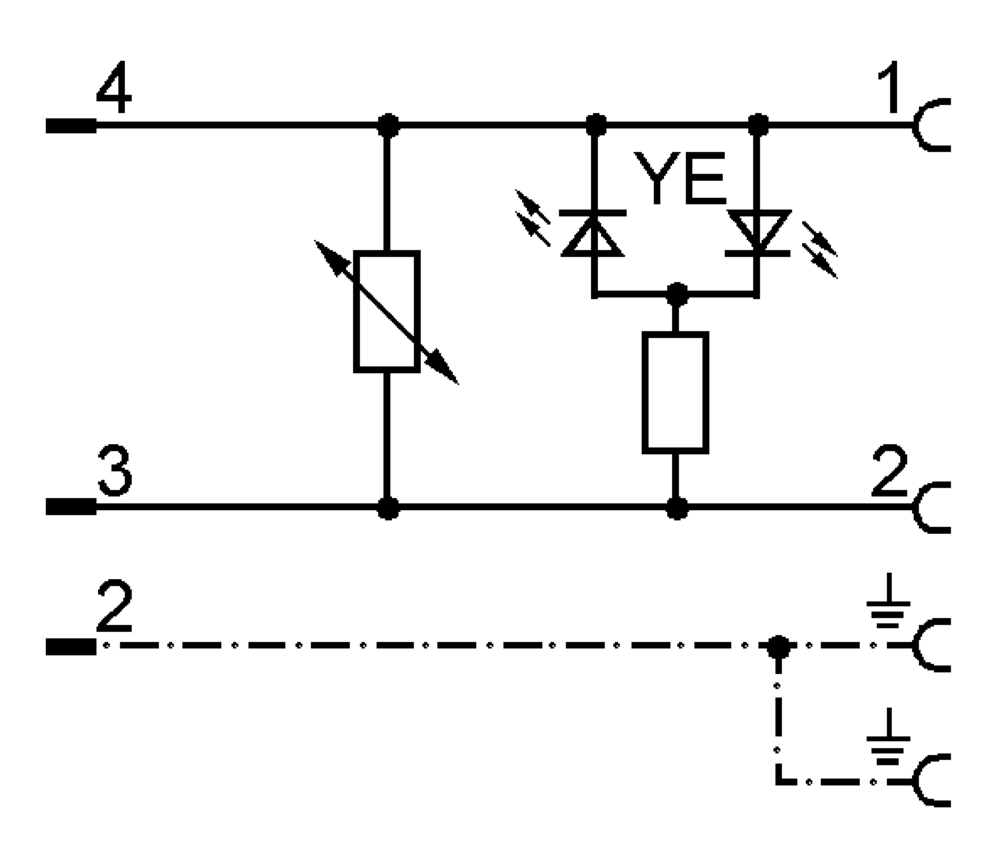

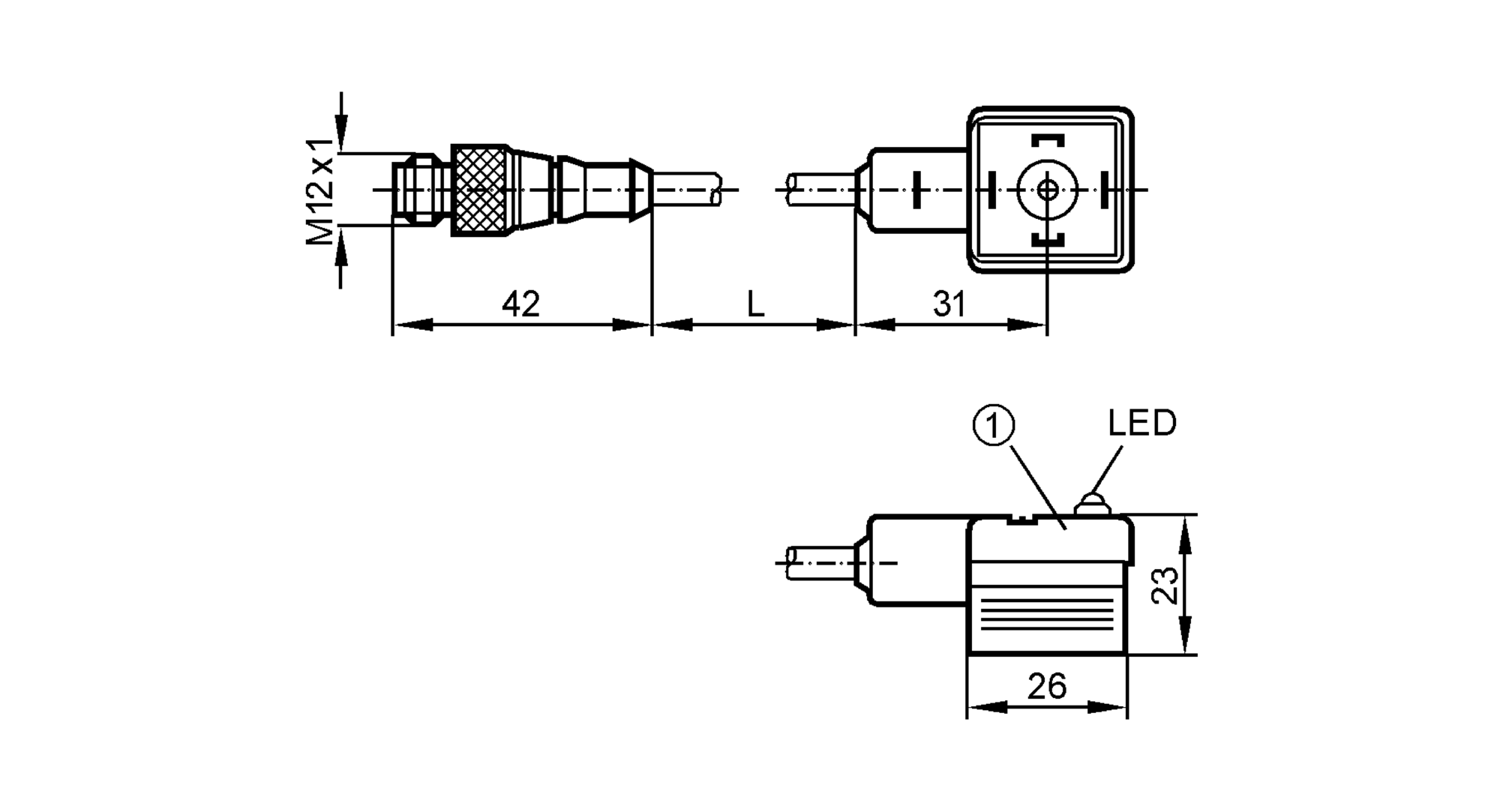

Electrical connection - plug
| Connector: 1 x M12, straight; Moulded body: TPU; Locking: brass, nickel-plated |
Electrical connection
| Connection | Cable: 1 m, PUR; 3 x 0.34 mm² |
|---|
Electrical connection - socket
| Connector: 1 x valve type A DIN, angled; Moulded body: TPU; Locking: brass, nickel-plated |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E10678-00 — 06.03.2003 —
E10678 –
VVSAC041--S0001B03STGH040MSS
- 1
- black
Electrical connection - plug
Connector: 1 x M12, straight; Moulded body: TPU; Locking: brass, nickel-plated
Electrical connection
Cable: 1 m, PUR; 3 x 0.34 mm²
Connection
Electrical connection - socket
Connector: 1 x valve type A DIN, angled; Moulded body: TPU; Locking: brass, nickel-plated
