- E10424
Connecting cable with socket
E10424
ADOAH042MSS0015A03
Connecting cable with socket
E10424
ADOAH042MSS0015A03
Article no longer available - archive entry
Electrical data
| Operating voltage [V] | 10...30 DC |
|---|
Outputs
| Electrical design | PNP |
|---|
Operating conditions
| Ambient temperature [°C] | -25...90 |
|---|---|
| Protection | IP 67 |
Mechanical data
| Dimensions [mm] | 27 x 15 x 39 |
|---|---|
| Materials | TPU transparent |
| Moulded-body material | TPU, transparent |
| Material nut | brass, nickel-plated |
Displays / operating elements
| Display |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable: 15 m, PUR / PVC, orange, Ø 5 mm; 3 x 0.34 mm² (42 x Ø 0.1 mm ) |
Electrical connection - socket
| Connection | Connector: 1 x M12, angled; Moulded body: TPU, transparent; Locking: brass, nickel-plated; Tightening torque: 0.5 Nm |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E10424-00 — 13.01.2017 —
E10424 –
ADOAH042MSS0015A03
Electrical connection
Cable: 15 m, PUR / PVC, orange, Ø 5 mm; 3 x 0.34 mm² (42 x Ø 0.1 mm )
Electrical connection - socket
Connector: 1 x M12, angled; Moulded body: TPU, transparent; Locking: brass, nickel-plated; Tightening torque: 0.5 Nm

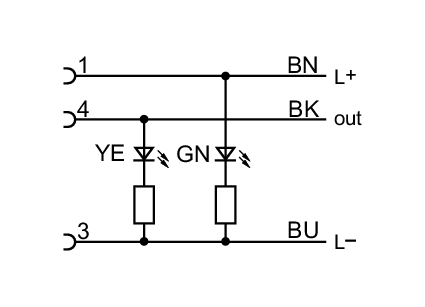

Connection
- Core colours :
- BN =
- brown
- BK =
- black
- BU =
- blue
