OA5109

Diffuse reflection sensor

OAT-FCKG/T

{{'OPTIONAL_INFO' | productAvailability | error}}

Dear customer,
Unfortunately, this data sheet is not available in the requested language. If you have any further questions, you can contact us by e-mail.

Best regards
Your ifm team

Download
Technische Details
Product characteristics
Type of light infrared light
Housing rectangular
Dimensions [mm] 90 x 30 x 70
Application
Function principle Diffuse reflection sensor
Electrical data
Operating voltage [V] 10...36 DC
Current consumption [mA] < 50
Protection class II
Reverse polarity protection yes
Type of light infrared light
Wave length [nm] 880
Outputs
Electrical design PNP/NPN
Output function light-on/dark-on mode; (parameterisable)
Function check output yes
Max. current load for function check output [mA] 10
Permanent current rating of switching output DC [mA] 250
Max. current load in dual output mode [mA] 100
Switching frequency DC [Hz] 300
Short-circuit protection yes
Type of short-circuit protection pulsed
Overload protection yes
Time function [s] 0.5...10
Detection zone
Range [mm] 5...1500; (white paper 200 x 200 mm)
Range adjustable yes
Max. light spot diameter [mm] 370
Light spot dimensions refer to at maximum range
Operating conditions
Ambient temperature [°C] -25...60
Protection IP 65
Tests / approvals
EMC
EN 60947-5-2
EN 55011 class B
MTTF [years] 357
Mechanical data
Weight [g] 0.286
Housing rectangular
Dimensions [mm] 90 x 30 x 70
Materials PPO modified
Lens material
PMMA
Displays / operating elements
Display
switching status 1 x LED, yellow
operation 1 x LED, green
function 1 x LED, red
Operating elements
on-delay or off-delay selectable via slide switch
Accessories
Accessories (supplied)
Angle bracket: 1 x, E20514
screwdrivers
Remarks
Pack quantity 1 pcs.
Electrical connection
Connection terminals: ...1.5 mm²; Cable sheath: Ø 4.5...10 mm; Cable gland: M16 X 1.5
Diagrams and graphs

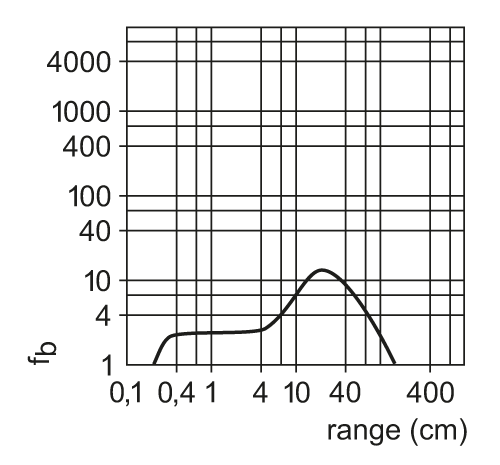

excess gain graph
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — OA5109-00 — 06.03.2003 —
