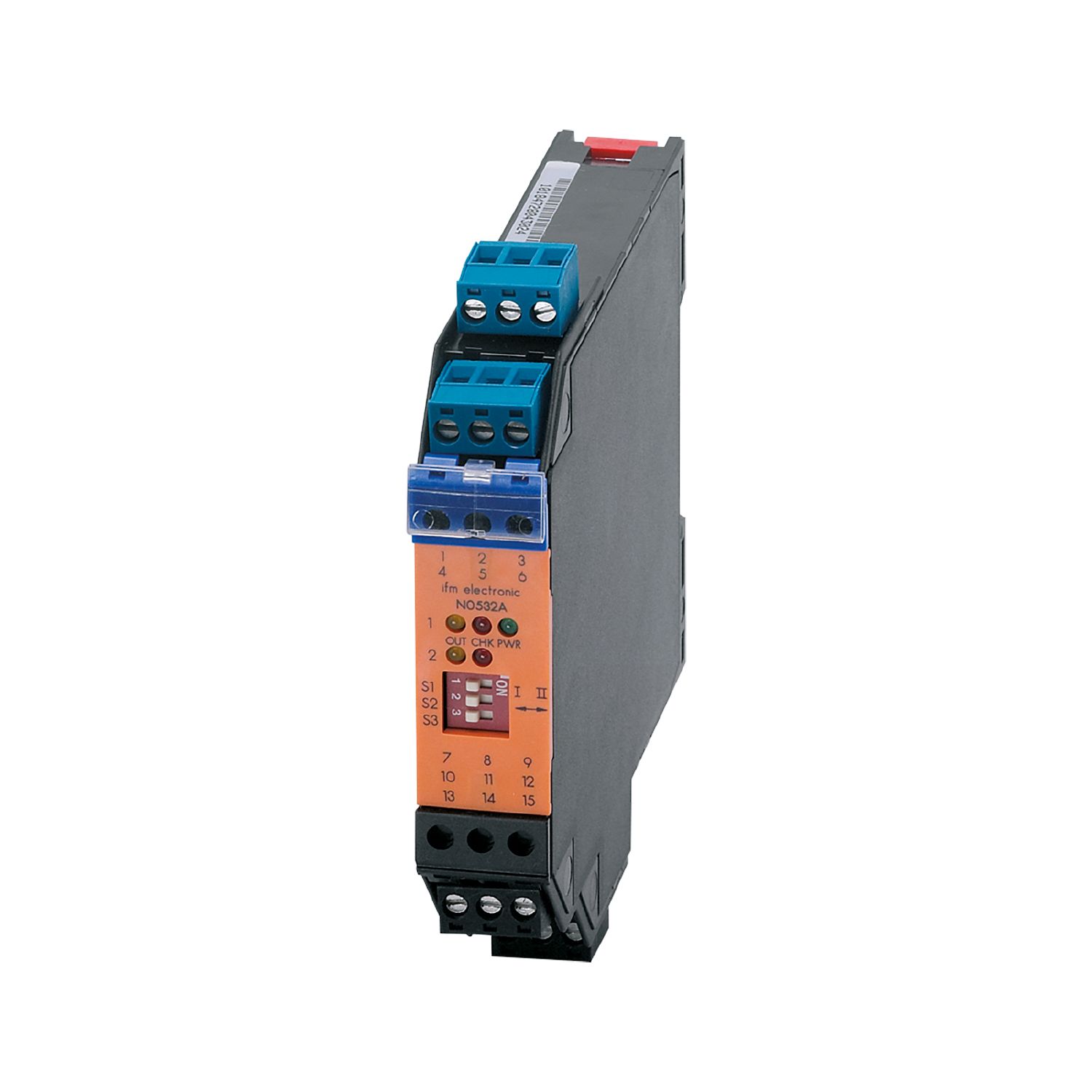

Product characteristics
| Number of inputs and outputs | Number of digital outputs: 2 |
|---|
Application
| Application | short-circuit monitoring; Wire monitoring |
|---|
Electrical data
| Operating voltage tolerance [%] | -15...25 |
|---|---|
| Operating voltage [V] | 24 DC |
| Current consumption [mA] | < 50 |
| Number of channels | 2 |
Inputs / outputs
| Number of inputs and outputs | Number of digital outputs: 2 |
|---|
Outputs
| Electrical design | opto coupler; (bipolar; Voltage: max. 40 V DC) |
|---|---|
| Number of digital outputs | 2 |
| Max. voltage drop switching output DC [V] | 3 |
| Max. current load per output [mA] | 100 |
| Switching frequency DC [Hz] | 5000 |
| Short-circuit proof | yes |
Operating conditions
| Ambient temperature [°C] | -20...60 |
|---|---|
| Protection | IP 20 |
Tests / approvals
| Approval | PTB 02 ATEX 2037; TIIS TC16049; IECEx PTB 06.0038 | ||||
|---|---|---|---|---|---|
| ATEX marking |
|
||||
|
|
|||||
| EMC |
|
||||
| MTTF [years] | 426 |
Mechanical data
| Weight [g] | 172 |
|---|
Displays / operating elements
| Display |
|
|---|
Remarks
| Remarks |
|
||
|---|---|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connection | terminals: ...2.5 mm² |
|---|
Other data
Maximum values for control circuit
| in protection rating intrinsic safety | [EEx ia] IIC | [EEx ia] IIB | [EEx ib] IIC | [EEx ib] IIB |
| Voltage [V] | 10.5 | 10.5 | 10.5 | 10.5 |
| Current [mA] | 13 | 13 | 13 | 13 |
| Power [mW] | 34 | 34 | 34 | 34 |
| External inductance [mH] | 200 | 740 | 200 | 740 |
| External capacitance [µF] | 2.4 | 16.8 | 2.4 | 16.8 |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — EN-GB — N0532A — 02.12.2021 —
