Cooling water control panel

ZZ0600

FLUID MONITORING SYSTEM

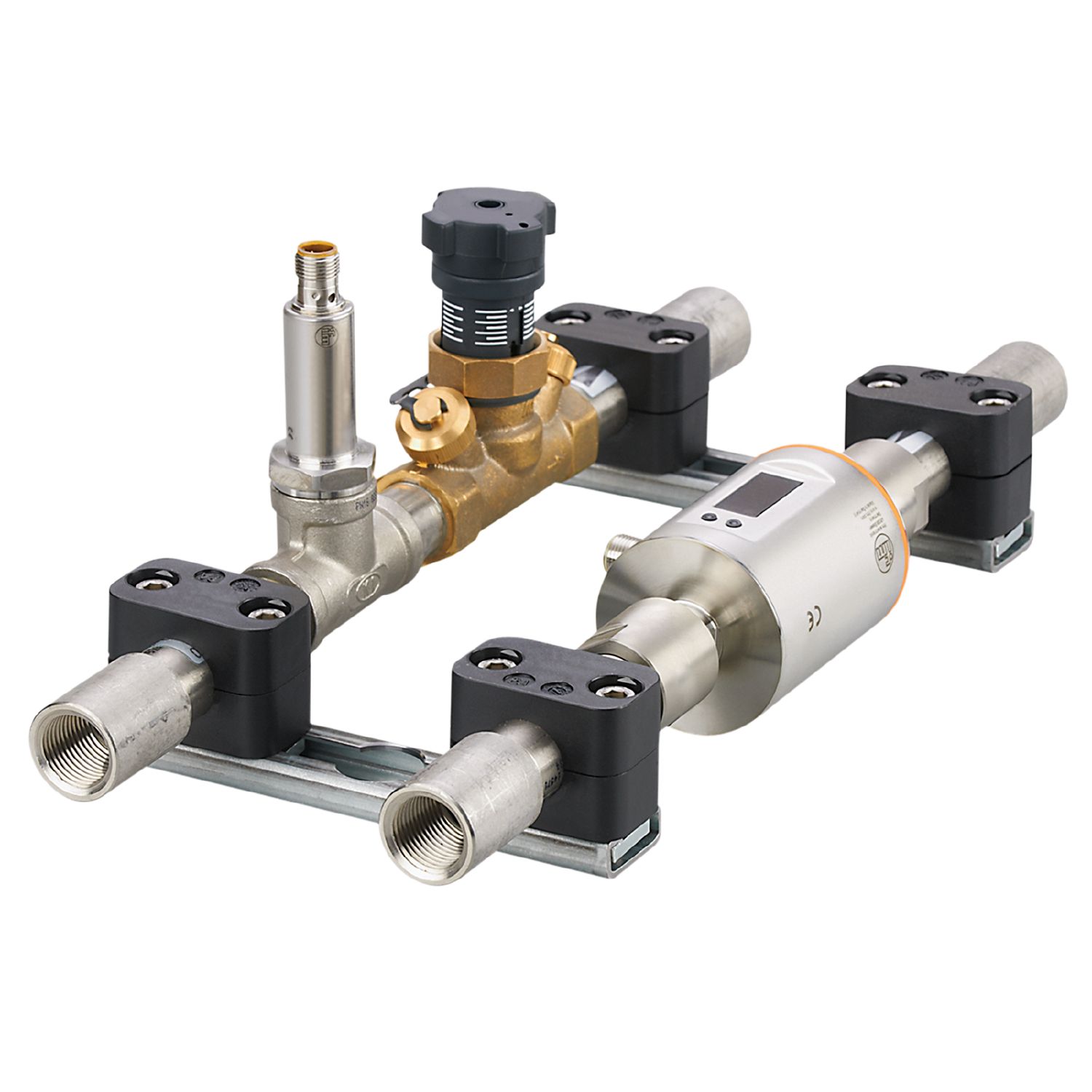

Cooling water control panel ZZ0600

Cooling water control panel

ZZ0600

FLUID MONITORING SYSTEM

  • ce
  • ukca
Product characteristics
Process connection for welding gun
Process connection threaded connection G 1/2 internal thread
Process connection for water supply
Process connection threaded connection G 1/2 internal thread
Flow monitoring
Measuring range [l/min] 0.1...25
Application
Special feature Gold-plated contacts
Application Industrial applications / factory automation; cooling water control
Installation connection to pipe by means of an adapter; tube connection
Measuring parameters flow; temperature; totaliser
Control manual
Media conductive liquids; hydrous media; glycol solutions
Medium temperature [°C] -10...70
Components
Magnetic-inductive flow meter, SM6000
Temperature transmitter, TA2405
regulating valve
Outputs
Output signal switching signal; analogue signal; Pulse output; IO-Link (configurable)
Output function normally open / normally closed; (parameterisable)
Measuring/setting range
Flow monitoring
Measuring range [l/min] 0.1...25
Temperature monitoring
Measuring range [°C] -50...150
Operating conditions
Ambient temperature [°C] -10...50
Storage temperature [°C] -25...80
Protection IP 67; (sensors)
Tests / approvals
Pressure Equipment Directive Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request
Mechanical data
Weight [g] 2662.35
Type of mounting Mounting bracket
Materials stainless steel (316L/1.4404); PEI; PBT-GF20; PC; FKM; TPE; PBT; gunmetal (2.1096.01)
Materials (wetted parts) stainless steel (316L/1.4404); PEEK; FKM; NBR; PVDF
Process connection for welding gun
Process connection threaded connection G 1/2 internal thread
Process connection for water supply
Process connection threaded connection G 1/2 internal thread
Remarks
Pack quantity 1 pcs.
Electrical connection
Connector: 2 x M12; Contacts: gold-plated
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — ZZ0600-01 — 15.08.2022 —
