  6. VSP02A

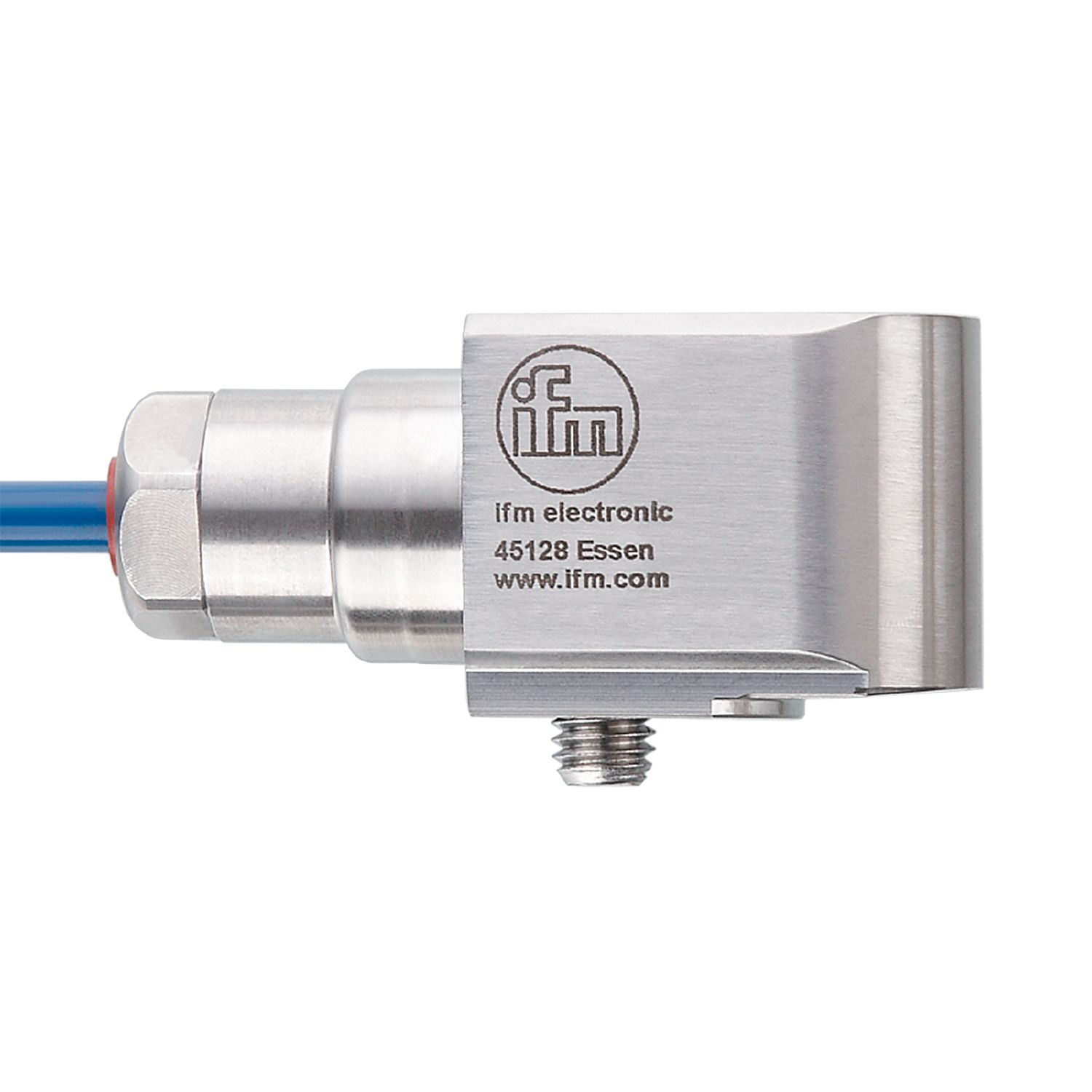

Acceleration sensor



{{'OPTIONAL_INFO' | productAvailability | error}}

Dear customer,
Unfortunately, this data sheet is not available in the requested language. If you have any further questions, you can contact us by e-mail.

Best regards
Your ifm team

  • For applications in hazardous areas
  • Protection against permanent machine overload and unexpected standstill
  • For connection to a diagnostic electronics for vibration sensors
  • Large operating temperature range and high protection rating for the requirements of harsh industrial environments
  • Compact and robust stainless steel housing with high mechanical overload protection
  • ce
  • iec
Comprehensive technical data in pdf format

Technische Details
Design for connection to external diagnostic electronics VSExxx
Electrical data
Switching amplifiers connection to intrinsically safe supply isolators (Ex ia)
Operating voltage [V] 10...12 DC
Current consumption [mA] 0.5...8
Protection class III
Reverse polarity protection yes
Max. load [Ω] 200
Short-circuit protection yes
Overload protection yes
Measuring/setting range
Measuring range of vibration [g] -50...50
Frequency range [Hz] 2...10000
Number of measurement axes 1
Operating conditions
Ambient temperature [°C] -55...90
Protection IP 68; (1D application: IP 65)
Tests / approvals
Approval Baseefa12ATEX0247; IECEx BAS 12.0132
ATEX marking I M1 Ex ia I Ma (-55°C < Ta < +90°C)
EN 61000-6-2 2005
EN 61000-6-4 2007
Shock resistance
5000 g
Mechanical data
Weight [g] 669
Type of mounting M8 x 1,25
Dimensions [mm] 30 x 25.5 x 64.7
Materials housing: stainless steel
Tightening torque [Nm] 8
Accessories (optional)
Safety barrier ZB0633
Pack quantity 1 pcs.
Electrical connection
Cable: 10 m, PUR
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — EN-GB — VSP02A — 15.12.2015 —
