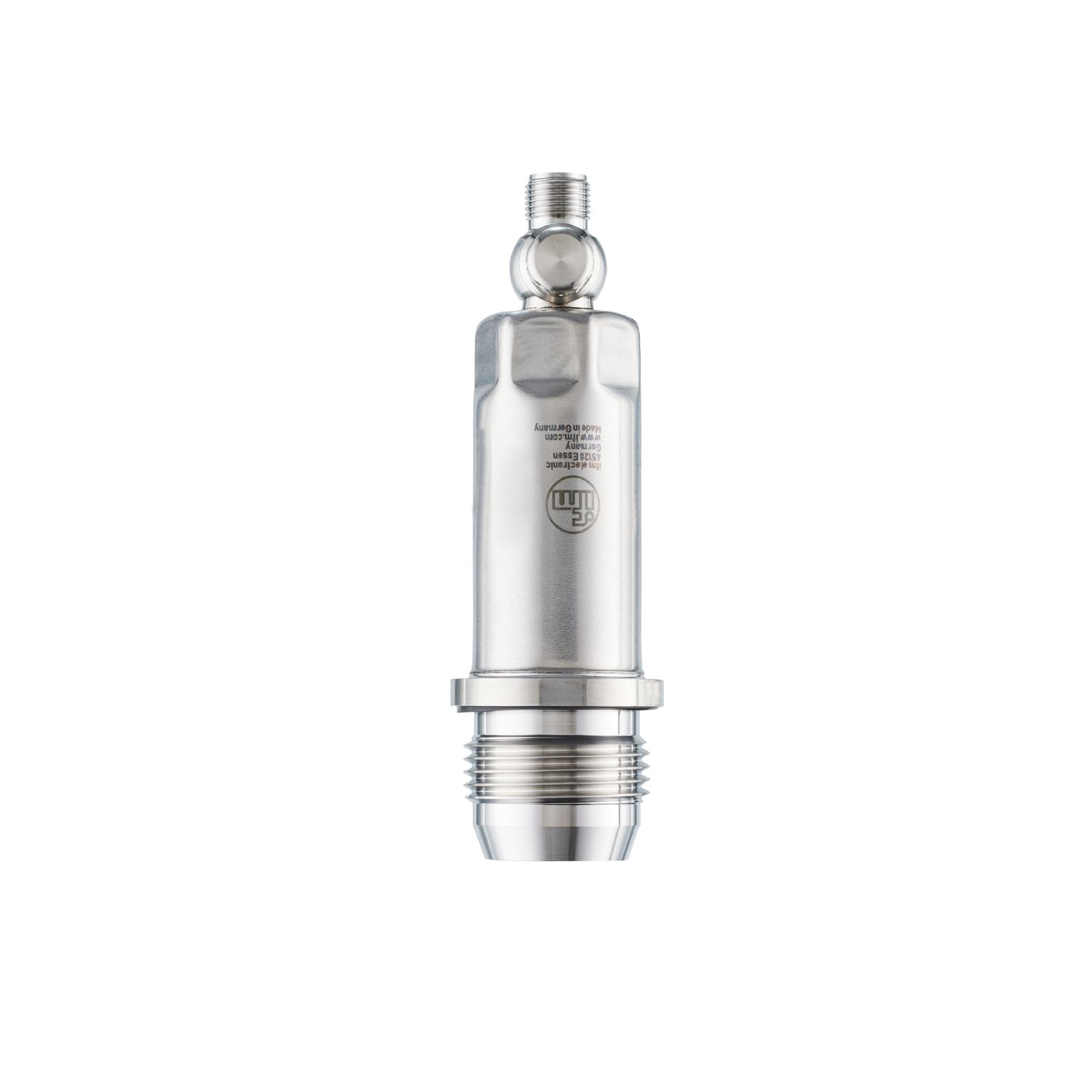

Flush pressure sensor
PM1603
PM-025-REA01-E-ZVG/US
Flush pressure sensor
PM1603
PM-025-REA01-E-ZVG/US
- Robust stainless steel housing for use in the food and beverage industry
- Hygienic, flush design
- Resistant to high-pressure cleaning with aggressive cleaning agents
- High temperature resistance and high protection rating
Product characteristics
| Number of inputs and outputs | Number of analogue outputs: 1 | |||
|---|---|---|---|---|
| Measuring range |
|
|||
| Process connection | threaded connection G 1 external thread sealing cone |
Application
| Special feature | Gold-plated contacts | |||
|---|---|---|---|---|
| Measuring element | ceramic-capacitive pressure measuring cell | |||
| Temperature monitoring | no | |||
| Application | flush mountable for the food and beverage industry | |||
| Media | viscous media and liquids with suspended particles; liquids and gases | |||
| Medium temperature [°C] | -25...150 | |||
| Min. bursting pressure |
|
|||
| Pressure rating |
|
|||
| Vacuum resistance [mbar] | -1000 | |||
| Type of pressure | relative pressure; vacuum | |||
| No dead space | yes | |||
| MAWP (for applications according to CRN) [bar] | 45 |
Electrical data
| Operating voltage [V] | 18...30 DC |
|---|---|
| Min. insulation resistance [MΩ] | 100; (500 V DC) |
| Protection class | III |
| Reverse polarity protection | yes |
| Integrated watchdog | yes |
| Current consumption [mA] | 3.5...21.5 |
|---|---|
| Power-on delay time [s] | 1 |
| Current consumption [mA] | < 45 |
|---|---|
| Power-on delay time [s] | 0.5 |
Inputs / outputs
| Number of inputs and outputs | Number of analogue outputs: 1 |
|---|
Outputs
| Total number of outputs | 2 |
|---|---|
| Output signal | analogue signal; IO-Link; (configurable) |
| Number of analogue outputs | 1 |
| Analogue current output [mA] | 4...20; (scalable) |
| Max. load [Ω] | 700; (Ub = 24 V; (Ub - 9 V) / 21.5 mA) |
| Short-circuit proof | yes |
| Overload protection | yes |
Measuring/setting range
| Measuring range |
|
|||
|---|---|---|---|---|
| Analogue start point |
|
|||
| Analogue end point |
|
|||
| In steps of |
|
|||
| Factory setting |
|
Accuracy / deviations
| Repeatability [% of the span] | < ± 0,1; (with temperature fluctuations < 10 K; Turn down 1:1) | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Characteristics deviation [% of the span] | < ± 0,2; (linearity incl. hysteresis and repeatability, limit value setting to DIN EN IEC 62828-1) | ||||||||
| Linearity deviation [% of the span] | < ± 0,15; (Turn down 1:1) | ||||||||
| Hysteresis deviation [% of the span] | < ± 0,15; (Turn down 1:1) | ||||||||
| Long-term stability [% of the span] | < ± 0,1; (Turn down 1:1; per year) | ||||||||
| Total deviation over temperature range |
|
||||||||
| Notes on the accuracy / deviation | for further details see section Diagrams and graphs |
Response times
| Damping for the analogue output dAA [s] | 0...4 |
|---|
| Step response time analogue output [ms] | 30 |
|---|
| Step response time analogue output [ms] | 7 |
|---|
Interfaces
| Communication interface | IO-Link | ||||
|---|---|---|---|---|---|
| Transmission type | COM2 (38,4 kBaud) | ||||
| IO-Link revision | 1.1 | ||||
| Profiles | Digital Measuring Sensor (0x000A), Identification and Diagnosis (0x4000) | ||||
| SIO mode | no | ||||
| Required master port type | A | ||||
| Process data analogue | 3 | ||||
| Min. process cycle time [ms] | 3.2 | ||||
| Supported DeviceIDs |
|
Operating conditions
| Ambient temperature [°C] | -25...80 |
|---|---|
| Storage temperature [°C] | -40...100 |
| Protection | IP 67; IP 68; IP 69K |
Tests / approvals
| EMC |
|
||||
|---|---|---|---|---|---|
| Shock resistance |
|
||||
| Vibration resistance |
|
||||
| MTTF [years] | 323 | ||||
| Note on approval |
|
||||
| UL approval |
|
Mechanical data
| Weight [g] | 340.1 |
|---|---|
| Materials | stainless steel (1.4404 / 316L); PBT |
| Materials (wetted parts) | ceramics (99.9 % Al2O3); stainless steel (1.4435 / 316L); surface characteristics: Ra < 0,4 / Rz 4; PTFE |
| Min. pressure cycles | 100 million |
| Tightening torque [Nm] | 20 |
| Process connection | threaded connection G 1 external thread sealing cone |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connection | Connector: 1 x M12; coding: A; Contacts: gold-plated |
|---|
Diagrams and graphs
|
ambient temperature influence on the accuracy
|
|
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — PM1603-01 — 31.07.2023 —

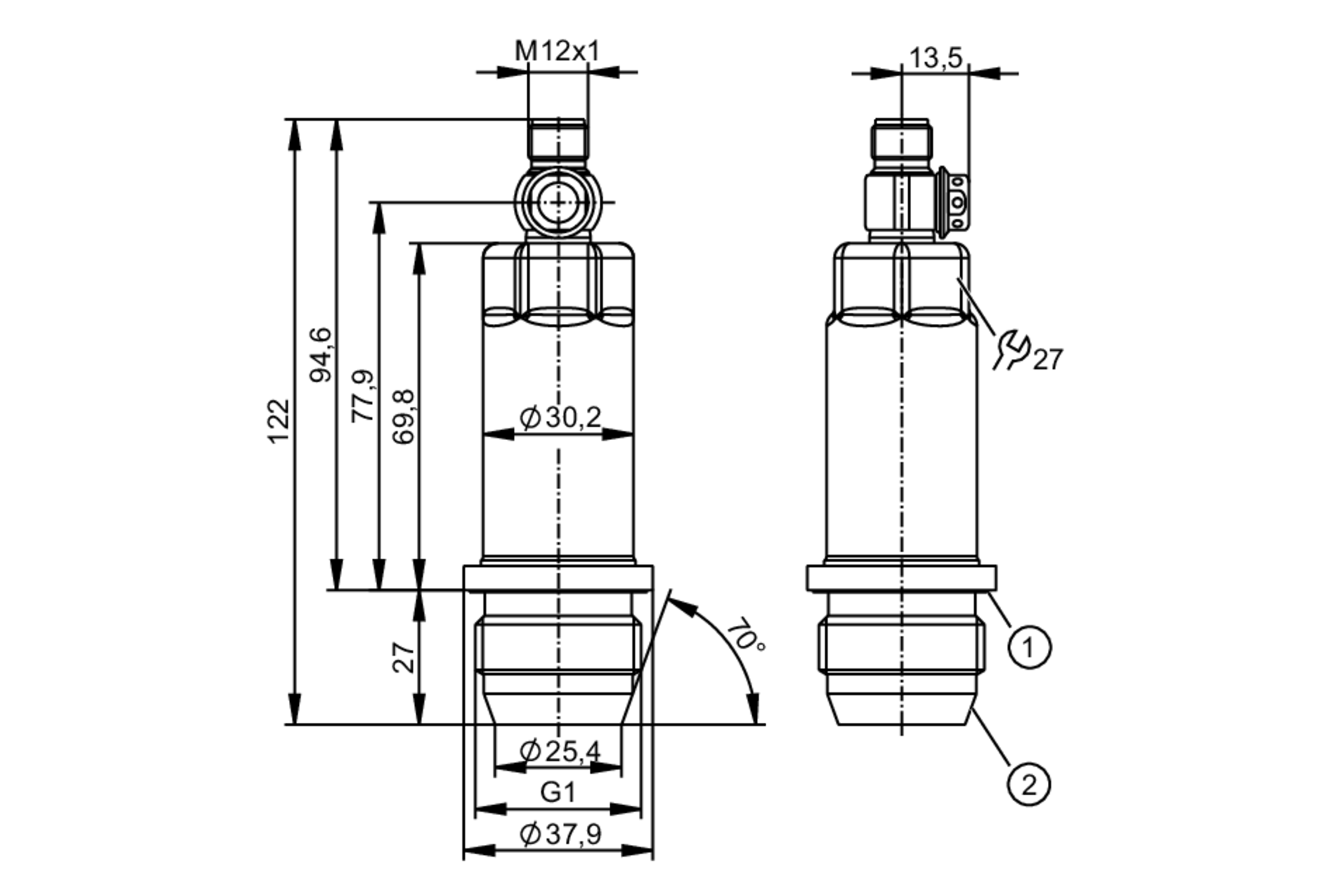

PM1603 –
PM-025-REA01-E-ZVG/US
- 1
- groove with sealing ring (DIN EN ISO 1179-2)
- 2
- G1 sealing cone external thread
Electrical connection
Connector: 1 x M12; coding: A; Contacts: gold-plated
Connection
- 1
- connection for 2-wire operation ( analogue )
- 2
- connection for 3-wire operation ( analogue / IO-Link )
- OUT1 : IO-Link
- OUT2 : analogue output
