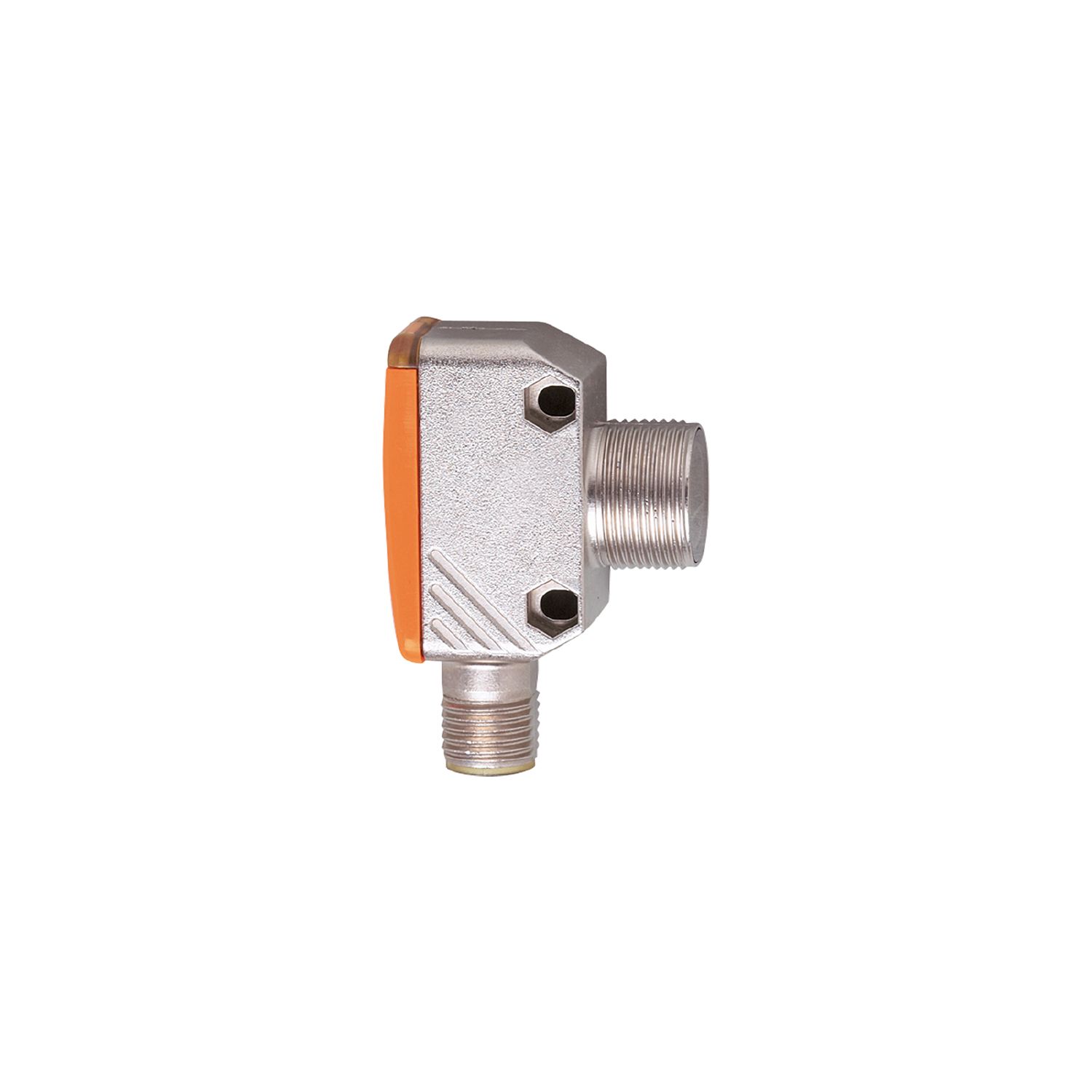

Through-beam sensor transmitter

OGS080

OGS-OOOW/LS/CUBE

Through-beam sensor transmitter

OGS080

OGS-OOOW/LS/CUBE

  • Robust rectangular metal housing with M18 thread on the side
  • Particularly space-saving design for use where space is restricted
  • With two-wire output for use in AC power mains
  • Ready for operation immediately thanks to fixed setting
  • Very long range
Article no longer available - archive entry
  • ce
  • cul
Product characteristics
Type of light red light
Housing rectangular with M18 thread
Application
Function principle Through-beam sensor
Electrical data
Frequency AC [Hz] 47...60
Operating voltage [V] 20...250 AC
Current consumption [mA] < 5
Protection class II; (double insulated)
Type of light red light
Wave length [nm] 633
Detection zone
Transmitter / receiver transmitter
Range [m] < 20
Range adjustable no
Max. light spot diameter [mm] 800
Light spot dimensions refer to at maximum range
Operating conditions
Ambient temperature [°C] -25...60
Protection IP 67
Tests / approvals
EMC
EN 60947-5-2
EN 55011 emission class B
Mechanical data
Weight [g] 59.5
Housing rectangular with M18 thread
Dimensions [mm] 52.6 x 19.1 x 36.9
Thread designation M18 x 1
Materials diecast zinc; PEI
Lens material
PMMA
Lens alignment side lens
Displays / operating elements
Display
operation 1 x LED, green
Electrical connection
Required protection miniature fuse to IEC60127-2 sheet 1; ≤ 2 A; fast acting
Accessories
Items supplied
lock nut: 1
Remarks
Pack quantity 1 pcs.
Electrical connection
Connection Connector: 1 x 1/2"; coding: C
