  2. OGP081

Retro-reflective sensor

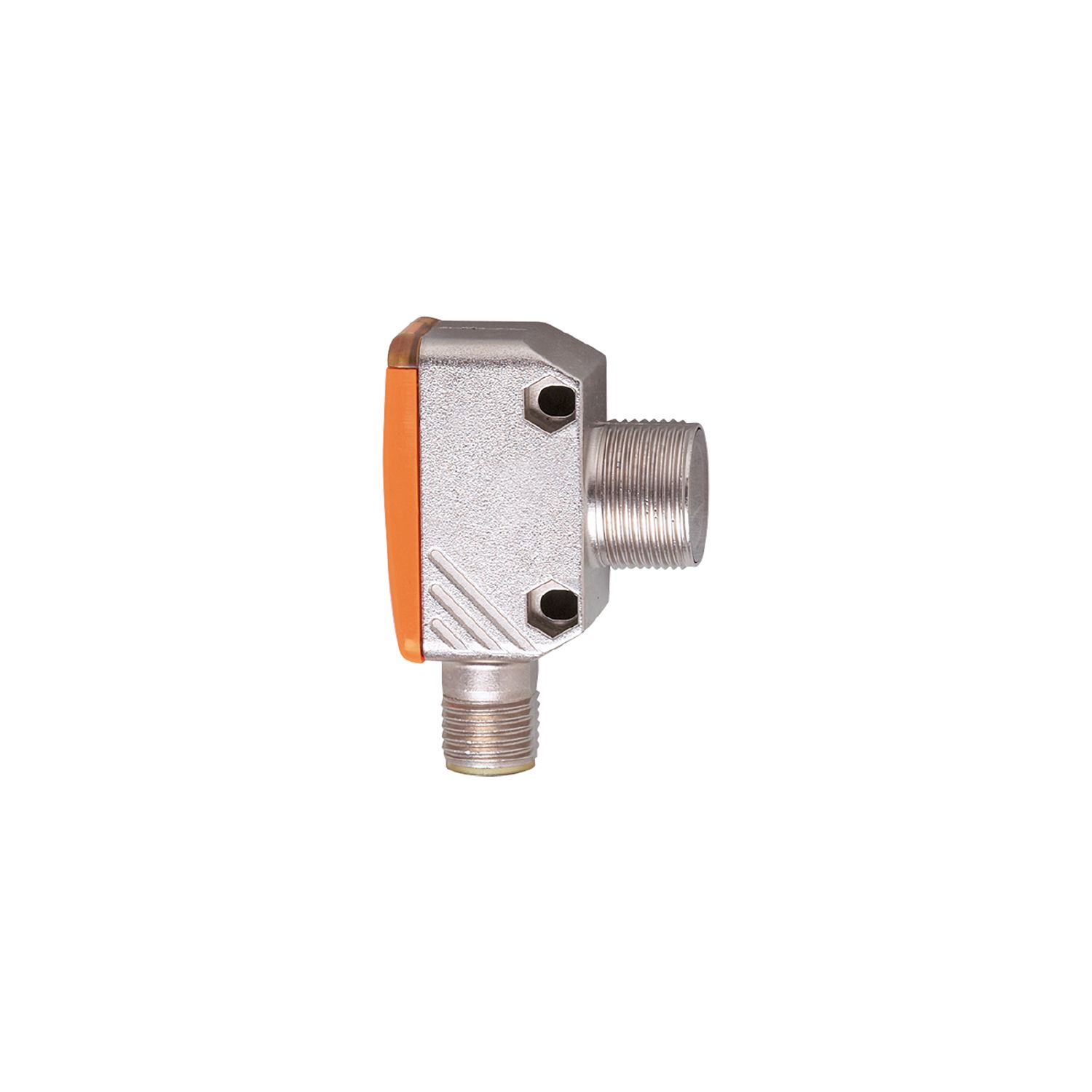

OGP081

OGP-HBOW/LS/CUBE

Retro-reflective sensor

OGP081

OGP-HBOW/LS/CUBE

  • Robust rectangular metal housing with M18 thread on the side
  • Particularly space-saving design for use where space is restricted
  • With two-wire output for use in AC power mains
  • Ready for operation immediately thanks to fixed setting
  • Very long range
Article no longer available - archive entry
  • ce
  • cul
Product characteristics
Type of light red light
Housing rectangular with M18 thread
Application
Special feature polarisation filter
Function principle Retro-reflective sensor
Electrical data
Frequency AC [Hz] 47...63
Operating voltage [V] 20...250 AC
Protection class II; (double insulated)
Type of light red light
Wave length [nm] 633
Outputs
Output function light-on mode
Max. voltage drop switching output AC [V] 8
Minimum load current [mA] 5
Max. leakage current [mA] 1.7
Permanent current rating of switching output AC [mA] 150; (200 (...40 °C))
Short-time current rating of switching output [mA] 1200; (20 ms / 0,5 Hz)
Switching frequency AC [Hz] 30
Short-circuit protection no
Overload protection no
Detection zone
Range referred to prismatic reflector [m] 4; (Prismatic reflector Ø 80 E20005)
Range adjustable no
Max. light spot diameter [mm] 160
Light spot dimensions refer to at maximum range
Polarisation filter available yes
Operating conditions
Ambient temperature [°C] -25...60
Protection IP 67
Tests / approvals
EMC
EN 60947-5-2
EN 55011 emission class B
Mechanical data
Weight [g] 60
Housing rectangular with M18 thread
Dimensions [mm] 52.6 x 19.1 x 36.9
Thread designation M18 x 1
Materials diecast zinc; PEI
Lens material
PMMA
Lens alignment side lens
Displays / operating elements
Display
switching status 1 x LED, yellow
Electrical connection
Required protection miniature fuse to IEC60127-2 sheet 1; ≤ 2 A; fast acting
Accessories
Items supplied
lock nut: 1
Remarks
Remarks
Do not connect without a load.
Pack quantity 1 pcs.
Electrical connection
Connection Connector: 1 x 1/2"; coding: C
Diagrams and graphs
excess gain graph
x: Abstand [m]
y: Funktionsreservefaktor
