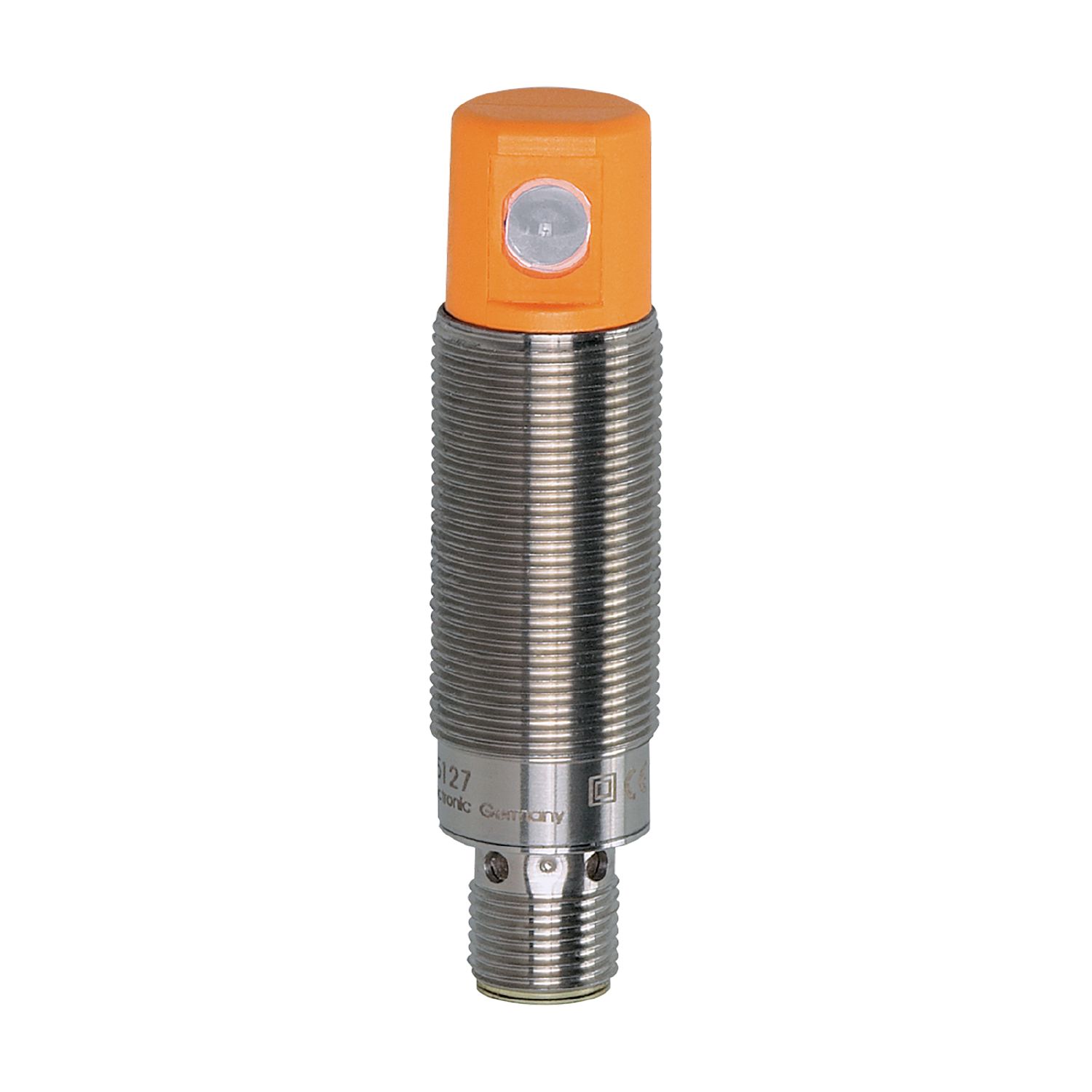

Through-beam sensor receiver

OG5127

OGE-HPKG/US/90°

Through-beam sensor receiver

OG5127

OGE-HPKG/US/90°

  • Particularly space-saving design with light emission on the side
  • For use where space is restricted
  • Ready for operation immediately thanks to fixed setting
  • Simple alignment due to visible red light
  • Very long range
  • ce
  • ukca
  • cul
Product characteristics
Type of light red light
Housing threaded type
Application
Function principle Through-beam sensor
Electrical data
Operating voltage [V] 10...30 DC; ("supply class 2" to cULus)
Current consumption [mA] < 12
Protection class II
Reverse polarity protection yes
Type of light red light
Wave length [nm] 660
Outputs
Electrical design PNP
Output function light-on mode
Max. voltage drop switching output DC [V] 2.5
Permanent current rating of switching output DC [mA] 200
Switching frequency DC [Hz] 500
Short-circuit protection yes
Type of short-circuit protection pulsed
Overload protection yes
Detection zone
Transmitter / receiver receiver
Range [m] < 9
Range adjustable no
Operating conditions
Ambient temperature [°C] -25...60
Protection IP 68
Tests / approvals
EMC
EN 60947-5-2
EN 55011 class B
MTTF [years] 953
Mechanical data
Weight [g] 58.7
Housing threaded type
Dimensions [mm] M18 x 1 / L = 59.3
Thread designation M18 x 1
Materials stainless steel; ABS
Lens material
PMMA
Displays / operating elements
Display
switching status 1 x LED, yellow
operation 1 x LED, green
Accessories
Items supplied
Nuts: 2
lock washers: 2
Remarks
Pack quantity 1 pcs.
Electrical connection
Connection Connector: 1 x M12; coding: A
