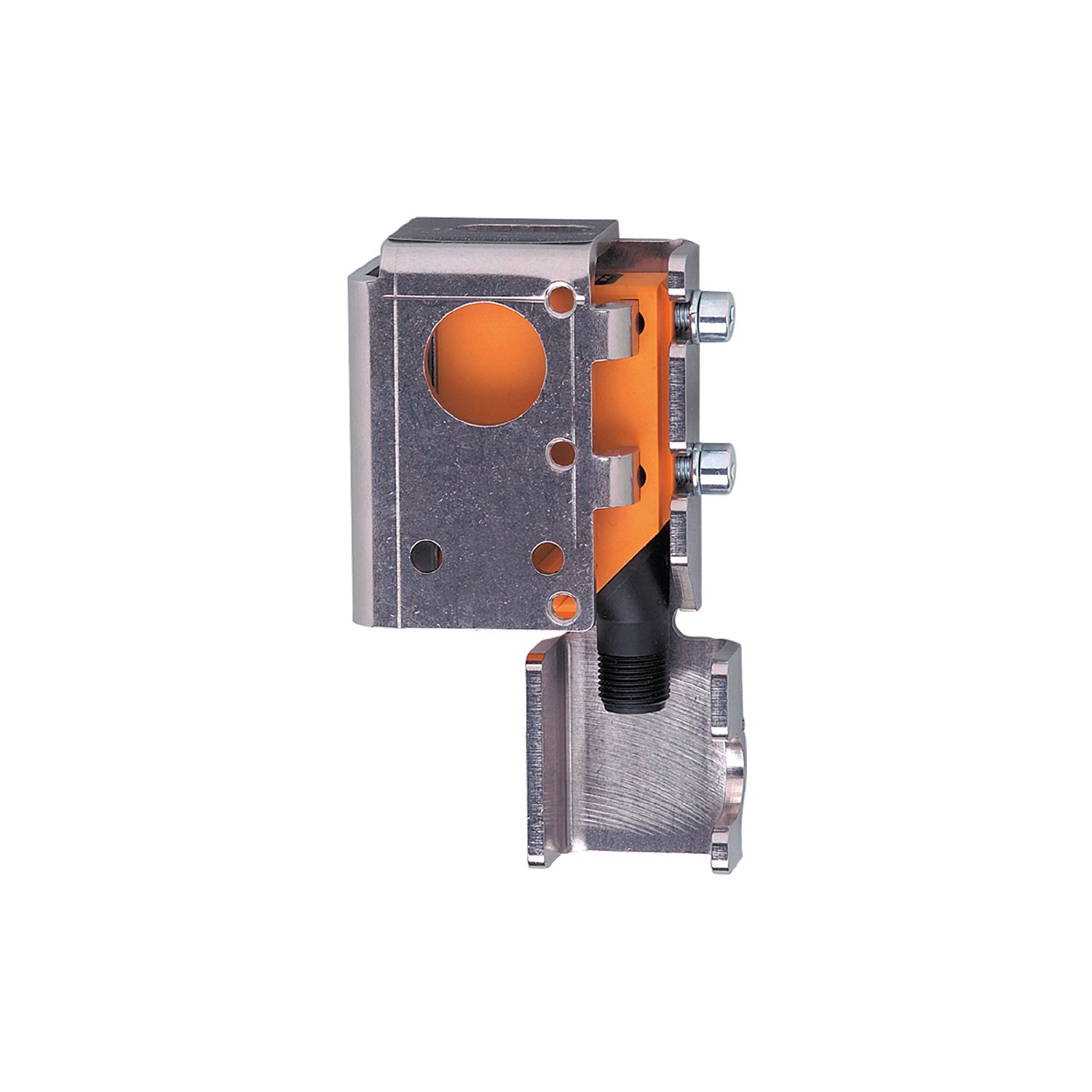

Through-beam sensor receiver

O5E51A

O5E-FPKG/US100/3D

Through-beam sensor receiver

O5E51A

O5E-FPKG/US100/3D

  • For applications in hazardous areas
  • Robust housing with stainless steel protective bracket
  • Very long range
  • Sensitivity adjustable via teach buttons
  • Programmable light-on/dark-on mode
  • ce
  • ukca
  • ex
Product characteristics
Type of light red light
Housing rectangular
Application
Function principle Through-beam sensor
Electrical data
Operating voltage [V] 10...30 DC; (when used outside the hazardous area: 10...36)
Current consumption [mA] 11
Protection class III
Reverse polarity protection yes
Type of light red light
Outputs
Electrical design PNP
Output function light-on/dark-on mode; (programmable)
Max. voltage drop switching output DC [V] 2.5
Permanent current rating of switching output DC [mA] 100; (when used outside the hazardous area: 200)
Switching frequency DC [Hz] 1000
Short-circuit protection yes
Type of short-circuit protection pulsed
Overload protection yes
Detection zone
Transmitter / receiver receiver
Range [m] < 25
Range adjustable yes
Operating conditions
Ambient temperature [°C] -10...50
Note on ambient temperature
when used outside the hazardous area: -25...60 °C
Protection IP 65
Tests / approvals
ATEX marking II 3D Ex tc IIIC T105°C Dc X
EMC
EN 60947-5-2
MTTF [years] 801
Mechanical data
Weight [g] 336
Housing rectangular
Dimensions [mm] 105 x 30 x 62
Materials housing: PA; bezel: stainless steel; operator interface: TPU; Protective bracket: stainless steel
Lens material
PMMA
Lens alignment side lens
Displays / operating elements
Display
switching status 1 x LED, yellow
Teach function yes
Electronic lock yes
Remarks
Pack quantity 1 pcs.
Electrical connection
Connection Connector: 1 x M12; coding: A
Diagrams and graphs
excess gain graph
