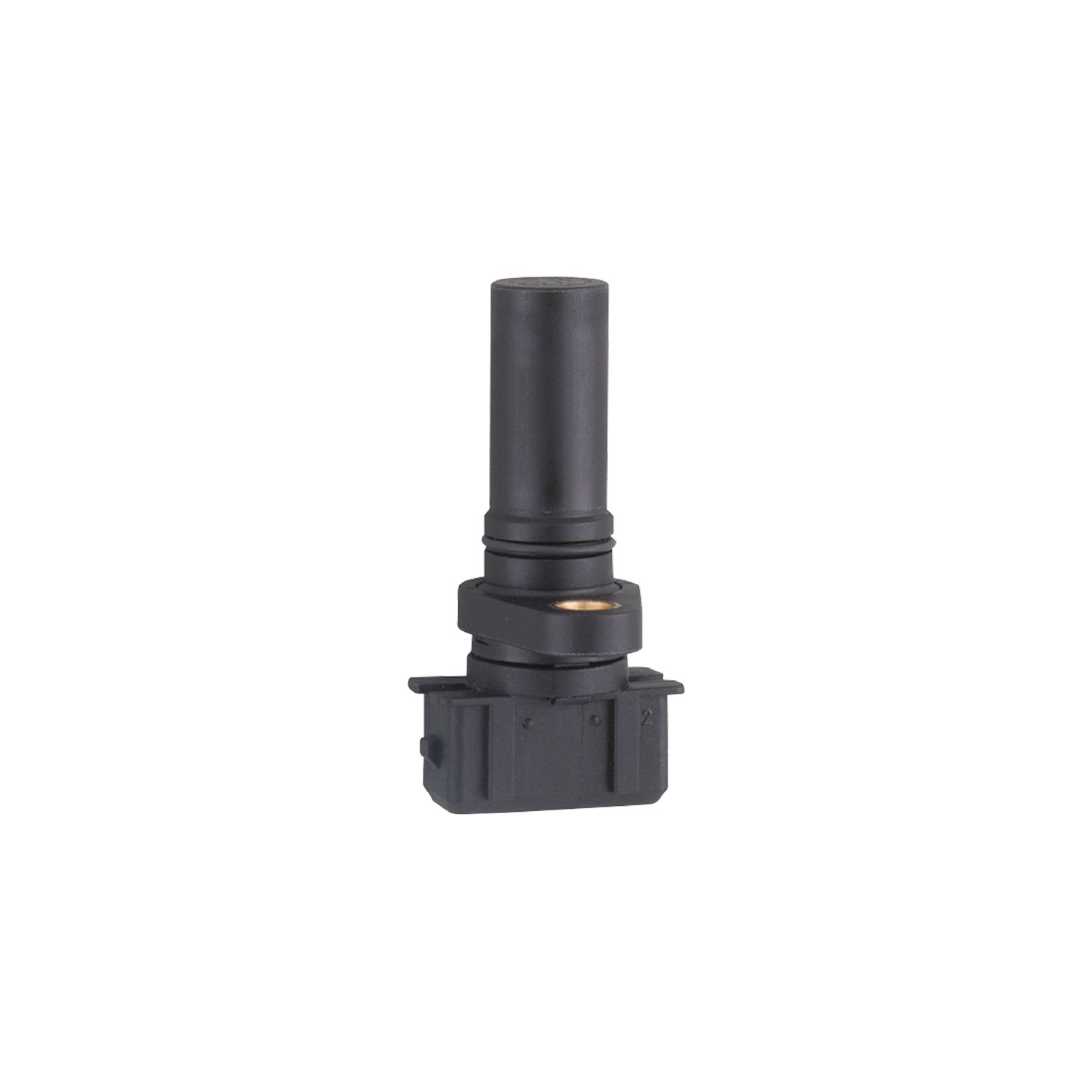

Speed sensor

MX5004

MXD41,7 ANOG/H/AMP

Speed sensor

MX5004

MXD41,7 ANOG/H/AMP

  • Non-contact detection of metal toothed wheels
  • For very high switching frequencies up to 15,000 Hz
  • Precise detection of the toothed wheel
  • Wide operating temperature range
  • Quick installation with flange adapters
  • ce
  • ukca
Product characteristics
Electrical design NPN
Sensing range [mm] 1.7; (Using toothed wheels with a different modulus has an influence on the sensing range and the phase position.)
Dimensions [mm] Ø 15 / L = 61
Electrical data
Operating voltage [V] 7...30 DC
Current consumption [mA] < 30
Protection class III
Reverse polarity protection no
Outputs
Electrical design NPN
Permanent current rating of switching output DC [mA] 50
Switching frequency DC [Hz] 1...15000
Short-circuit protection no
Detection zone
Sensing range [mm] 1.7; (Using toothed wheels with a different modulus has an influence on the sensing range and the phase position.)
Operating distance [mm] 1
Operating conditions
Ambient temperature [°C] -32...140
Ambient temperature [°C] 125
Note on ambient temperature
for the plug area
Protection IP 67; IP 69K; (plug: IP 54)
Tests / approvals
EMC
EN 61000-4-2 4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated 10 V/m
EN 61000-4-4 Burst 2 kV
EN 61000-4-6 HF conducted 10 V
EN 61000-4-8 30 A/m
Shock resistance
DIN EN 60068-2-27 30 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes
Salt spray test
EN 60068/2-11 96 h 5 % NaCl bei 25 °C
Mechanical data
Weight [g] 25
Dimensions [mm] Ø 15 / L = 61
Materials socket: brass; housing: PA; O-ring: FKM
Tightening torque [Nm] 7
Toothed wheel module [mm] 1.25
Installation length [mm] 35
Remarks
Pack quantity 1 pcs.
Electrical connection
Connection Connector: 1 x AMP-Junior Timer (282 192-1)
Diagrams and graphs
switching signals
phase shift 90° +/- 20°
pulse/pause ratio 50 % +/- 10 %
Using toothed wheels with a different modulus has an influence on the sensing range and the phase position.
