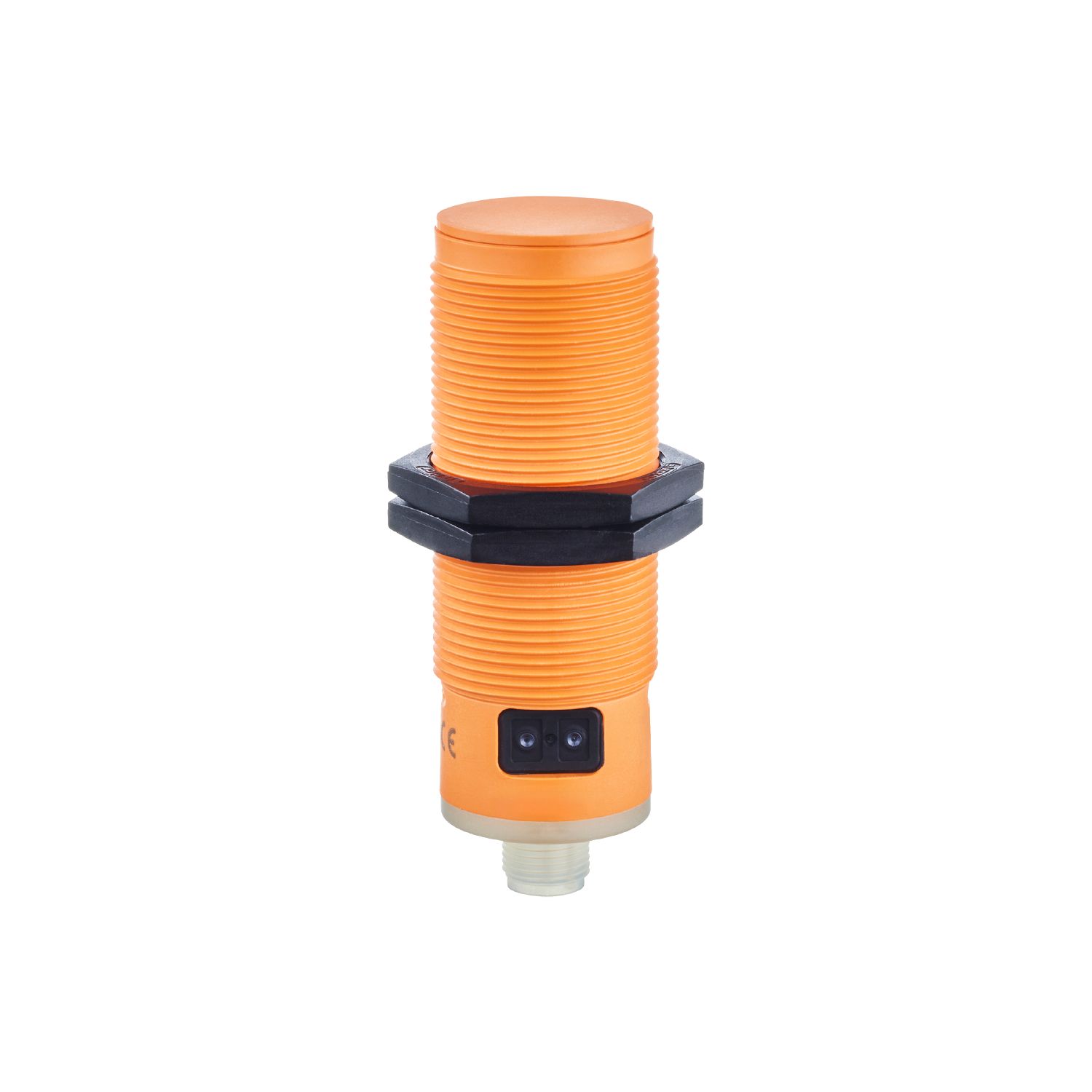

Capacitive sensor
KI0058
KI-2200NFBOAP2T/LS100
Capacitive sensor
KI0058
KI-2200NFBOAP2T/LS100
- Easy adjustment to the empty and full state via pushbutton
- For the detection of liquids and dry bulk materials
- With combined AC/DC output stage
- Adjustable switching delay
- Output function normally open / normally closed programmable
Product characteristics
| Output function | normally open / normally closed; (selectable) |
|---|---|
| Sensing range [mm] | 20 |
| Housing | threaded type |
| Dimensions [mm] | M30 x 1.5 / L = 90 |
Electrical data
| Operating voltage [V] | 30...250 AC / 20...250 DC |
|---|---|
| Rated insulation voltage [V] | 250 |
| Protection class | II |
| Reverse polarity protection | yes |
| Max. power-on delay time [ms] | 700 |
| Measuring principle | capacitive |
Outputs
| Output function | normally open / normally closed; (selectable) |
|---|---|
| Max. voltage drop switching output DC [V] | 10 |
| Max. voltage drop switching output AC [V] | 10 |
| Minimum load current [mA] | 5 |
| Max. leakage current [mA] | 2.5 (250 V AC) / 1.7 (110 V AC) / 1.5 (24 V DC) |
| Permanent current rating of switching output AC [mA] | 100; (150 (...40 °C)) |
| Permanent current rating of switching output DC [mA] | 100; (150 (...40 °C)) |
| Short-time current rating of switching output [mA] | 1000; (20 ms / 0,5 Hz) |
| Switching frequency AC [Hz] | 10 |
| Switching frequency DC [Hz] | 10 |
| Short-circuit proof | no |
| Overload protection | no |
Detection zone
| Sensing range [mm] | 20 |
|---|
Accuracy / deviations
| Hysteresis [% of Sr] | 1...15 |
|---|---|
| Switch point drift [% of Sr] | -20...20 |
Software / programming
| Parameter setting options | 5 output hold times programmable; (1: 15 min; 2: 30 min; 3: 45 min; 4: 60 min; 5: 0 min) |
|---|
Operating conditions
| Ambient temperature [°C] | -25...80 | |
|---|---|---|
| Note on ambient temperature |
|
|
| Protection | IP 65; IP 67 |
Tests / approvals
| EMC |
|
|---|
Mechanical data
| Weight [g] | 109.8 |
|---|---|
| Housing | threaded type |
| Mounting | non-flush mountable |
| Dimensions [mm] | M30 x 1.5 / L = 90 |
| Thread designation | M30 x 1.5 |
| Materials | housing: PBT; pushbuttons: TPE-U; LED window: PC |
Displays / operating elements
| Display |
|
||
|---|---|---|---|
| Teach function | yes | ||
| Electronic lock | yes |
Electrical connection
| Required protection | miniature fuse to IEC60127-2 sheet 1; ≤ 2 A; fast acting |
|---|
Accessories
| Items supplied |
|
|---|
Remarks
| Remarks |
|
||
|---|---|---|---|
| Pack quantity | 1 pcs. |
Electrical connection - plug
| Connector: 1 x 1/2"; coding: C |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — KI0058-01 — 11.04.2024 —
KI0058 –
KI-2200NFBOAP2T/LS100
- 1
- LED ring
- 2
- programming buttons
Electrical connection - plug
Connector: 1 x 1/2"; coding: C
- Note miniature fuse to IEC60127-2 sheet 1 ≤ 2 A fast acting
