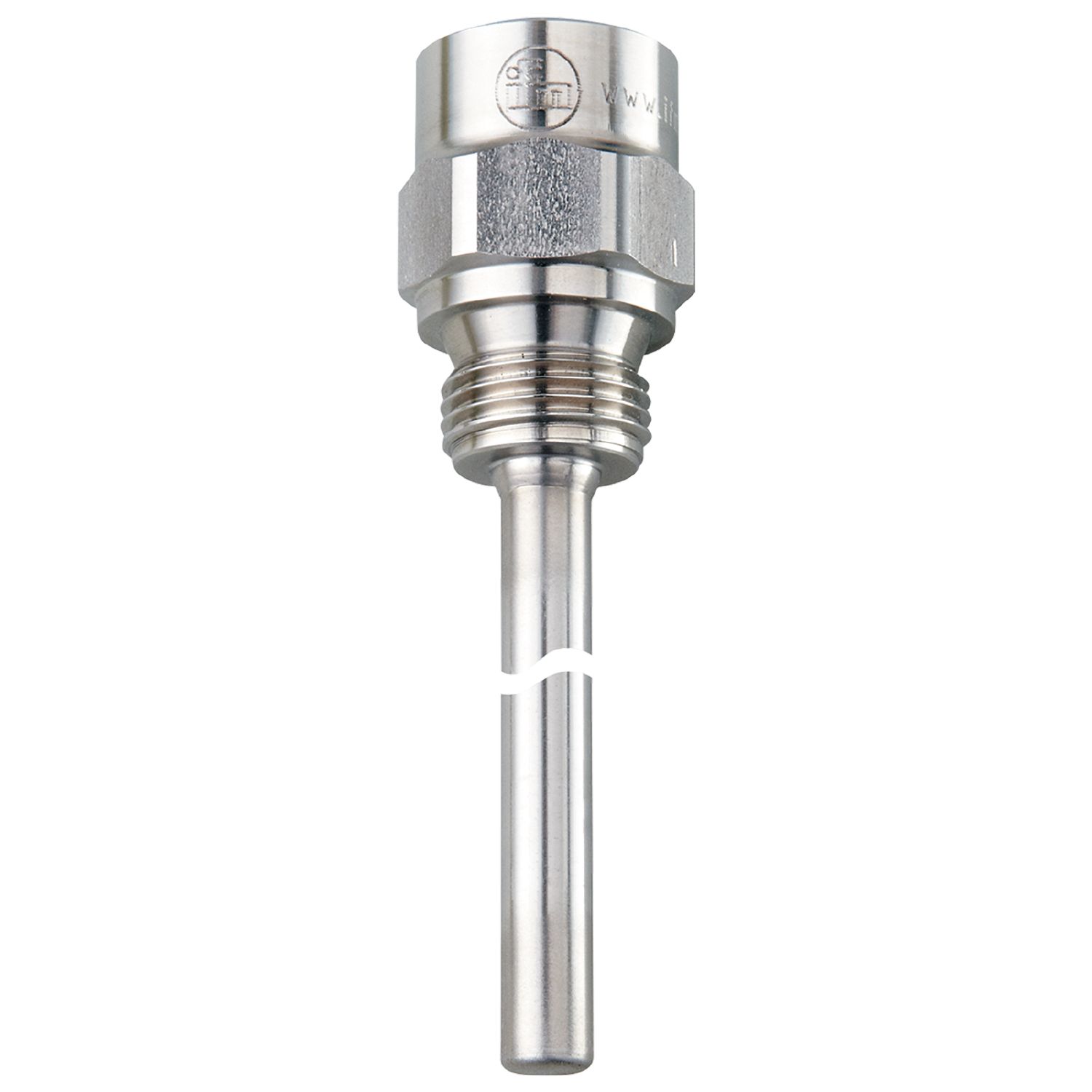

Thermowell for temperature sensors

E37620

THERMOWELL, D6/ G1/2 /L=150

Thermowell for temperature sensors

E37620

THERMOWELL, D6/ G1/2 /L=150

  • Reliable protection against aggressive media and high flow velocities
  • Allows the replacement of the temperature sensor in a running process
  • High pressure rating
  • Simple process connection via adapter
  • Robust stainless steel housing for the requirements of harsh industrial environments
Application
Design for temperature sensors EL = 150 mm
Pressure rating [bar] 100
Note on pressure rating
< 250 °C
Mechanical data
Weight [g] 145.1
Materials stainless steel (1.4571/316Ti )
Sensor connection G 1/2 Ø 6 mm
Process connection G 1/2
Installation length EL [mm] 124
Bore length BL [mm] 150
Remarks
Pack quantity 1 pcs.
