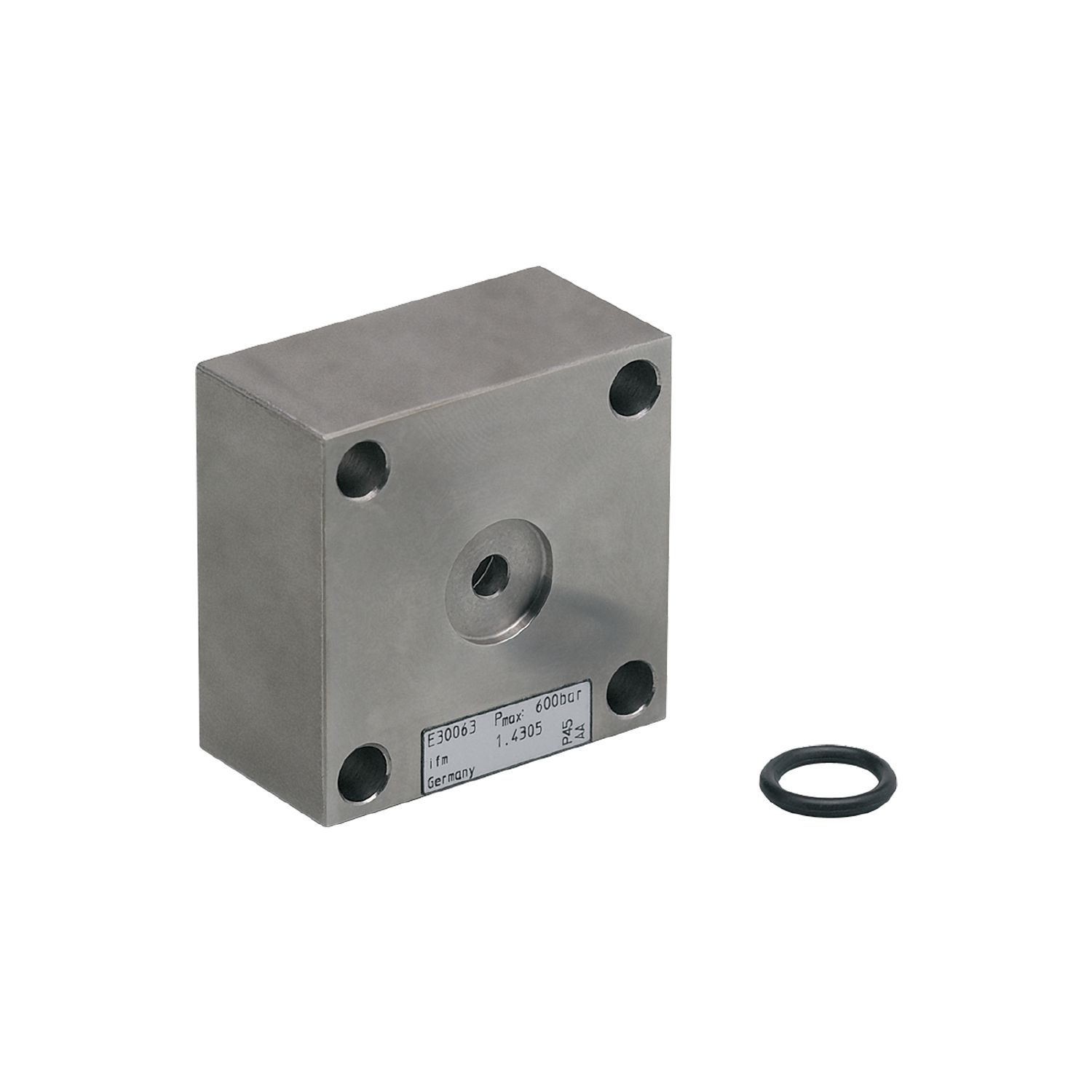

Flange adapter for process sensors

E30063

FLANGE ADAPTER G1/4

Flange adapter for process sensors

E30063

FLANGE ADAPTER G1/4

  • Quick and easy mounting
  • Very high pressure rating
  • Robust stainless steel design for use in harsh industrial environments
  • Good sealing due to O-ring
Application
Design for pressure sensors PP7 / PK
Pressure rating [bar] 600
Tests / approvals
Pressure Equipment Directive A possible classification to PED depends on the application and has to be carried out by the user / operator.
Safety instructions The compatibility between medium and product material has to be checked in all applications.
Mechanical data
Weight [g] 243.2
Materials stainless steel (1.4305 / 303); O-ring: NBR
Sensor connection G 1/4 external thread
Process connection flange
Remarks
Pack quantity 1 pcs.
