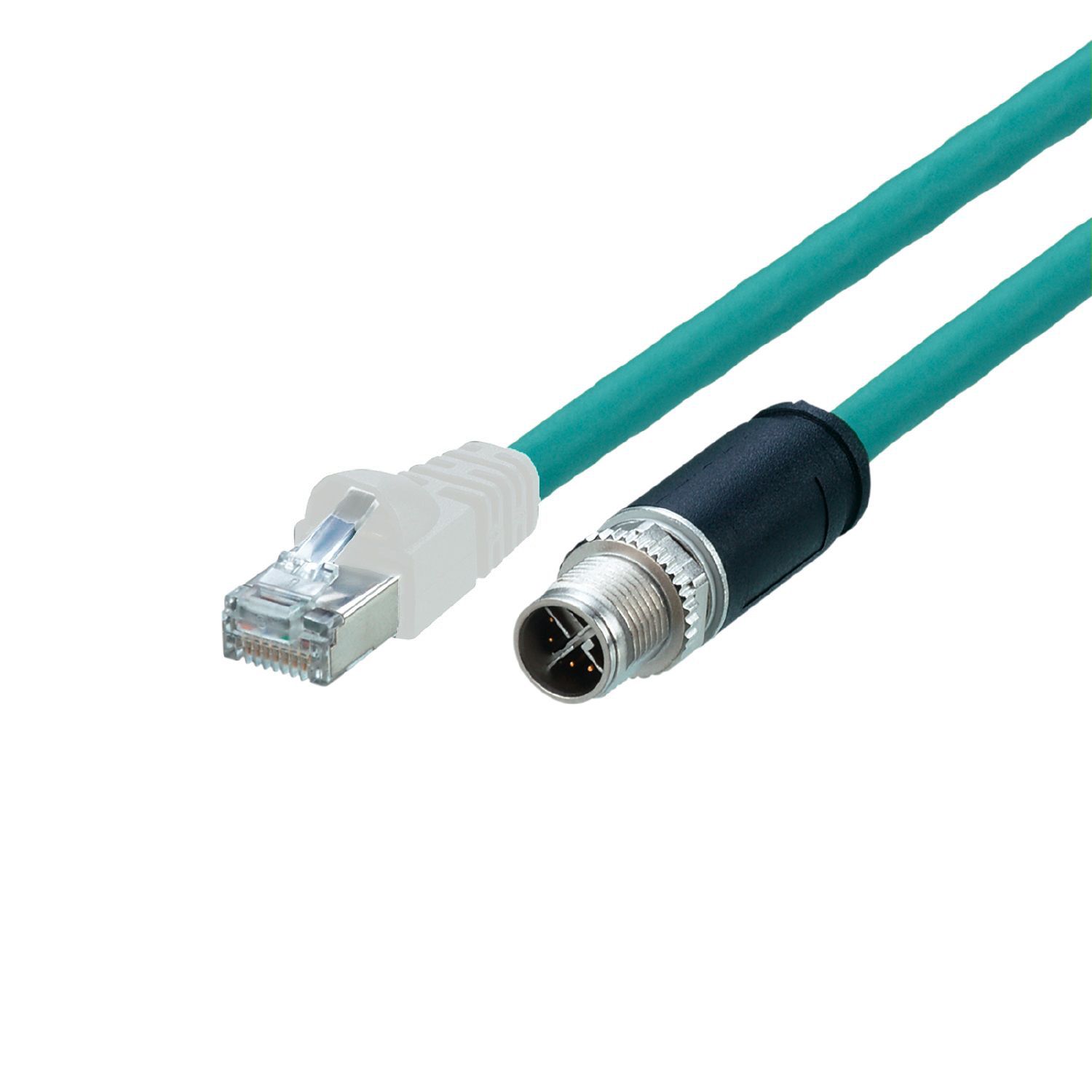

Connection cable
ZH4114
VSTGX080MSS0005K08STGP080-S
Connection cable
ZH4114
VSTGX080MSS0005K08STGP080-S
Application
| Design | Ethernet cable, X-coded |
|---|---|
| Application | Cross-over patch cable; Patch cable |
Operating conditions
| Ambient temperature [°C] | -25...90 | |
|---|---|---|
| Note on ambient temperature |
|
|
| Protection | IP 67; (RJ45: IP 20) |
Mechanical data
| Weight [g] | 260 |
|---|---|
| Material | PUR / TPU |
| Molded-body material | TPU (urethane) / PA |
| Material nut | diecast zinc, nickel-plated |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug
| Connector: 1 x M12, straight; coding: X; Moulded body: TPU (urethane); Locking: diecast zinc, nickel-plated; Tightening torque: 0.4 Nm |
Electrical connection
| Connection | Cable: 5 m, PVC, blue, Ø 6.4 mm; 4 x 2x0.14 mm² |
|---|
Electrical connection - plug
| Connector: 1 x RJ45, straight; Moulded body: PA |
ifm efector, inc. • 1100 Atwater Drive • Malvern • PA 19355 — We reserve the right to make technical alterations without prior notice. — EN-US — ZH4114-00 — 15.10.2020 —
ZH4114 –
VSTGX080MSS0005K08STGP080-S
Electrical connection - plug
Connector: 1 x M12, straight; coding: X; Moulded body: TPU (urethane); Locking: diecast zinc, nickel-plated; Tightening torque: 0.4 Nm
Electrical connection
Cable: 5 m, PVC, blue, Ø 6.4 mm; 4 x 2x0.14 mm²
Connection
Electrical connection - plug
Connector: 1 x RJ45, straight; Moulded body: PA
