- W80310

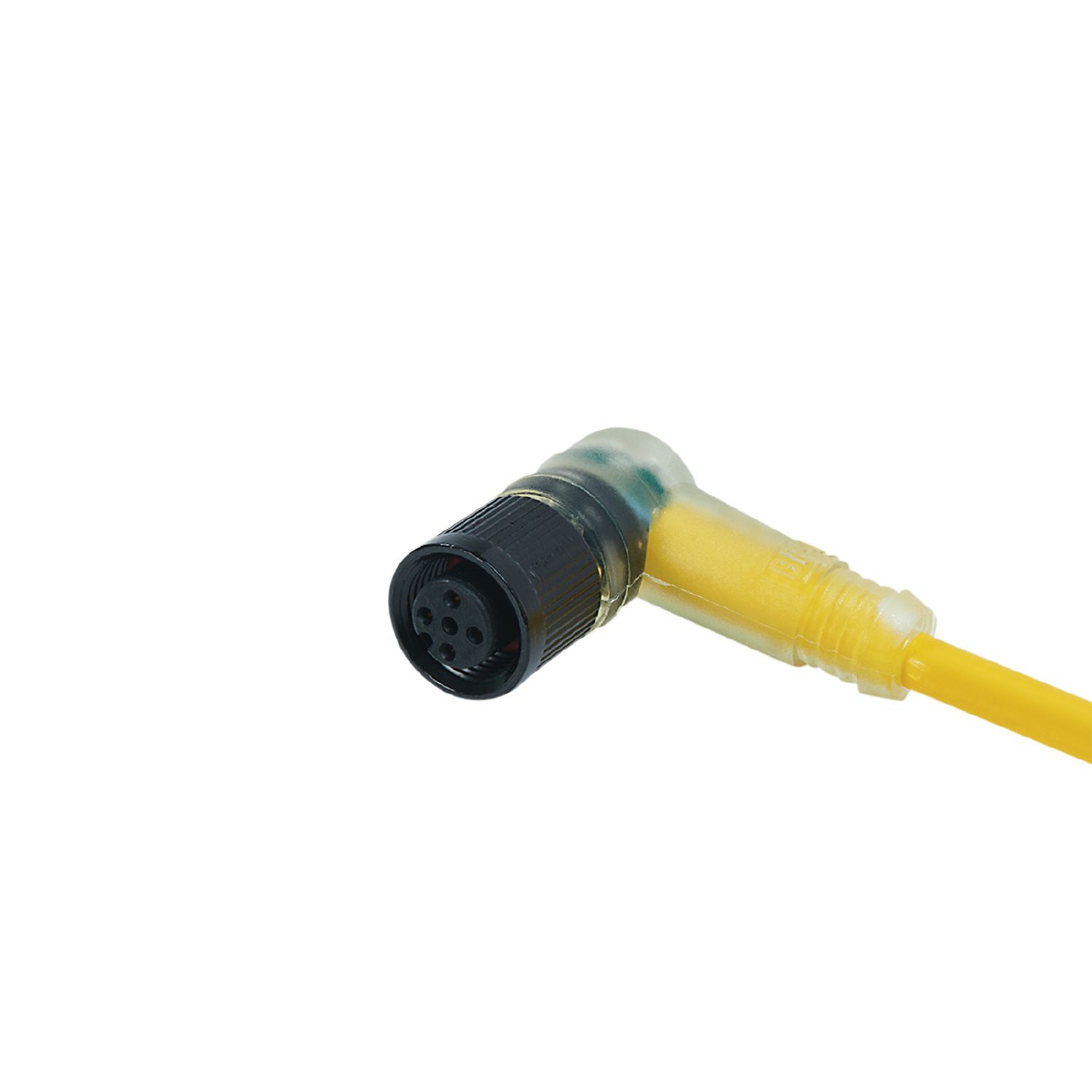

Female cordset
W80310
ADOAH042MKS0005E03
Female cordset
W80310
ADOAH042MKS0005E03
- Angled type for use where space is restricted
- Clearly visible LEDs for indicating switching status and operation
- Permanent, reliable sealing even when mounted without tools
- High protection rating for the requirements of harsh industrial environments
- Wide operating temperature range
Electrical data
| Operating voltage [V] | 10...30 DC |
|---|
Outputs
| Electrical design | PNP |
|---|
Operating conditions
| Ambient temperature [°C] | -20...105 |
|---|---|
| Protection | IP 68 |
Mechanical data
| Weight [g] | 181.437 |
|---|---|
| Dimensions [mm] | 27 x 15 x 39 |
| Material | PVC |
| Molded-body material | PVC |
| Material nut | zinc, epoxy coated |
Displays / operating elements
| Display |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable: 5 m, PVC, yellow, Ø 5 mm; 3 x 0.34 mm² |
Electrical connection - Socket
| Connection | Connector: 1 x M12, angled; coding: A; Moulded body: PVC; Locking: zinc, epoxy coated |
|---|
ifm efector, inc. • 1100 Atwater Drive • Malvern • PA 19355 — We reserve the right to make technical alterations without prior notice. — EN-US — W80310-00 — 20.09.2005 —
W80310 –
ADOAH042MKS0005E03
Electrical connection
Cable: 5 m, PVC, yellow, Ø 5 mm; 3 x 0.34 mm²
Electrical connection - Socket
Connector: 1 x M12, angled; coding: A; Moulded body: PVC; Locking: zinc, epoxy coated
Connection
- Core colors :
- BN =
- brown
- BK =
- black
- BU =
- blue
