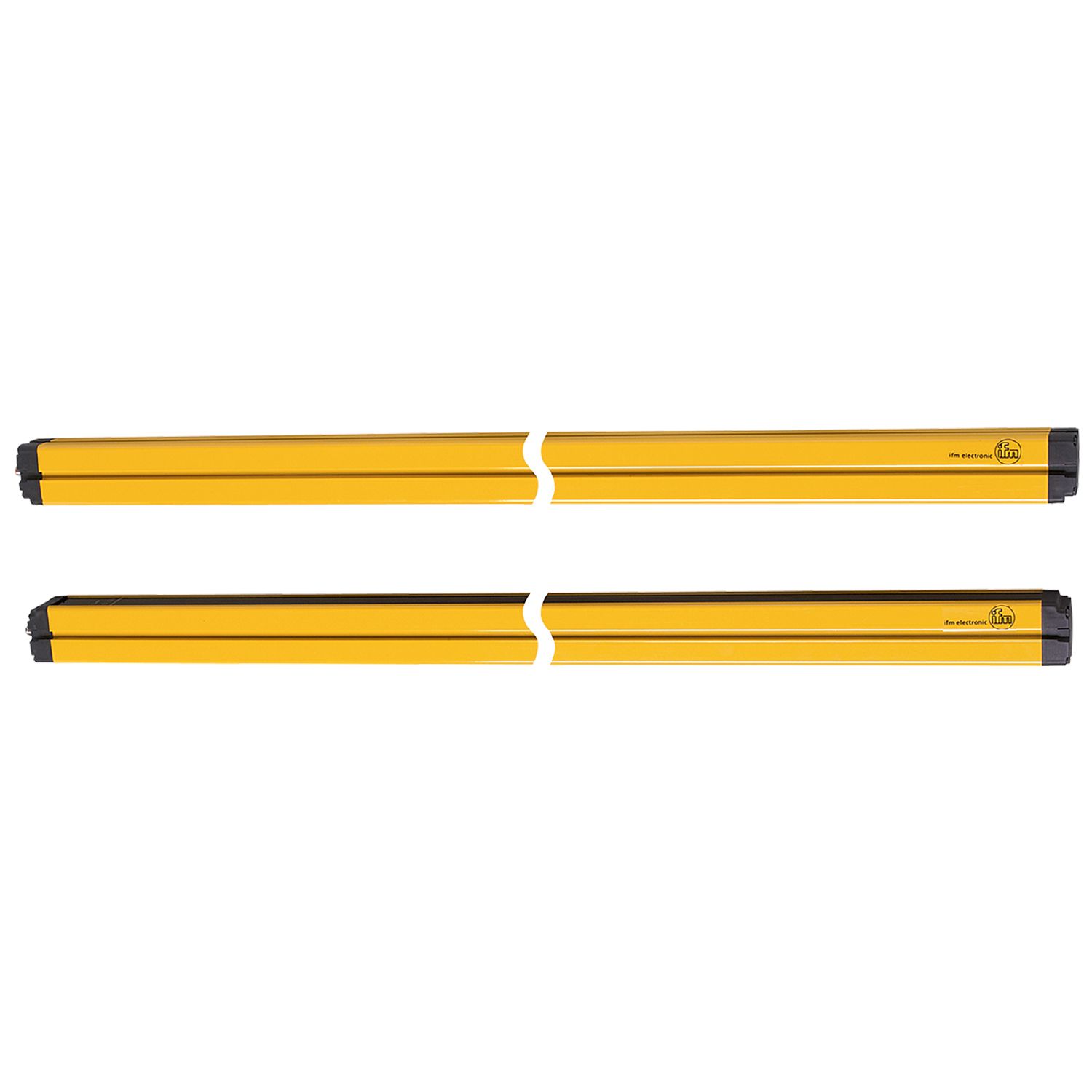

safety light grids
OY902S
OYD0810-03-4-06-P-1
safety light grids
OY902S
OYD0810-03-4-06-P-1
- Transmitter and receiver in single housing for reduced wiring
- Reliable protection of hazardous areas
- Complies with the requirements of type 4 to IEC 61496
- Short and long range selectable via wiring
- Industry standard M12 connection for simple wiring
For 8-wire cordsets the core colors are not standardized. Please note the wiring of the sensor and the cordsets (see data sheet).
Product characteristics
| Type of light | Infrared light |
|---|---|
| Electrical design | PNP |
| Protection | IP 65 |
Application
| Protective function | Access prevention body protection |
|---|
Electrical data
| Operating voltage tolerance [%] | 20 |
|---|---|
| Operating voltage [V] | 24 DC |
| Current consumption [mA] | 250 |
| Protection class | III |
| Reverse polarity protection | yes |
| Power-on delay time [s] | < 10 |
| Type of light | Infrared light |
| Wave length [nm] | 950 |
Outputs
| Electrical design | PNP |
|---|---|
| Number of OSSD outputs | 2 |
| Max. current load per OSSD output [mA] | 500; (24 V) |
| Short-circuit protection | yes |
Monitoring range
| Protected area height [mm] | 810 |
|---|---|
| Number of beams | 3 |
| Protection area width (low light intensity) [m] | 0...6 |
| Protection area width (high light intensity) [m] | 0...6 |
| Active/passive system | yes |
Reaction times
| Response time [ms] | 10.5 |
|---|
Operating conditions
| Applications | Class C to EN 60654-1 weatherproof application |
|---|---|
| Ambient temperature [°C] | -10...55 |
| Max. relative air humidity [%] | 95 |
| Protection | IP 65 |
Tests / approvals
| EMC |
|
||
|---|---|---|---|
| Shock resistance |
|
||
| Vibration resistance |
|
Safety classification
| ESPE type (IEC 61496-1) | 4 | |||
|---|---|---|---|---|
| Complies with the requirements |
|
|||
| MIssion time TM [h] | 175200 | |||
| PFH [1/h] | 4,9E-09 |
Mechanical data
| Weight [g] | 7290 |
|---|---|
| Dimensions [mm] | 1036 x 50 x 60 |
| Material | housing: aluminum; front lens: PC |
| Length L [mm] | 1036 |
Displays / operating elements
| Display |
|
|---|
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connection | Connector: 1 x M12; coding: A; Maximum cable length: 100 m; for wire cross-section 1 mm² |
|---|
ifm efector, inc. • 1100 Atwater Drive • Malvern • PA 19355 — EN-US — OY902S — 14.03.2022 —
OY902S –
OYD0810-03-4-06-P-1
- A
- active element
- P
- passive element
- 1
- LED orange
- 2
- LED red
- 3
- LED green
- 4
- LED yellow
- 5
- display
Electrical connection
Connector: 1 x M12; coding: A; Maximum cable length: 100 m; for wire cross-section 1 mm²
