OY828S

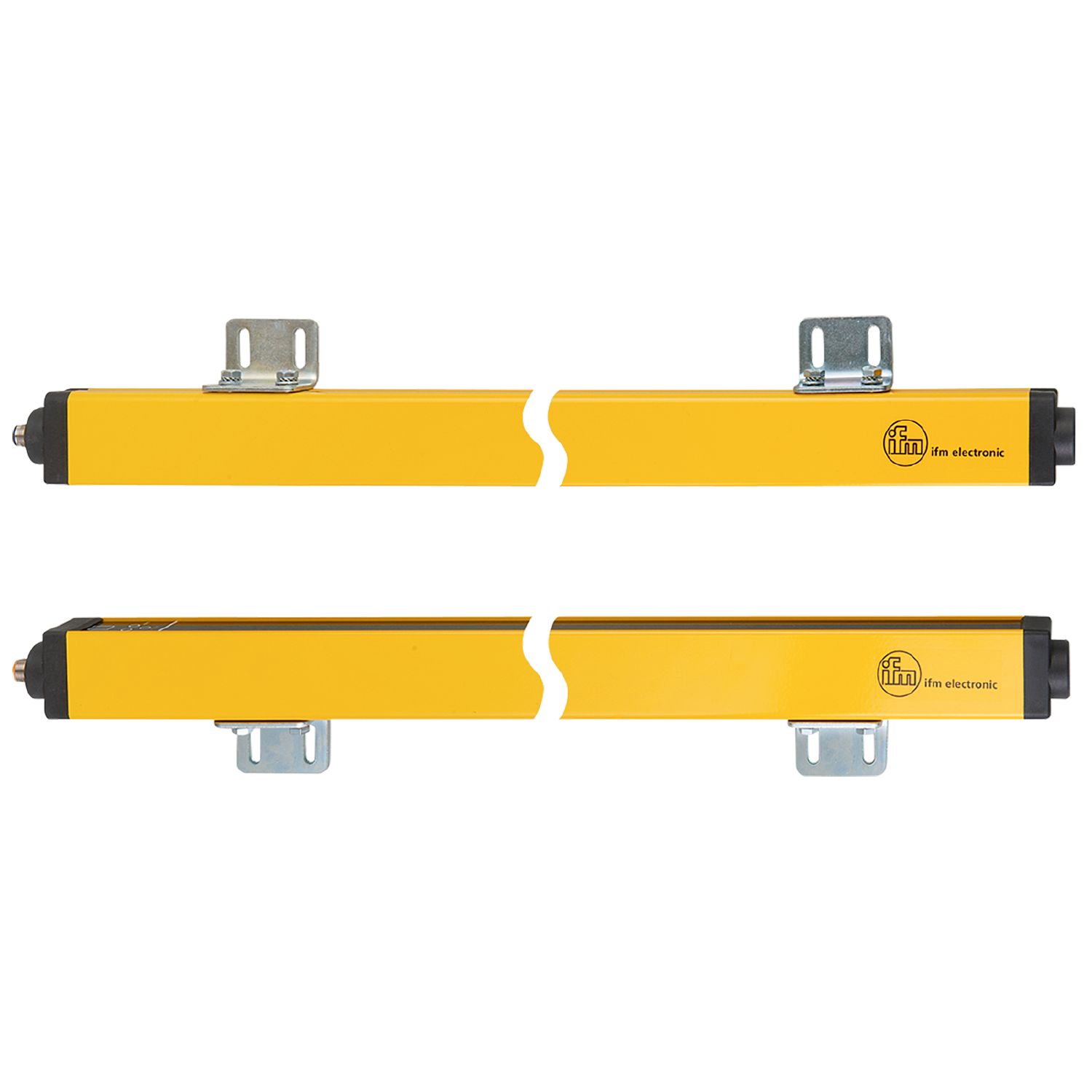

Safety light curtain

OYA1060-40-4-18-P-1-B

{{'OPTIONAL_INFO' | productAvailability | error}}

Dear customer,
Unfortunately, this data sheet is not available in the requested language. If you have any further questions, you can contact us by e-mail.

Best regards
Your ifm team

  • With floating blanking
  • Reliable protection of hazardous areas
  • For safe material feed on presses
  • Complies with the requirements of type 4 to IEC 61496
  • Short and long range selectable via wiring
  • ce
  • cul
Download
Technische Details
Product characteristics
Type of light Infrared light
Dimensions [mm] 1161 x 35 x 45
Application
Protective function Access prevention hand protection
Electrical data
Operating voltage tolerance [%] 20
Operating voltage [V] 24 DC
Protection class III
Reverse polarity protection yes
Power-on delay time [s] < 18
Type of light Infrared light
Wave length [nm] 950
Receiver
Current consumption [mA] 125
Transmitter
Current consumption [mA] 83
Outputs
Electrical design PNP
Number of OSSD outputs 2
Max. current load per OSSD output [mA] 500; (24 V)
Short-circuit protection yes
Monitoring range
Protected area height [mm] 1060
Resolution (detection capacity d) [mm] 40
Protection area width (low light intensity) [m] 0...6
Protection area width (high light intensity) [m] 3...18
Floating blanking yes
Reaction times
Response time [ms] 11.5
Operating conditions
Applications Class C to EN 60654-1 weatherproof application
Ambient temperature [°C] 0...55
Max. relative air humidity [%] 95
Protection IP 65
Tests / approvals
EMC
IEC 61496-1
Shock resistance
IEC 61496-1
Vibration resistance
IEC 61496-1
Safety classification
ESPE type (IEC 61496-1) 4
ISO 13849-1 Category 4, PL e
IEC 61508 SIL 3
IEC 62061 SIL cl 3
MIssion time TM [h] 175200
Safety-related reliability PFHD [1/h] 1.4 E -08
Mechanical data
Weight [g] 5837
Dimensions [mm] 1161 x 35 x 45
Material housing: aluminum; front lens: PC
Length L [mm] 1161
Displays / operating elements
Display
transmitter 3 LED
transmitter 1 7-segment LCD display
receiver 3 LED
receiver 1 7-segment LCD display
Accessories
Accessories (supplied)
Assembly angle: 4
Slot nuts: 4
screws
Remarks
Notes For 8-wire cordsets the core colors are not standardized.; Please note the wiring of the sensor and the cordsets (see data sheet).
Pack quantity 1 pcs.
Electrical connection - receiver
Connection Connector: 1 x M12; Maximum cable length: 100 m; for wire cross-section 0.34 mm²
Electrical connection - transmitter
Connection Connector: 1 x M12
ifm efector, inc. • 1100 Atwater Drive • Malvern • PA 19355 — EN-US — OY828S — 14.11.2012 —
