  6. OY446S

OY446S

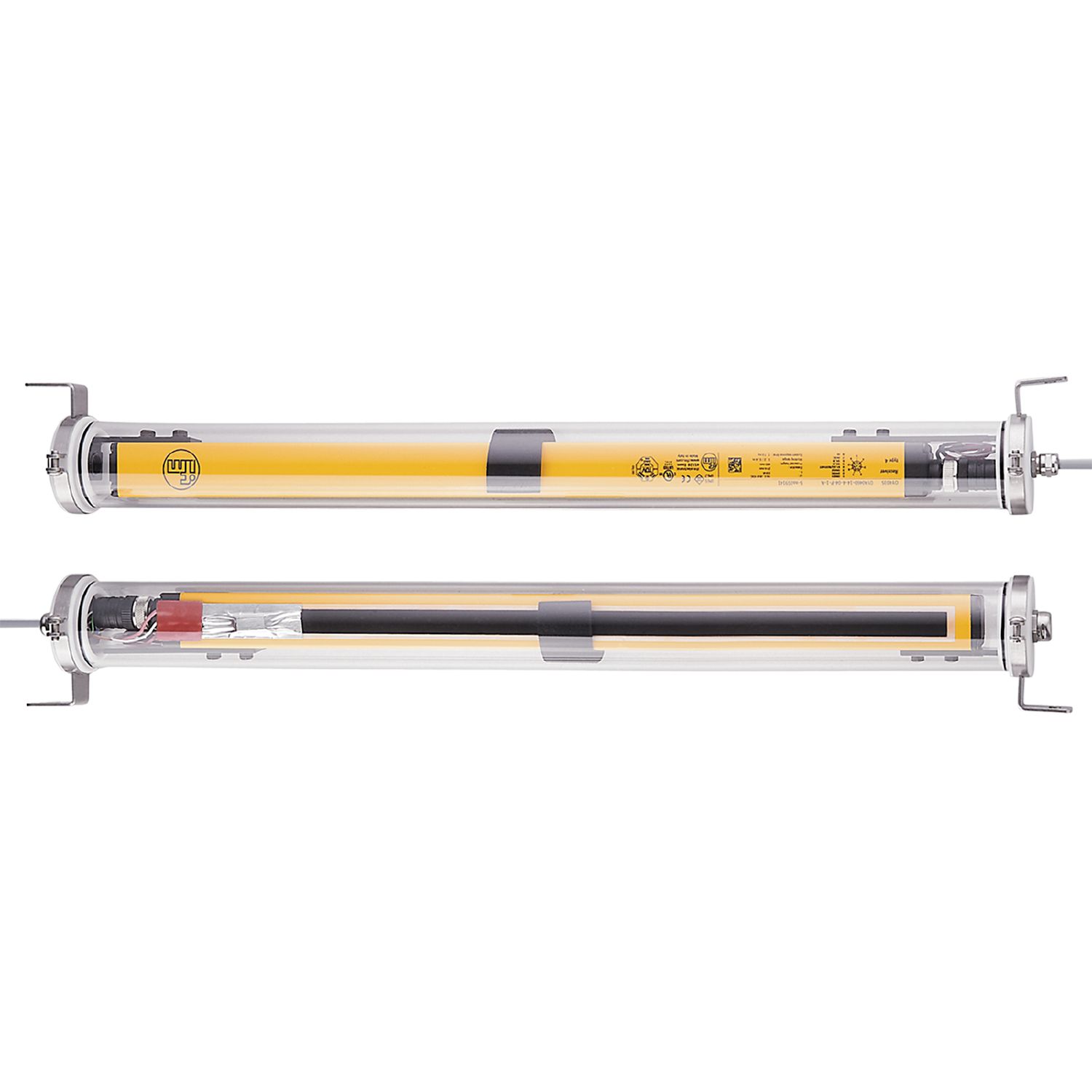

Safety light curtain

OYA0910-30-4-15-P-1-A

{{'OPTIONAL_INFO' | productAvailability | error}}

Dear customer,
Unfortunately, this data sheet is not available in the requested language. If you have any further questions, you can contact us by e-mail.

Best regards
Your ifm team

  • High protection rating for the food and beverage industry
  • Integrated protective tube for steam and high pressure cleaning resisitance
  • Reliable protection of hazardous areas
  • Complies with the requirements of type 4 to IEC 61496
  • Short and long range selectable via wiring
  • ce
  • cul
Download
Technische Details
Product characteristics
Type of light Infrared light
Dimensions [mm] Ø 56
Application
Protective function Access prevention hand protection
Electrical data
Operating voltage tolerance [%] 20
Operating voltage [V] 24 DC
Protection class III
Reverse polarity protection yes
Power-on delay time [s] < 2
Type of light Infrared light
Wave length [nm] 950
Receiver
Current consumption [mA] 83
Current consumption heating [mA] 417
Transmitter
Current consumption [mA] 42
Current consumption heating [mA] 417
Outputs
Electrical design PNP
Number of OSSD outputs 2
Max. current load per OSSD output [mA] 400; (24 V)
Short-circuit protection yes
Monitoring range
Protected area height [mm] 910
Resolution (detection capacity d) [mm] 30
Protection area width (low light intensity) [m] 0...7
Protection area width (high light intensity) [m] 3...15
Reaction times
Response time [ms] 7.5
Operating conditions
Ambient temperature [°C] -20...55
Max. relative air humidity [%] 95
Protection IP 65; IP 67; IP 69K; (with protective tube: IP 69K)
Tests / approvals
EMC
IEC 61496-1
Shock resistance
IEC 61496-1
Vibration resistance
IEC 61496-1
Safety classification
ESPE type (IEC 61496-1) 4
ISO 13849-1 Category 4, PL e
IEC 61508 SIL 3
IEC 62061 SIL cl 3
MIssion time TM [h] 175200
Safety-related reliability PFHD [1/h] 1.5E-08
Mechanical data
Weight [g] 5820
Dimensions [mm] Ø 56
Material protective tube: PMMA transparent; Protective cap: POM; clamp: stainless steel (1.4404 / 316L); sealing: silicone
Length L [mm] 1087
Displays / operating elements
Display
transmitter 1 LED
receiver 2 LED
Remarks
Pack quantity 1 pcs.
Electrical connection - receiver
Connection Cable: 15 m, PVC; Maximum cable length: 100 m; 10 x 0.34 mm²
Electrical connection - transmitter
Connection Cable: 15 m, PVC; 8 x 0.34 mm²
ifm efector, inc. • 1100 Atwater Drive • Malvern • PA 19355 — EN-US — OY446S — 20.12.2012 —
