- OW1011
Through-beam sensor receiver
OW1011
OWE-FPKG/AS
Through-beam sensor receiver
OW1011
OWE-FPKG/AS
Article no longer available - archive entry
Alternative articles: OJ5009 Product comparison: OW1011 / OJ5009 When selecting an alternative article and accessories please note that technical data may differ!
Product characteristics
| Type of light | red light |
|---|---|
| Housing | rectangular |
Application
| Function principle | Through-beam sensor |
|---|
Electrical data
| Operating voltage [V] | 10...36 DC |
|---|---|
| Current consumption [mA] | 25; ((36 V)) |
| Protection class | III |
| Reverse polarity protection | yes |
| Type of light | red light |
| Wave length [nm] | 660 |
Outputs
| Electrical design | PNP |
|---|---|
| Output function | light-on/dark-on mode; (configurable) |
| Max. voltage drop switching output DC [V] | 2.5 |
| Permanent current rating of switching output DC [mA] | 200 |
| Switching frequency DC [Hz] | 250 |
| Short-circuit protection | yes |
| Type of short-circuit protection | yes (non-latching) |
| Overload protection | yes |
Monitoring range
| Transmitter / receiver | receiver |
|---|---|
| Range [m] | < 4 |
Operating conditions
| Ambient temperature [°C] | -25...60 |
|---|---|
| Protection | IP 65 |
Tests / approvals
| EMC |
|
|---|
Mechanical data
| Housing | rectangular | |
|---|---|---|
| Dimensions [mm] | 36 x 60 x 10 | |
| Material | ABS reinforced glass-fiber | |
| Lens material |
|
Displays / operating elements
| Display |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connection | Connector: 1 x M8; coding: A |
|---|
Diagrams and graphs
|

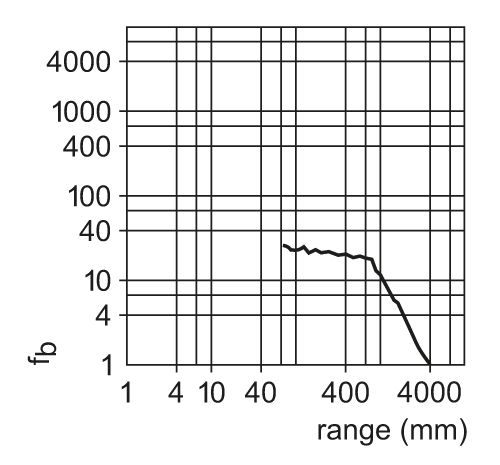

excess gain graph
|
|
|---|
