OL5009

Diffuse reflection sensor

OL5009

OLT-FPKG/US-100

Diffuse reflection sensor

OL5009

OLT-FPKG/US-100

Article no longer available - archive entry

Alternative articles: O5H500 + E21122 Product comparison: OL5009 / O5H500 When selecting an alternative article and accessories please note that technical data may differ!

Product characteristics

Type of light	Infrared light
Housing	rectangular

Application

System	Function check output
Function principle	Diffuse reflection sensor

Electrical data

Operating voltage [V]	10...36 DC
Current consumption [mA]	< 37
Protection class	II
Reverse polarity protection	yes
Type of light	Infrared light
Wave length [nm]	880

Outputs

Electrical design	PNP
Output function	light-on/dark-on mode; (configurable)
Max. voltage drop switching output DC [V]	2.5
Function check output	yes
Max. voltage drop of function check output [V]	3.5
Max. current load for function check output [mA]	10
Permanent current rating of switching output DC [mA]	100; (200 (...50 °C))
Switching frequency DC [Hz]	500
Short-circuit protection	yes
Type of short-circuit protection	yes (non-latching)
Overload protection	yes

Monitoring range

Range [mm]	1...1000; (white paper 200 x 200 mm 90 % remission)
Range adjustable	yes
Max. light spot diameter [mm]	300
Light spot dimensions refer to	at maximum range

Operating conditions

Ambient temperature [°C]	-25...80
Protection	IP 67

Tests / approvals

EMC

EN 60947-5-2
EN 55011	class B

Mechanical data

Housing

rectangular

Dimensions [mm]

75 x 27 x 62

Material

PA; PBT

Lens material

PMMA

Displays / operating elements

Display

Switching status	1 x LED, yellow
Power	1 x LED, green
Function	1 x LED, red

Remarks

Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A

Diagrams and graphs

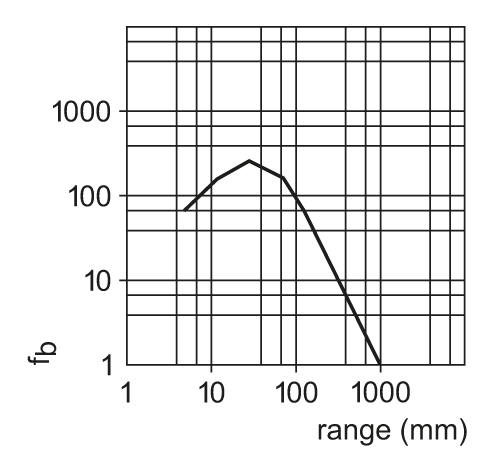

excess gain graph

ifm efector, inc. • 1100 Atwater Drive • Malvern • PA 19355 — We reserve the right to make technical alterations without prior notice. — EN-US — OL5009-00 — 03.03.2008 —
