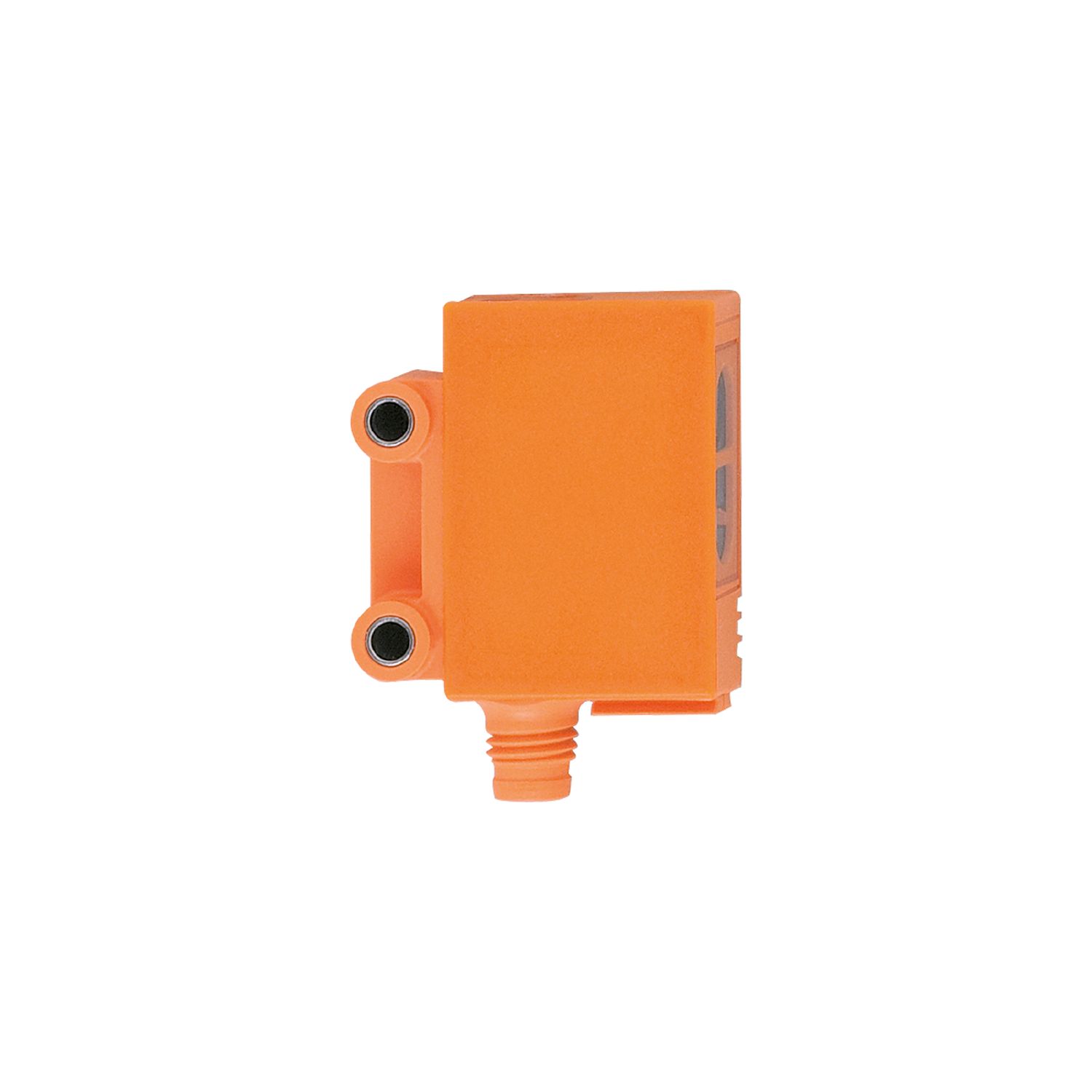

Diffuse reflection sensors with background suppression
OJH200
OJH-HPKG/SO/AS
Diffuse reflection sensors with background suppression
OJH200
OJH-HPKG/SO/AS
- Particularly compact housing for use where space is restricted
- Precise background suppression
- Visible red light for simple alignment
- Ready for operation immediately thanks to fixed setting
- Fast mounting by means of mounting holes with robust stainless steel sleeve
Product characteristics
| Type of light | red light |
|---|---|
| Housing | rectangular |
Application
| System | Background suppression |
|---|---|
| Function principle | Diffuse reflection sensor |
Electrical data
| Operating voltage [V] | 10...30 DC |
|---|---|
| Current consumption [mA] | 25 |
| Protection class | III |
| Reverse polarity protection | yes |
| Type of light | red light |
| Wave length [nm] | 660 |
Outputs
| Electrical design | PNP |
|---|---|
| Output function | light-on mode |
| Max. voltage drop switching output DC [V] | 2.5 |
| Permanent current rating of switching output DC [mA] | 200 |
| Switching frequency DC [Hz] | 1000 |
| Short-circuit protection | yes |
| Type of short-circuit protection | yes (non-latching) |
| Overload protection | yes |
Monitoring range
| Range [mm] | < 100; (fixed) |
|---|---|
| Range adjustable | no |
| Max. light spot diameter [mm] | 13 |
| Light spot dimensions refer to | at maximum range |
| Background suppression available | yes |
Operating conditions
| Ambient temperature [°C] | -25...60 |
|---|---|
| Protection | IP 67 |
Tests / approvals
| EMC |
|
||
|---|---|---|---|
| MTTF [years] | 551 |
Mechanical data
| Weight [g] | 15.7 | |
|---|---|---|
| Housing | rectangular | |
| Dimensions [mm] | 35 x 11 x 24 | |
| Material | ABS; SEPS | |
| Lens material |
|
|
| Lens alignment | Side sensing |
Displays / operating elements
| Display |
|
|---|
Remarks
| Remarks |
|
|
|---|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connection | Connector: 1 x M8; coding: A |
|---|
ifm efector, inc. • 1100 Atwater Drive • Malvern • PA 19355 — We reserve the right to make technical alterations without prior notice. — EN-US — OJH200-01 — 13.04.2023 —
OJH200 –
OJH-HPKG/SO/AS
- Receiver in upper lens
- transmitter in lower lens
Electrical connection
Connector: 1 x M8; coding: A
